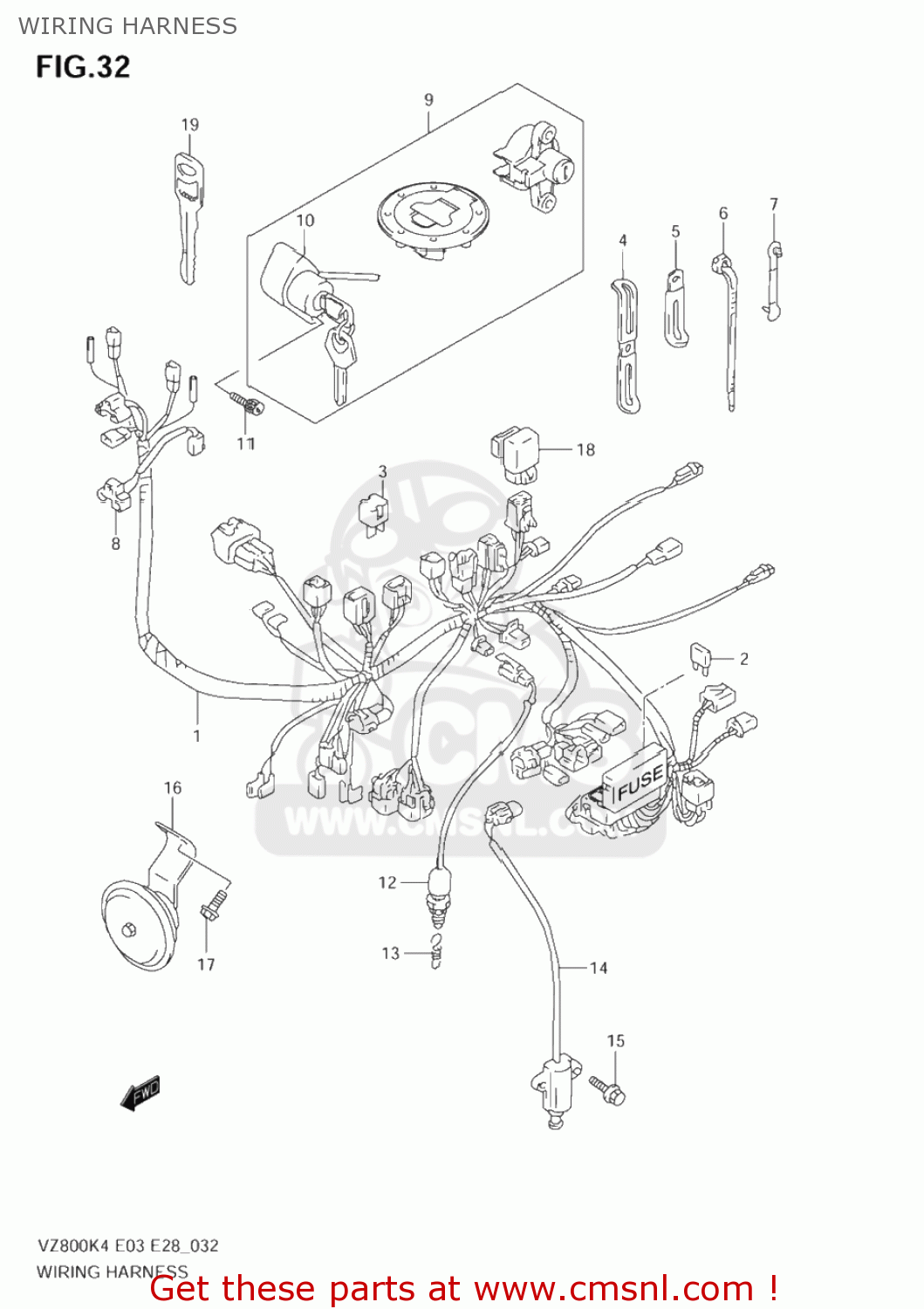

WIRING HARNESS

ref

part #

description

quantity

1

3661048EA0
ref: 1

HARNESS,WIRING

€ 0.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

3280016A00
ref: 3

RECTIFIER ASSY

€ 10.50

4

3665105301
ref: 4

CLAMP,STARTER MOTOR LEAD

€ 5.00

5-1

0940406429
ref: 5-1

CLAMP(L:45)

€ 2.50

5-2

0940406431
ref: 5-2
09404-06432

CLAMP(L:65)

€ 2.50

6-1

0940714403
ref: 6-1

CLAMP(L:125)

€ 2.50

6-2

0940718402
ref: 6-2

CLAMP(L:165)

€ 2.50

7

0940703401
ref: 7

CLAMP(L:33)

€ 3.50

8

3685330500
ref: 8

LEAD WIRE,HEADLAMP

€ 13.00

9-1

3700048830
ref: 9-1

LOCK SET

€ 300.50

9-2

3700048840
ref: 9-2

LOCK SET

€ 0.00

10

3711010F00
ref: 10

SWITCH ASSY,IGNITION

€ 87.50

11

0910606078
ref: 11

BOLT(6X15)

€ 3.00

12

3774031D00
ref: 12

SWITCH ASSY,STOP LAMP

€ 20.50

13

0944306046
ref: 13

SPRING

€ 3.50

14

3784012X50
ref: 14

SWITCH ASSY,SIDE STAND WARNING

€ 76.00

15

0155006163
ref: 15
01550-0616A

BOLT

€ 2.50

16

3850048E00
ref: 16

HORN ASSY

€ 92.50

17

0155006123
ref: 17
01550-0612A

BOLT

€ 2.50

18

3874024X50
ref: 18

RELAY ASSY

€ 37.50

19

3714648E00
ref: 19
37146-48E10

KEY,BLANK

€ 21.00
