FRONT CYLINDER HEAD
VZ800 MARAUDER 2004 (K4) USA (E03)

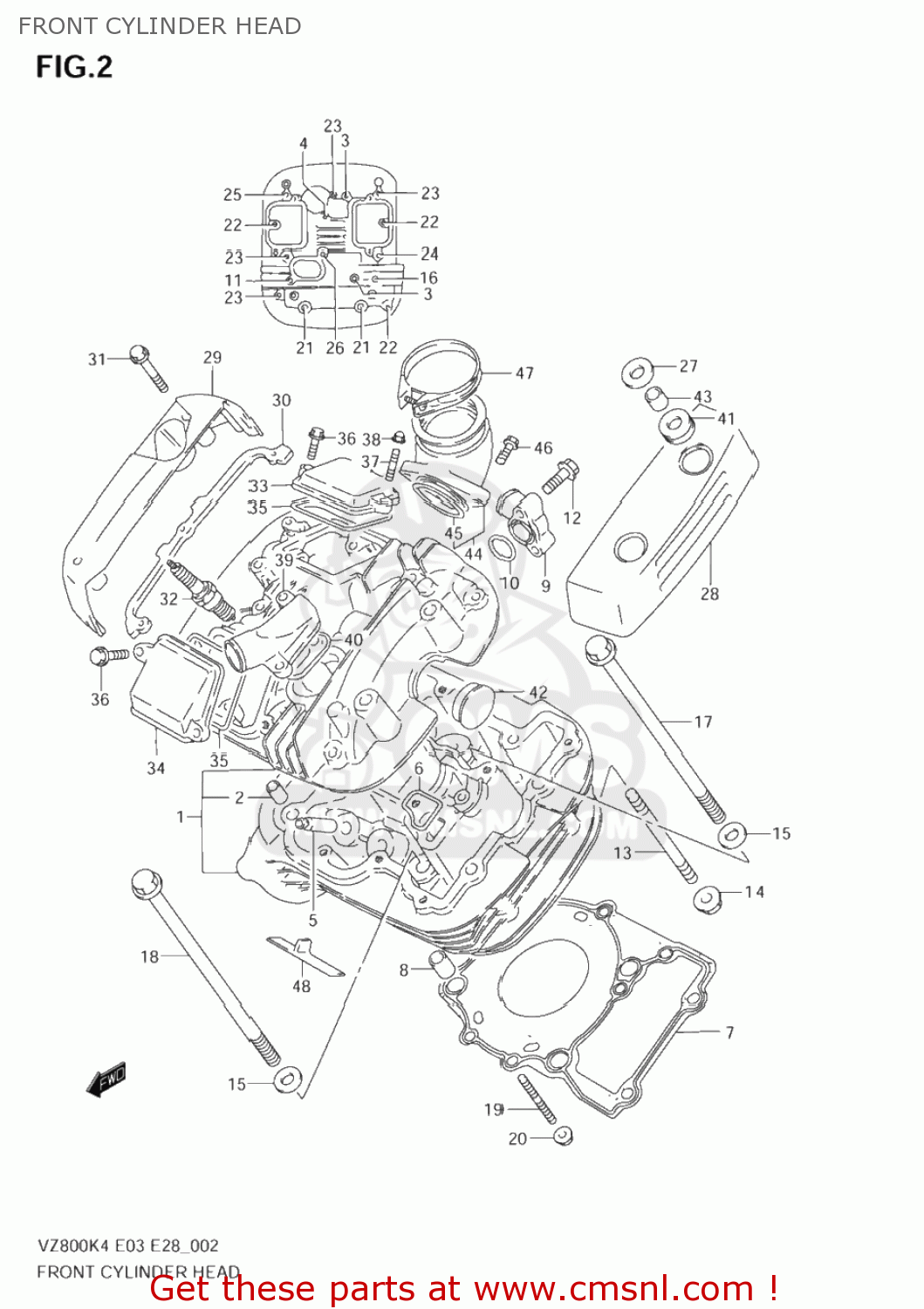

Front cylinder head diagram VZ800 MARAUDER 2004 (K4) USA (E03)
FRONT CYLINDER HEAD VZ800 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110148E60
ref: 1
HEAD ASSY,CYLINDER FR
€ 843.50
2
0920611004
ref: 2
PIN(8.4X11X14)
€ 6.00
3
0910306101
ref: 3
BOLT(6X50)
€ 2.00
4
0910306102
ref: 4
BOLT(6X55)
€ 2.50
5
1111538A71
ref: 5
11115-41F70
GUIDE,VALVE
€ 18.50
6
1112338A00
ref: 6
GASKET,CYLINDER HEAD WATER (NAS)
€ 2.50
7
1114145C00
ref: 7
GASKET,CYLINDER HEAD FR (NAS)
€ 51.50
8
0421113189
ref: 8
PIN
€ 2.50
9
1116945C10
ref: 9
UNION,CYLINDER HEAD WATER
€ 28.50
10
0928018004
ref: 10
O RING(D:2.4,ID:17.8)
€ 5.50
11
0155006203
ref: 11
01550-0620A
BOLT
€ 2.50
12
0154706253
ref: 12
01547-0625B
SCREW
€ 2.50
13
0910808144
ref: 13
BOLT,STUD
€ 4.50
14
0831610083
ref: 14
08316-1008B
NUT
€ 3.00
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
€ 2.50
16
0910308040
ref: 16
BOLT(8X140)
€ 4.00
17
0910310133
ref: 17
BOLT(10X155)
€ 7.50
18
0910310134
ref: 18
BOLT(10X165)
€ 7.50
19
0142106408
ref: 19
01421-0640A
STUD BOLT
€ 2.50
20
0831610063
ref: 20
08316-1006B
NUT
€ 2.50
21
0910308180
ref: 21
BOLT(8X245)
€ 13.00
22
0155006253
ref: 22
01550-0625A
BOLT
€ 2.50
23
0155006303
ref: 23
01550-0630A
BOLT
€ 2.50
24
0712006303
ref: 24
07120-0630B
BOLT
€ 3.00
25
0155006403
ref: 25
01550-0640A
BOLT
€ 2.00
26
0910306102
ref: 26
BOLT(6X55)
€ 2.50
27
0916008130
ref: 27
WASHER(8.5X24X1.6)
€ 2.00
28
1117148E00
ref: 28
CAP,CYL HEAD COVER,FL & RR
€ 75.00
29
1117248E00
ref: 29
CAP,CYLINDER HEAD COVER,F-R
€ 84.50
30
1127238A00
ref: 30
CUSHION,FR,R CAP
€ 10.50
31
0910306193
ref: 31
BOLT(6X40)
€ 3.00
32-1
0948200334
ref: 32-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
32-2
0948200335
ref: 32-2
PLUG,SPARK(X24EPR-U9)
€ 4.00
32-3
0948200354
ref: 32-3
PLUG,SPARK(DPR7EA-9)
€ 4.00
32-4
0948200355
ref: 32-4
09482-00354
SPARK PLUG X22E
€ 4.00
32-5
0948200330
ref: 32-5
PLUG,SPARK(DPR9EA-9)
€ 4.00
32-6
0948200331
ref: 32-6
PLUG,SPARK(X27EPR-U9)
€ 4.00
33
1117538A11
ref: 33
CAP,INSPECTION INTAKE
€ 14.50
34
1117638A11
ref: 34
CAP,INSPECTION EXHAUST
€ 14.50
35
1117738A00
ref: 35
GASKET,INSPECTION CAP (NAS)
€ 5.00
36
0154706203
ref: 36
01547-0620B
SCREW
€ 2.50
37
0910806102
ref: 37
BOLT,STUD
€ 3.00
38
0831320063
ref: 38
08313-2006A
NUT
€ 2.00
39
1118145C10
ref: 39
UNION,WATER OUTLET
€ 33.00
40
1118238A00
ref: 40
GASKET,WATER OUTLET UNION (NAS)
€ 2.00
41
0932013015
ref: 41
CUSHION
€ 3.00
42
0924130004
ref: 42
PLUG(OD:30)
€ 6.50
43
0930108007
ref: 43
BUSH
€ 4.00
44
1310145C00
ref: 44
PIPE ASSY,INTAKE FR
€ 98.00
45
0928040010
ref: 45
O RING(D:2.4,ID:39.7)
€ 3.50
46
0212206203
ref: 46
02122-0620A
SCREW
€ 2.00
47
0940252501
ref: 47
CLAMP
€ 9.00
48
1117938A00
ref: 48
PLATE,HEAD COVER RR
€ 7.50
