CYLINDER

VZ800 MARAUDER 2004 (K4) USA (E03)

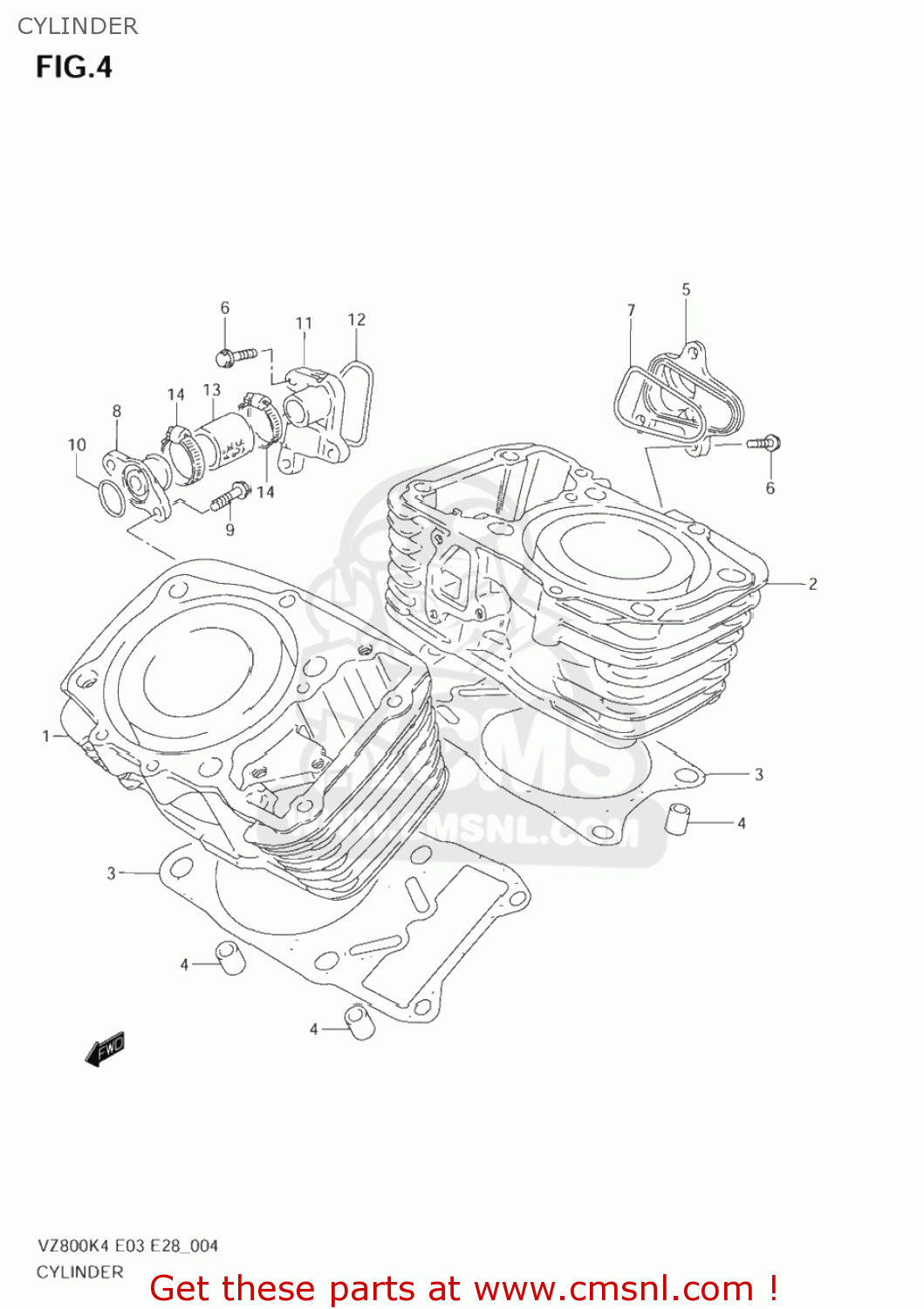

Cylinder diagram VZ800 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1121048E500F0
ref: 1

CYLINDER,FR

€ 458.50

1122048E500F0
ref: 2

CYLINDER,RR

€ 458.50

1124145C20
ref: 3

GASKET,CYLINDER (NAS)

€ 16.50

0421113189
ref: 4

PIN

€ 2.50

1123748E00
ref: 5

CHAMBER,WATER INLET

€ 29.00

0154706203
ref: 6
01547-0620B

SCREW

€ 2.50

1124738A00
ref: 7

O RING,INLET WATER CHAMBER

€ 3.00

1123545C10
ref: 8
11235-41F00

UNION,WATER INLET

€ 16.00

0154706163
ref: 9
01547-0616B

BOLT

€ 2.50

0928016005
ref: 10

O RING(D:2.4,ID:15.8)

€ 1.50

1123645C10
ref: 11

CHAMBER,WATER OUTLET

€ 26.50

1124638A00
ref: 12

O RING,OUTLET WATER CHAMBER

€ 4.50

1785101A00
ref: 13

HOSE,RADIATOR INLET

€ 17.50

0940228511
ref: 14

CLAMP

€ 8.50
