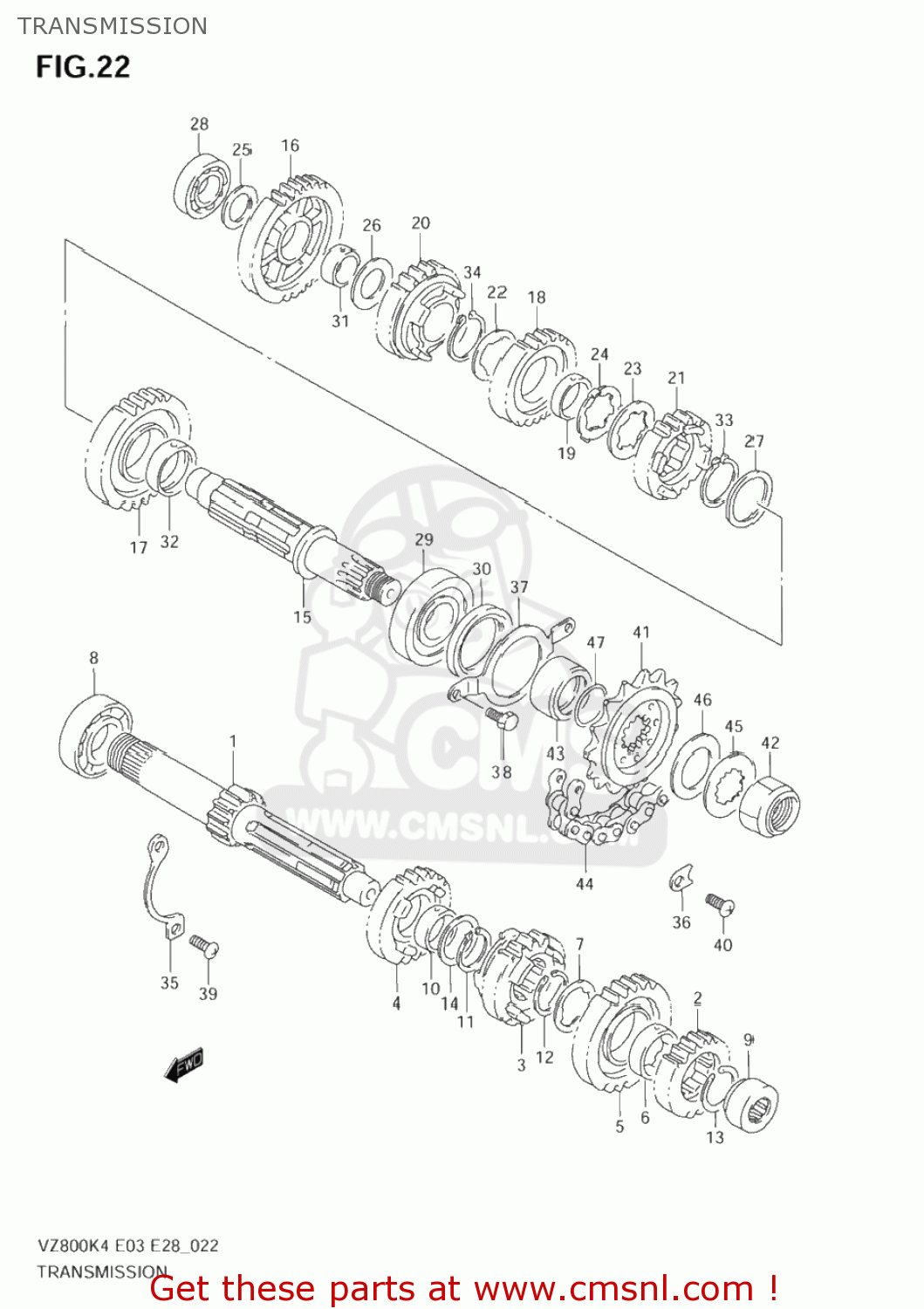

TRANSMISSION

ref

part #

description

quantity

1

2412148E51
ref: 1

SHAFT,COUNTER

€ 160.50

2

2422144B20
ref: 2

GEAR,2ND DRIVE(NT:19)

€ 103.50

3

2423144B02
ref: 3

GEAR,3RD DRIVE

€ 89.00

4

2424144B01
ref: 4

GEAR,4TH DRIVE(NT:23)

€ 94.00

5

2425144B10
ref: 5

GEAR,5TH DRIVE(NT:25)

€ 102.00

6

2425238A10
ref: 6

BUSH,6TH DRIVE GEAR

€ 10.50

7

0916725021
ref: 7

WASHER,LOCK

€ 3.00

8

0926225080
ref: 8

BEARING(25X62X17)

€ 21.50

9

0926320084
ref: 9

BEARING(20X33X16)

€ 45.50

10

2425219F00
ref: 10

BUSH

€ 9.50

11

0938025003
ref: 11

RING,SNAP

€ 3.00

12

0938025003
ref: 12

RING,SNAP

€ 3.00

13

0938025013
ref: 13

CIRCLIP

€ 3.00

14

0821125351
ref: 14

WASHER

€ 3.00

15

2413048E02
ref: 15

SHAFT,DRIVE

€ 0.00

16

2431144B10
ref: 16

GEAR,1ST DRIVEN(NT:32)

€ 114.50

17

2432144B20
ref: 17

GEAR,2ND DRIVEN(NT:30)

€ 115.50

18

2433144B01
ref: 18

GEAR,3RD DRIVEN(NT:24)

€ 124.00

19

2433227A00
ref: 19

BUSH

€ 13.50

20

2434144B02
ref: 20

GEAR,4TH DRIVEN(NT:22)

€ 102.50

21

2435144B10
ref: 21

GEAR,5TH DRIVEN(NT:20)

€ 85.00

22

0916728001
ref: 22

WASHER,LOCK

€ 3.00

23

0916728002
ref: 23

WASHER,LOCK

€ 3.00

24

0916928001
ref: 24

WASHER

€ 3.00

25

0918120223
ref: 25

SHIM(20X32X1)

€ 3.00

26

0918122223
ref: 26

SHIM(22X34X1)

€ 3.00

27

0918128167
ref: 27

SHIM(28X36X1)

€ 5.00

28

0926220059
ref: 28

BEARING(20X42X12)

€ 14.50

29

0926225125
ref: 29

BEARING(25X62X17)

€ 49.00

30

0928336003
ref: 30

SEAL,OIL(36X50X6)

€ 12.00

31

2431202F00
ref: 31

BUSH

€ 19.50

32

0930028002
ref: 32

BUSH(28X32X11)

€ 15.50

33

0833131286
ref: 33
08331-3128A

CIRCLIP

€ 2.50

34

0833131286
ref: 34
08331-3128A

CIRCLIP

€ 2.50

35

2474138A00
ref: 35

RETAINER,CNTR SHAFT BEARING

€ 4.00

36

2474244B00
ref: 36

RETAINER

€ 3.00

37

2475148E00
ref: 37

RETAINER,DRIVE SHAFT OIL SEAL

€ 4.00

38

0150006103
ref: 38
01500-0610B

BOLT

€ 2.00

39

0211206123
ref: 39
02112-0612A

SCREW

€ 1.50

40

0212206123
ref: 40
02122-0612A

SCREW

€ 3.00

41

2751017C10
ref: 41

SPROCKET,ENGINE(NT:15)

€ 67.00

42

2752148E00
ref: 42

NUT,ENGINE SPROCKET

€ 36.00

43

2753124B00
ref: 43

SPACER,FR PULLEY

€ 18.50

44

2760019C00116
ref: 44

CHAIN(DID50VA2,116L)

€ 225.00

45

0916725019
ref: 45

WASHER,LOCK

€ 2.50

46

0916025070
ref: 46

WASHER(25.2X42X3.2)

€ 4.50

47

0928024010
ref: 47

O RING(D:2.4,ID:23.7)

€ 5.50
