HANDLE SWITCH

VZ800 MARAUDER 2004 (K4) USA (E03)

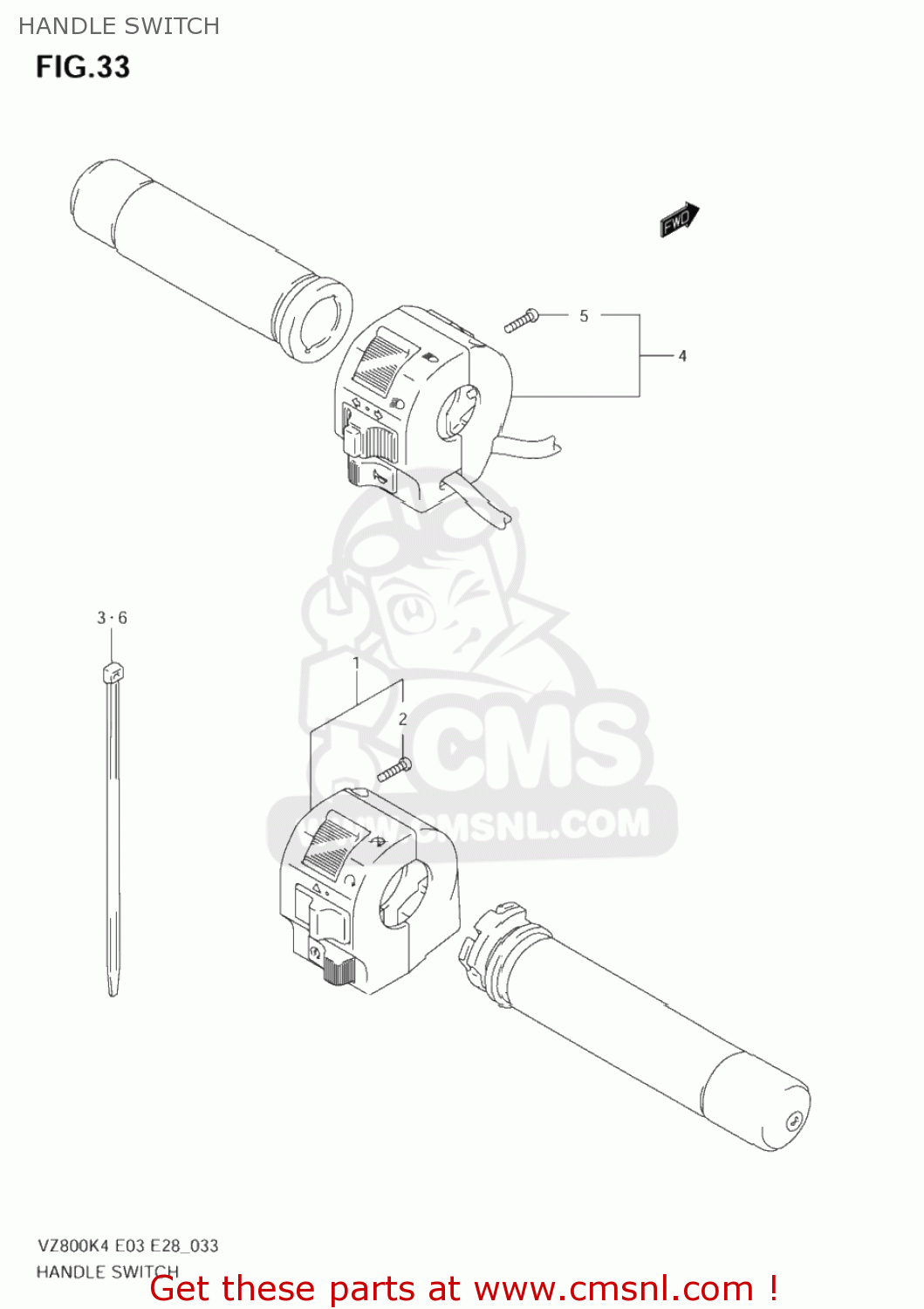

Handle switch diagram VZ800 MARAUDER 2004 (K4) USA (E03)

HANDLE SWITCH VZ800 MARAUDER 2004 (K4) USA (E03)

HANDLE SWITCH VZ800 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720048E90
ref: 1

SWITCH ASSY,HANDLE,R

€ 232.00

2

0912505048
ref: 2
09136-05041

SCREW(5X16)

€ 2.00

3

0940714407
ref: 3

CLAMP(L:145)

€ 4.00

4

3740041F10
ref: 4

SWITCH ASSY,HANDLE,L

€ 241.50

5

0912505048
ref: 5
09136-05041

SCREW(5X16)

€ 2.00

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00
