MAGNETO
VZ800 MARAUDER 2004 (K4) USA (E03)

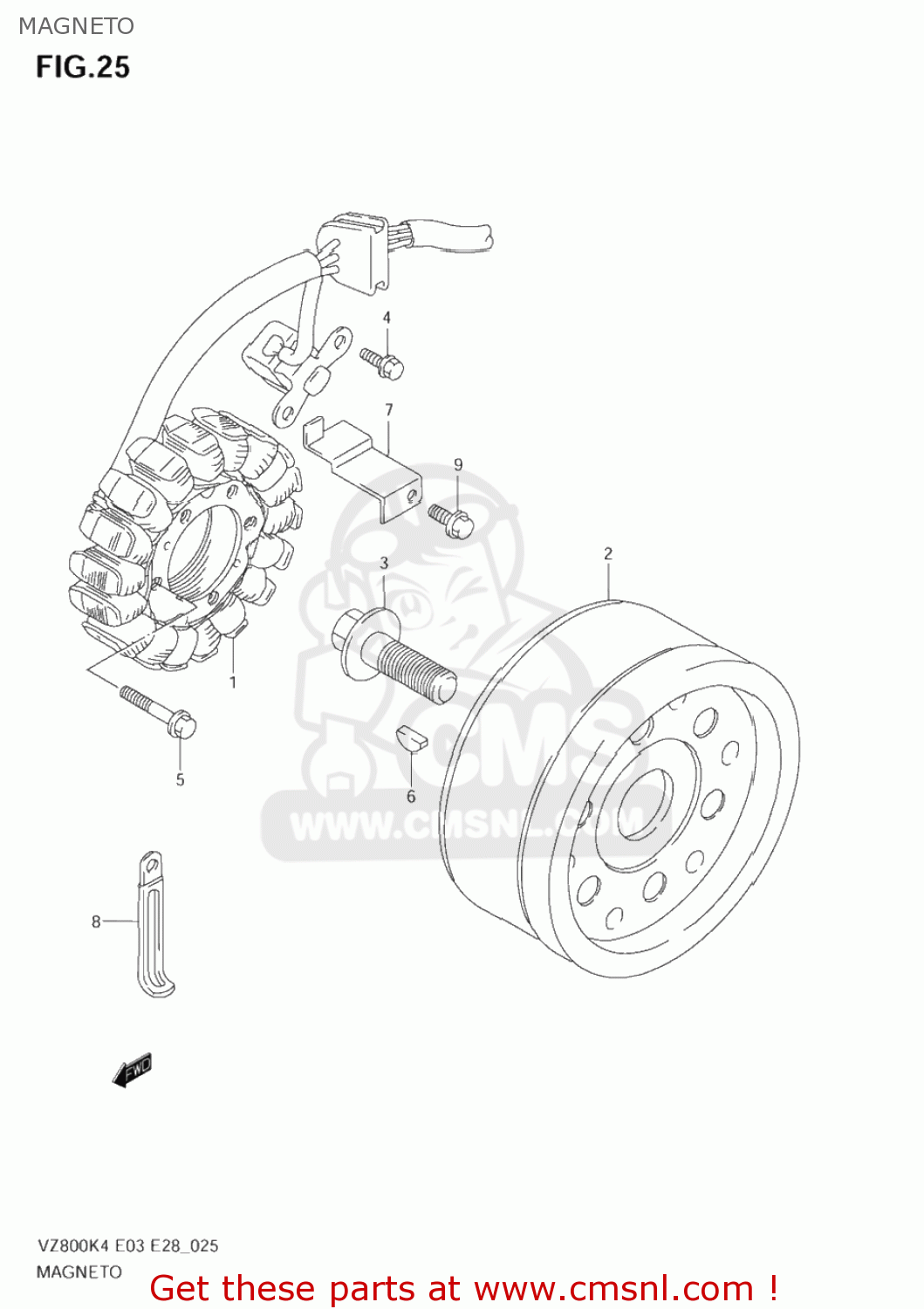

Magneto diagram VZ800 MARAUDER 2004 (K4) USA (E03)
MAGNETO VZ800 MARAUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210148E00
ref: 1
STARTER ASSY
€ 591.00
2
3210248E01
ref: 2
ROTOR ASSY
€ 339.00
3
0910314001
ref: 3
BOLT(14X43)
€ 7.00
4
0150005103
ref: 4
01500-0510B
BOLT
€ 1.50
5
0154706303
ref: 5
01547-0630B
BOLT,G/S SWITC
€ 3.00
6
0942004008
ref: 6
KEY
€ 3.50
7
3237145C00
ref: 7
CLAMP,MAGNETO LEAD WIRE
€ 3.00
8
0940406429
ref: 8
CLAMP(L:45)
€ 2.50
9
0154706103
ref: 9
01547-0610B
BOLT
€ 3.00
