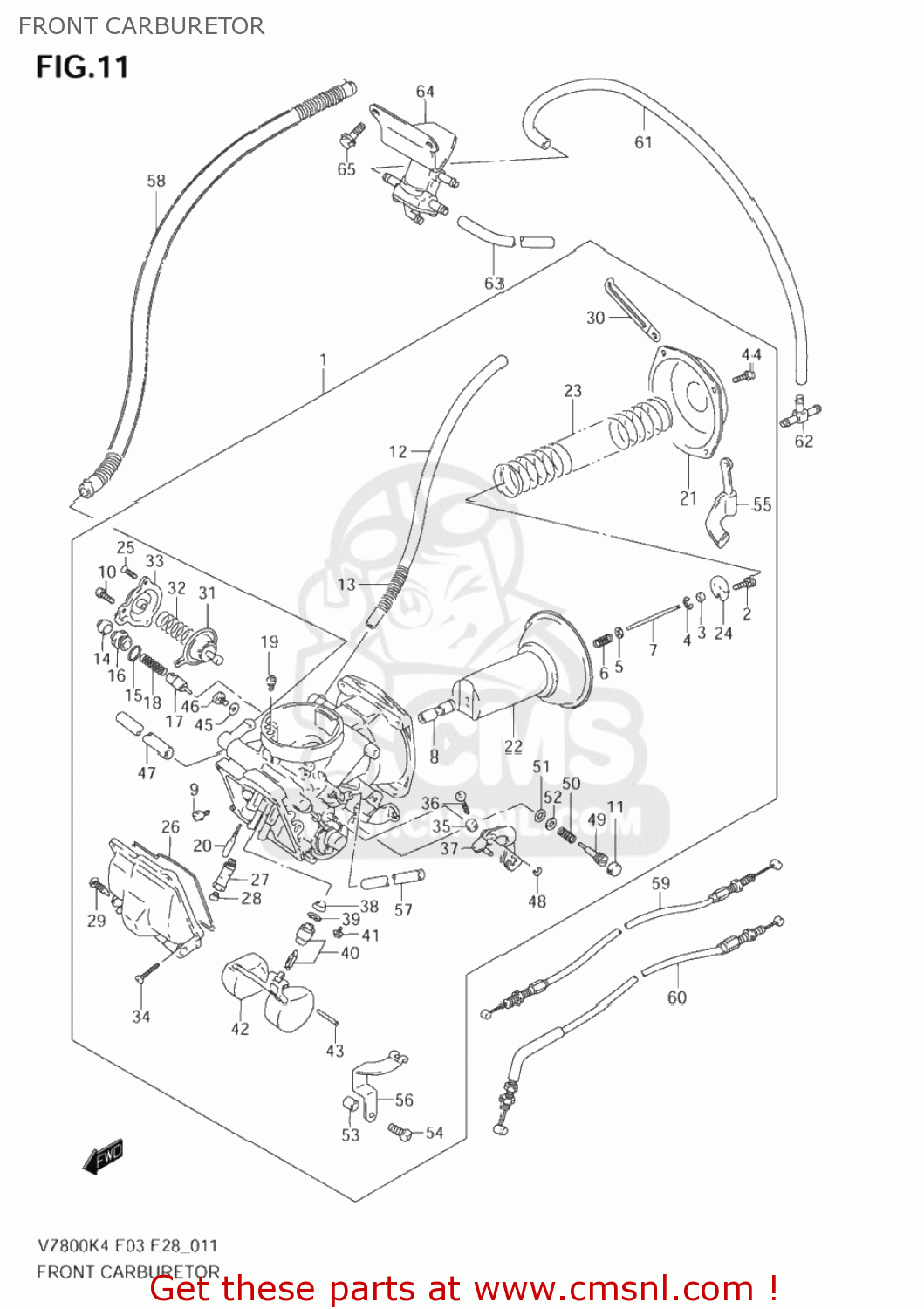

FRONT CARBURETOR

ref

part #

description

quantity

1-1

1321048EF0
ref: 1-1

CARBURETOR ASSY,FR

€ 0.00

1-2

1321048EG0
ref: 1-2

CARBURETOR ASSEMBLY,FRONT

€ 0.00

2

0211233073
ref: 2

SCREW

€ 0.00

3

1338747010
ref: 3

RING

€ 7.50

4

1339410010
ref: 4

CLIP

€ 4.50

5

1338203110
ref: 5

WASHER

€ 2.50

6

1338844030
ref: 6

SPRING

€ 6.00

7

1338348E80
ref: 7

NEEDLE,JET(5C43-1)

€ 0.00

8

0949400901
ref: 8

JET,NEEDLE(P-4M)

€ 0.00

9

1360538B00
ref: 9

SCREW

€ 7.50

10

0211204107
ref: 10

SCREW

€ 2.00

11

1328105A00
ref: 11

PLUG

€ 3.50

12-1

1368319B80
ref: 12-1

HOSE

€ 9.50

12-1

1368319B80
ref: 12-1

HOSE

€ 9.50

12-2

1368319B80
ref: 12-2

HOSE

€ 9.50

13

1368938A00
ref: 13

SPRING

€ 8.50

14

1368104010
ref: 14

CAP

€ 3.00

15

1327847090
ref: 15

O RING

€ 2.00

16

1341838A00
ref: 16

HOLDER,GUIDE

€ 11.50

17

1341101400
ref: 17

PLUNGER,STARTER

€ 11.50

18

1341708210
ref: 18

SPRING

€ 4.50

19

0949265005
ref: 19

JET,AIR(65)

€ 7.50

20

0949240021
ref: 20

JET,PILOT(40)

€ 17.50

21

1350238A00
ref: 21

COVER,DIAPHRAGM

€ 34.00

22

1350005A10
ref: 22

DIAPHRAGM,CARBURETOR

€ 178.00

23

1350338B00
ref: 23

SPRING,DIAPHRAGM

€ 12.00

24

1338937400
ref: 24

PLATE

€ 5.50

25

0212204103
ref: 25
02122-0410A

SCREW,UPPER

€ 2.50

26

1325138A00
ref: 26

O RING,FLOAT CHAMBER

€ 6.50

27

1338505A11
ref: 27

HOLDER,MAIN JET

€ 14.00

28

0949190011
ref: 28

JET,MAIN(90)

€ 17.50

29

1324713A00
ref: 29
13247-02340

SCREW,DRAIN

€ 5.50

30

0940406432
ref: 30

CLAMP(L:65)

€ 2.50

31

1348005A10
ref: 31

DIAPHRAGM ASSY

€ 54.50

32

1348145C10
ref: 32

SPRING

€ 5.50

33

1348438A00
ref: 33

COVER

€ 20.50

34

1360248B10
ref: 34

SCREW

€ 3.00

35

0831000047
ref: 35

NUT

€ 2.00

36

0211204307
ref: 36

SCREW

€ 0.00

37

1355445C20
ref: 37

LEVER ASSY

€ 38.50

38

1337619F00
ref: 38

FILTER

€ 6.50

39

1337435C00
ref: 39

O RING,NEEDLE VALVE SEAT

€ 6.00

40

1337039A00
ref: 40

VALVE ASSY,NEEDLE

€ 67.50

41

1360205A10
ref: 41

SCREW

€ 4.00

42

1325038B00
ref: 42

FLOAT

€ 32.00

43

1325420010
ref: 43

PIN,FLOAT

€ 3.00

44

0211205127
ref: 44

SCREW

€ 2.50

45

1352346110
ref: 45

GASKET,DRAIN PLUG (NAS)

€ 3.00

46

0912505122
ref: 46

SCREW(5X6)

€ 4.00

47

1368319B80
ref: 47

HOSE

€ 9.50

48

1341538300
ref: 48

E RING

€ 2.00

49

1327947070
ref: 49

SCREW,PILOT

€ 11.50

50

1326847070
ref: 50

SPRING

€ 5.00

51

1329529900
ref: 51

O RING,PILOT AIR SCREW

€ 4.00

52

1329129900
ref: 52

WASHER

€ 2.00

53

1333133E00
ref: 53

RING

€ 4.00

54

1360248E00
ref: 54

SCREW

€ 2.50

55

1362748E00
ref: 55

BRACKET

€ 14.50

56

1362748E10
ref: 56

BRACKET

€ 10.00

57

1368348E10
ref: 57

HOSE ASSY(5X8X125)

€ 0.00

58-1

1368348E00
ref: 58-1

HOSE ASSY

€ 40.00

58-2

1368348E10
ref: 58-2

HOSE ASSY(5X8X125)

€ 0.00

59

1364148E00
ref: 59

CABLE,IDLE SYNCRO

€ 20.00

60

1364248E00
ref: 60

CABLE,THROTTLE RETURN F-R

€ 25.00

61

1368402F10
ref: 61

HOSE

€ 22.00

62

1368548B00
ref: 62

NIPPLE

€ 9.00

63

0935550105600
ref: 63
44421-13ER0

HOSE(5X10X600)

€ 7.50

63

0935550105600
ref: 63
44421-13ER0

HOSE(5X10X600)

€ 7.50

64

1359048E00
ref: 64

VALVE,AIR VENT

€ 101.00

65

0155006123
ref: 65
01550-0612A

BOLT

€ 2.50

all assemblies
