REAR FENDER

VZ800 MARAUDER 2004 (K4) USA (E03)

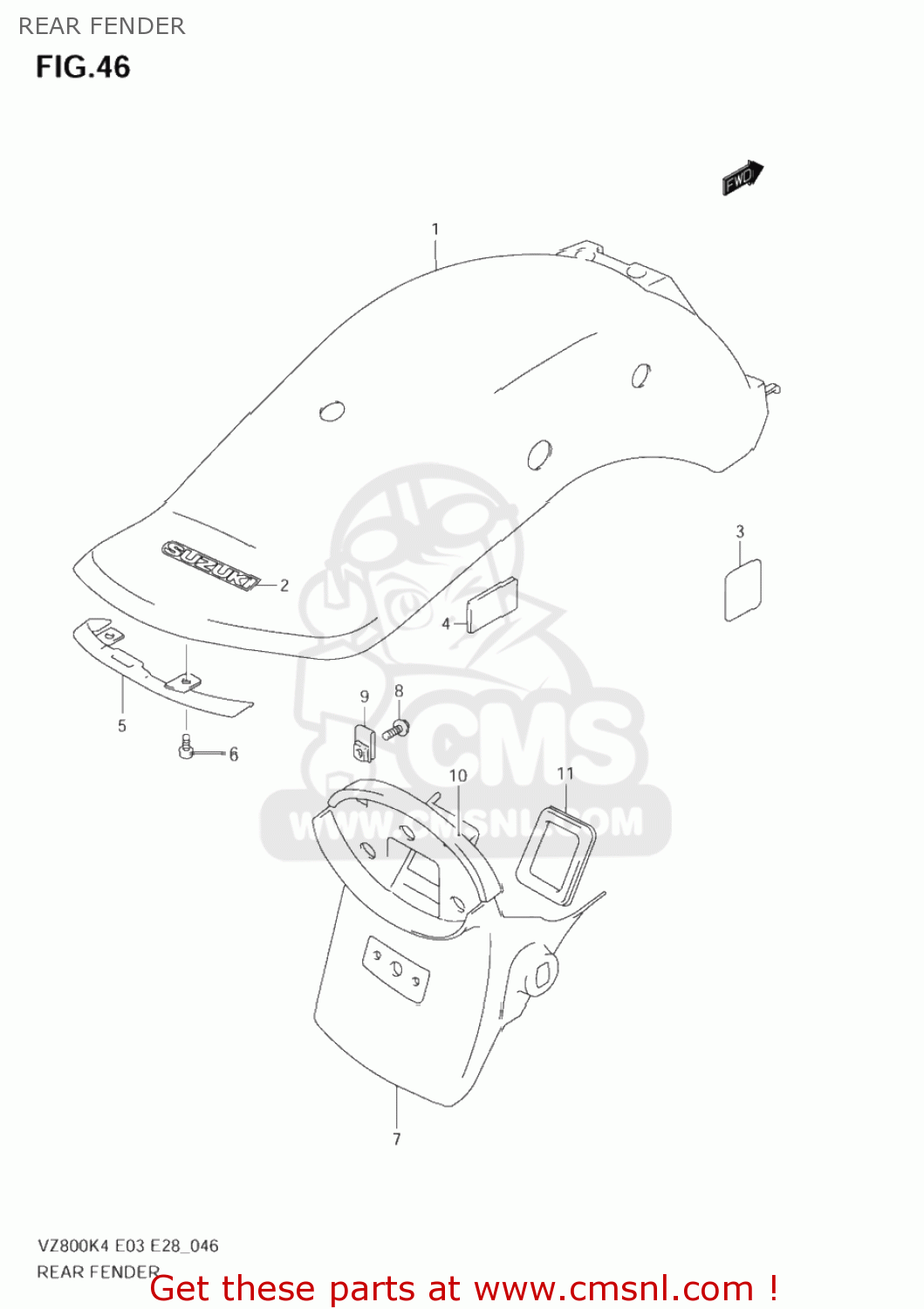

Rear fender diagram VZ800 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311048EB0YAY
ref: 1-1

FENDER,RR

€ 0.00

1-2

6311048EB0YBB
ref: 1-2

FENDER,RR

€ 0.00

2-1

6817126F00ACV
ref: 2-1

EMBLEM,SUZUKI

€ 5.50

2-2

6817126F00ALN
ref: 2-2

EMBLEM,SUZUKI

€ 0.00

6154494500
ref: 3

PAD

€ 2.00

0932013015
ref: 4

CUSHION

€ 3.00

6311248E00
ref: 5

COVER,RR FENDER RR

€ 8.50

0354105123
ref: 6
03541-0512A

SCREW

€ 2.00

6331148E00
ref: 7

EXTENSION,RR FENDER

€ 34.00

0216206163
ref: 8
02162-0616B

SCREW

€ 2.50

4715319C01
ref: 9

PLATE,FRAME COVER

€ 4.00

6331248E00
ref: 10

CUSHION,RR FENDER EXTENSION

€ 5.50

6319148E00
ref: 11

CAP,RR FENDER EXTENSION

€ 8.00
