CYLINDER

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

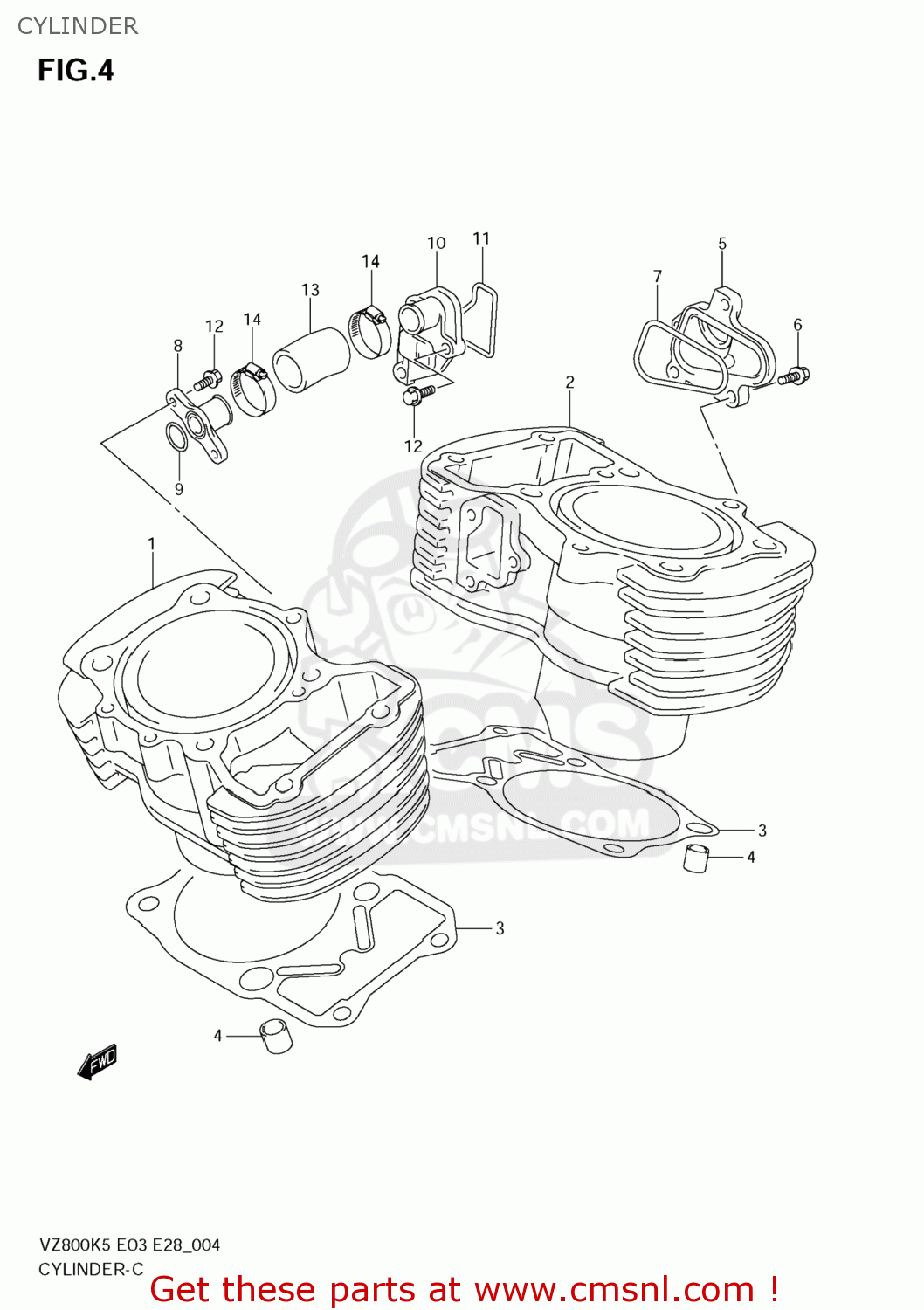

Cylinder diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

CYLINDER VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
CYLINDER VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
CYLINDER VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1121041F000F0
ref: 1
CYLINDER,FR
1121041F000F0
€ 669.00
2
1122041F000F0
ref: 2
CYLINDER,RR
€ 669.00
3
1124141F00
ref: 3
GASKET,CYLINDER (NAS)
1124141F00
€ 8.50
4
0421113189
ref: 4
PIN
0421113189
€ 2.50
5
1123741F00
ref: 5
CONNECTOR,CYLINDER INLET PIPE
€ 28.00
6
015470620A
ref: 6
BOLT
015470620A
€ 2.50
7
1124738A00
ref: 7
O RING,INLET WATER CHAMBER
1124738A00
€ 3.00
8
1123541F00
ref: 8
UNION,CYL INLET
1123541F00
€ 16.00
9
0928016005
ref: 9
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
10
1789241F00
ref: 10
UNION,CYL OUTLET
1789241F00
€ 20.00
11
1789941F00
ref: 11
O RING,CYL OUTLET UNION
1789941F00
€ 4.50
12
015470616A
ref: 12
BOLT
015470616A
€ 2.00
13
1785101A00
ref: 13
HOSE,RADIATOR INLET
1785101A00
€ 17.50
14
0940228513
ref: 14
CLAMP
0940228513
€ 6.50
