REAR CYLINDER HEAD (MODEL K5/K6/K7/K8)

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

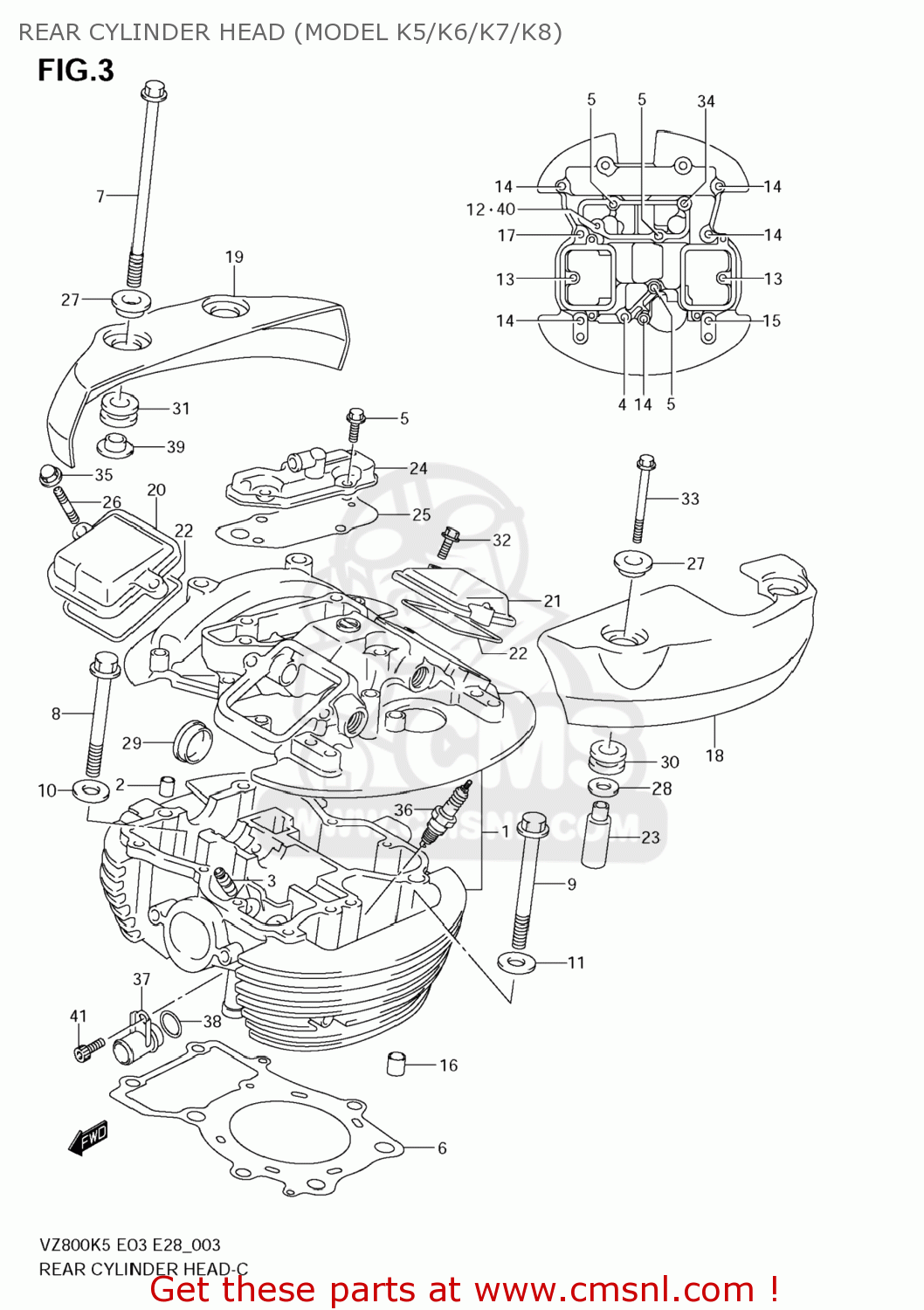

Rear cylinder head (model k5/k6/k7/k8) diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

REAR CYLINDER HEAD (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
REAR CYLINDER HEAD (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
REAR CYLINDER HEAD (MODEL K5/K6/K7/K8) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1110341FB0
ref: 1
HEAD ASSY,CYLINDER RR
€ 1,003.00
2
0920611004
ref: 2
PIN(8.4X11X14)
0920611004
€ 6.00
3
1111538A71
ref: 3
11115-41F70
GUIDE,VALVE
1111538A71
€ 18.50
4
0910306101
ref: 4
BOLT(6X50)
0910306101
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
0910306102
€ 2.50
6
1114241F00
ref: 6
GASKET,CYLINDER HEAD RR (NAS)
1114241F00
€ 27.50
7
0910308370
ref: 7
BOLT(8X250)
0910308370
€ 11.00
8
0910310133
ref: 8
BOLT(10X155)
0910310133
€ 7.50
9
0910310134
ref: 9
BOLT(10X165)
0910310134
€ 7.50
10
0916008130
ref: 10
WASHER(8.5X24X1.6)
0916008130
€ 2.00
11
0916010039
ref: 11
WASHER(10.5X22X2.3)
0916010039
€ 2.50
12
0910306102
ref: 12
BOLT(6X55)
0910306102
€ 2.50
13
015500625B
ref: 13
BOLT
015500625B
€ 2.50
14
015500630B
ref: 14
BOLT
015500630B
€ 2.00
15
015500640B
ref: 15
BOLT
015500640B
€ 2.00
16
0421113189
ref: 16
PIN
0421113189
€ 2.50
17
071200630B
ref: 17
BOLT
071200630B
€ 3.00
18
1117341FA0
ref: 18
CAP,CYLINDER HEAD COVER RR,L
€ 99.50
19
1117441F00
ref: 19
CAP,CYLINDER HEAD COVER RR
1117441F00
€ 103.00
20
1117538A11
ref: 20
CAP,INSPECTION INTAKE
1117538A11
€ 14.50
21
1117638A11
ref: 21
CAP,INSPECTION EXHAUST
1117638A11
€ 14.50
22
1117738A00
ref: 22
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
23
1117910F10
ref: 23
SPACER,CYL HEAD COVER CAP NO.2
1117910F10
€ 8.00
24
1118641FB0
ref: 24
COVER,BREATHER
€ 16.00
25
1118741F20
ref: 25
GASKET,BREATHER COVER (NAS)
1118741F20
€ 4.50
26
0910806102
ref: 26
BOLT,STUD
€ 3.00
27
0916006084
ref: 27
WASHER(6.5X18X1.6)
0916006084
€ 2.00
28
0916009016
ref: 28
WASHER(9.5X20X1)
0916009016
€ 2.00
29
0924130004
ref: 29
PLUG(OD:30)
0924130004
€ 6.50
30
0932009016
ref: 30
CUSHION
0932009016
€ 2.50
31
0932013015
ref: 31
CUSHION
0932013015
€ 3.00
32
015470620B
ref: 32
BOLT
015470620B
€ 2.50
33
0154706507
ref: 33
BOLT
0154706507
€ 2.50
34
015500620B
ref: 34
BOLT
015500620B
€ 2.50
35
0915906093
ref: 35
NUT
€ 2.00
36-1
0948200354
ref: 36-1
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
36-2
0948200330
ref: 36-2
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
36-3
0948200331
ref: 36-3
PLUG,SPARK(X27EPR-U9)
€ 4.00
36-4
0948200334
ref: 36-4
PLUG,SPARK(DPR8EA-9)
€ 4.00
36-5
0948200335
ref: 36-5
PLUG,SPARK(X24EPR-U9)
€ 4.00
37
1789141F10
ref: 37
UNION,CYL HEAD JOINT
1789141F10
€ 11.50
38
0928016005
ref: 38
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
39
0930108007
ref: 39
BUSH
0930108007
€ 4.00
40
0916806023
ref: 40
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
41
071300612B
ref: 41
BOLT
071300612B
€ 3.00
