OIL PUMP

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

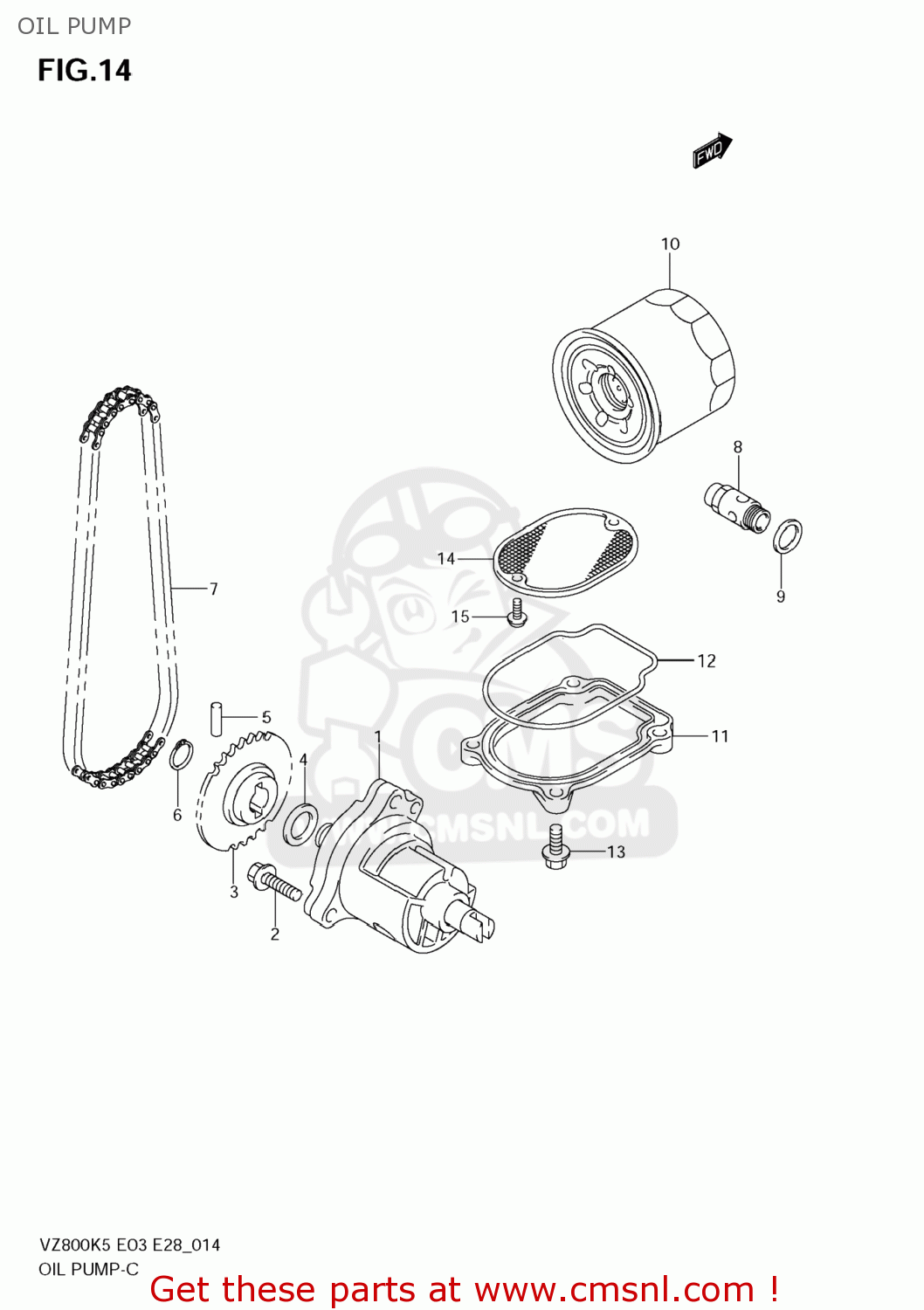

Oil pump diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

OIL PUMP VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

OIL PUMP VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1640038A01
ref: 1

PUMP ASSY,ENGINE OIL

€ 148.00

2

015470625A
ref: 2

BOLT

€ 2.50

3

1633138A10
ref: 3

SPROCKET,OIL PUMP DRIVEN

€ 29.00

4

0918112158
ref: 4

SHIM(12X20X0.5)

€ 2.00

5

0926105006
ref: 5

PIN(5X18)

€ 1.50

6

083313112A
ref: 6

CIRCLIP

€ 2.00

7

1631038A00
ref: 7

CHAIN,OIL PUMP DRIVE

€ 19.50

8

1644017C20
ref: 8

VALVE ASSY,OIL RELIEF

€ 39.00

9

0916816002
ref: 9

GASKET(16X22X2) (NAS)

€ 2.00

10-1

1651003G00X07
ref: 10-1
16510-07J00

FILTER ASSY,EN

€ 12.50

10-2

1651022H00
ref: 10-2

FILTER ASSY,EN

€ 33.50

11

1652338A00
ref: 11

CAP,OIL STRAINER

€ 19.50

12

1652838A00
ref: 12

O RING,OIL STRAINER CAP

€ 8.00

13

015470620A
ref: 13

BOLT

€ 2.50

14-1

1652038A00
ref: 14-1

STRAINER,ENGINE OIL

€ 7.50

14-2

1652038A10
ref: 14-2

STRAINER,ENGINE OIL

€ 5.50

15

021127512A
ref: 15

SCREW

€ 2.50
