STAND - REAR BRAKE

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

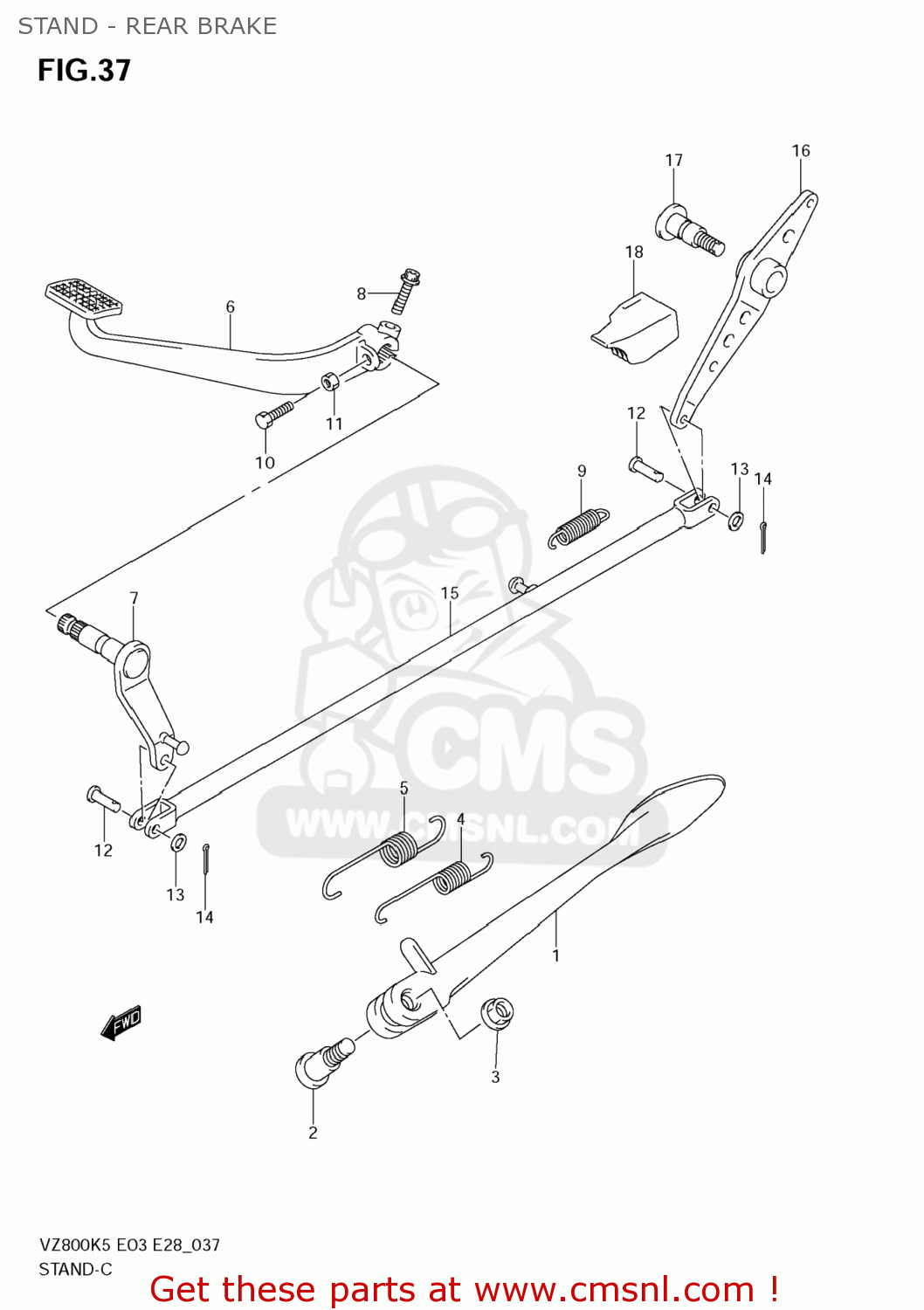

Stand - rear brake diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

STAND - REAR BRAKE VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

STAND - REAR BRAKE VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4231039G00
ref: 1

STAND,PROP

€ 170.50

2

0911110058
ref: 2

BOLT(10X37.5)

€ 6.00

3

4232103FK0
ref: 3

NUT,PROP STAND

€ 4.50

4

0944314066
ref: 4

SPRING

€ 5.00

5

0944319012
ref: 5

SPRING

€ 5.50

6

4311041F00
ref: 6

PEDAL,BRAKE

€ 71.00

7

4312041F00
ref: 7

ARM,BRAKE ROD

€ 40.00

8

071200625A
ref: 8

BOLT

€ 2.50

9

0944312049
ref: 9

SPRING

€ 18.50

10

0150006207
ref: 10

BOLT

€ 2.00

11

0831000067
ref: 11

NUT

€ 2.50

12-1

0920006037
ref: 12-1
09200-06068

PIN

€ 5.00

12-2

0920006068
ref: 12-2

PIN(6X18.2)

€ 5.00

13

083220106B
ref: 13

WASHER

€ 2.00

14

041112015A
ref: 14

PIN

€ 1.50

15

4313041F00
ref: 15

ROD,RR BRAKE FR

€ 38.50

16

4314041F00
ref: 16

LINK,RR BRAKE

€ 37.50

17

4314227C00
ref: 17

SHAFT,BRAKE PEDAL

€ 15.00

18

4315141F00
ref: 18

RUBBER,BRAKE LINK

€ 9.00
