FRAME COVER (VZ800ZK7/ZK8)

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

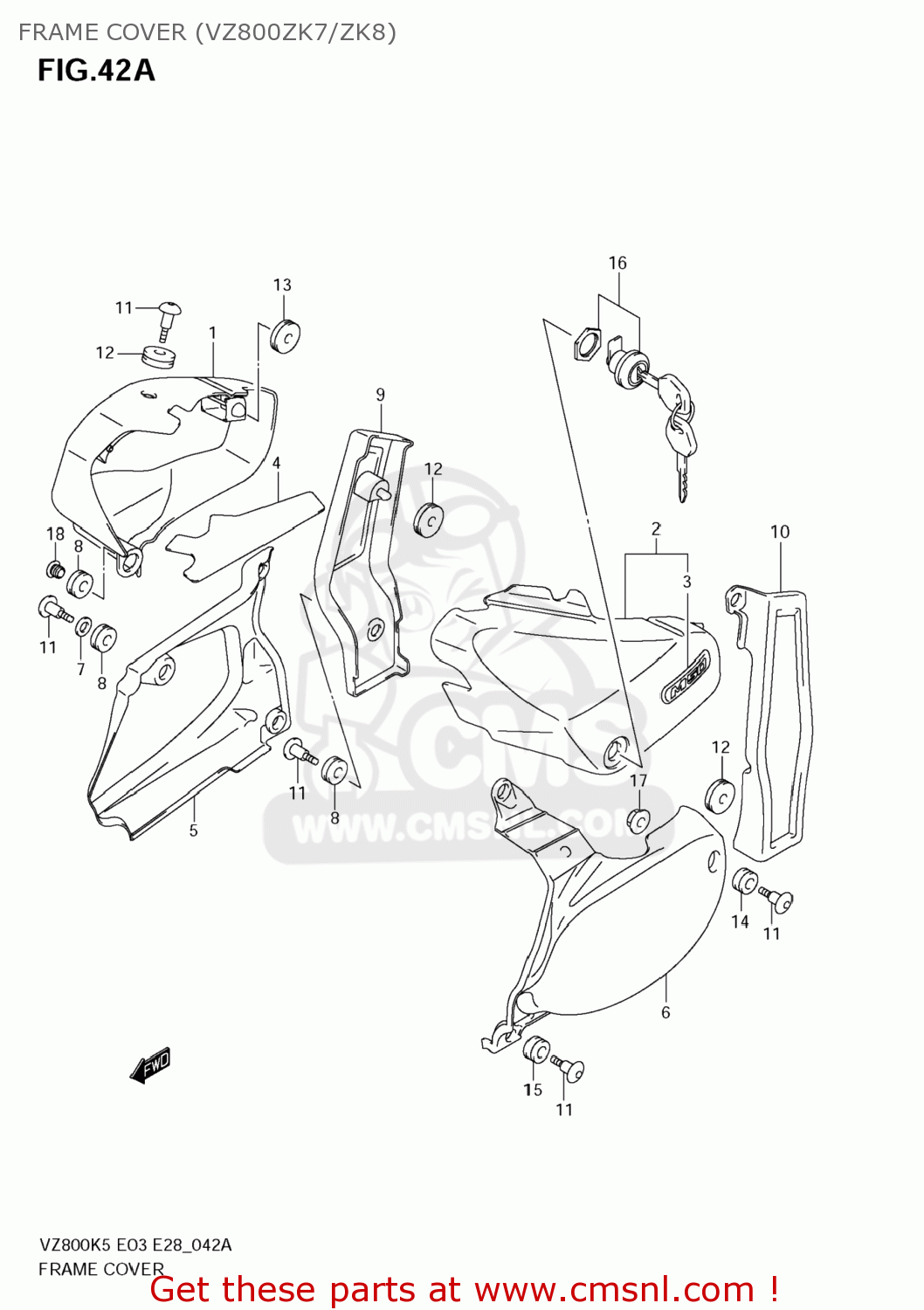

Frame cover (vz800zk7/zk8) diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

FRAME COVER (VZ800ZK7/ZK8) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
FRAME COVER (VZ800ZK7/ZK8) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
FRAME COVER (VZ800ZK7/ZK8) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
4711039G00YHG
ref: 1-1
COVER,SIDE,R(GRAY)
€ 131.50
1-2
4711039G10YHG
ref: 1-2
COVER,SIDE,R(GRAY)
€ 0.00
1-3
4711039G00YAY
ref: 1-3
COVER, FRAME RH (BLACK)
€ 144.00
1-4
4711039G10YAY
ref: 1-4
COVER, FRAME RH (BLACK)
€ 151.50
2-1
4721039G00YHG
ref: 2-1
COVER,SIDE,L(GRAY)
€ 116.00
2-2
4721039G00YAY
ref: 2-2
COVER,SIDE,L(BLACK)
€ 137.50
3
6813139G00
ref: 3
EMBLEM,M50
€ 0.00
4
4716641F00
ref: 4
SHIELD,FRAME COVER
4716641F00
€ 7.50
5
4713041F10
ref: 5
COVER,SIDE LWR,R
4713041F10
€ 137.00
6
4723141F10
ref: 6
COVER,SIDE LWR,L
4723141F10
€ 154.00
7
0916010123
ref: 7
WASHER(10.5X20X2.3)
0916010123
€ 2.00
8
0932008021
ref: 8
CUSHION
0932008021
€ 4.00
9
4714141F01019
ref: 9
COVER,SIDE RR,R
€ 55.50
10
4724141F00019
ref: 10
COVER,SIDE RR,L
4724141F00019
€ 55.50
11
0913906126
ref: 11
SCREW(6X20)
0913906126
€ 4.00
12
0932008018
ref: 12
CUSHION
0932008018
€ 4.00
13
0932008028
ref: 13
CUSHION
0932008028
€ 2.50
14
0932009501
ref: 14
CUSHION
0932009501
€ 2.00
15
0932009045
ref: 15
CUSHION
0932009045
€ 4.00
16
9570007860
ref: 16
LOCK SET,COVER
9570007860
€ 76.00
17
083161006B
ref: 17
NUT
083161006B
€ 2.50
18
0925009001
ref: 18
CAP(OD:14)
0925009001
€ 1.00
