FRAME COVER (MODEL K9)

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

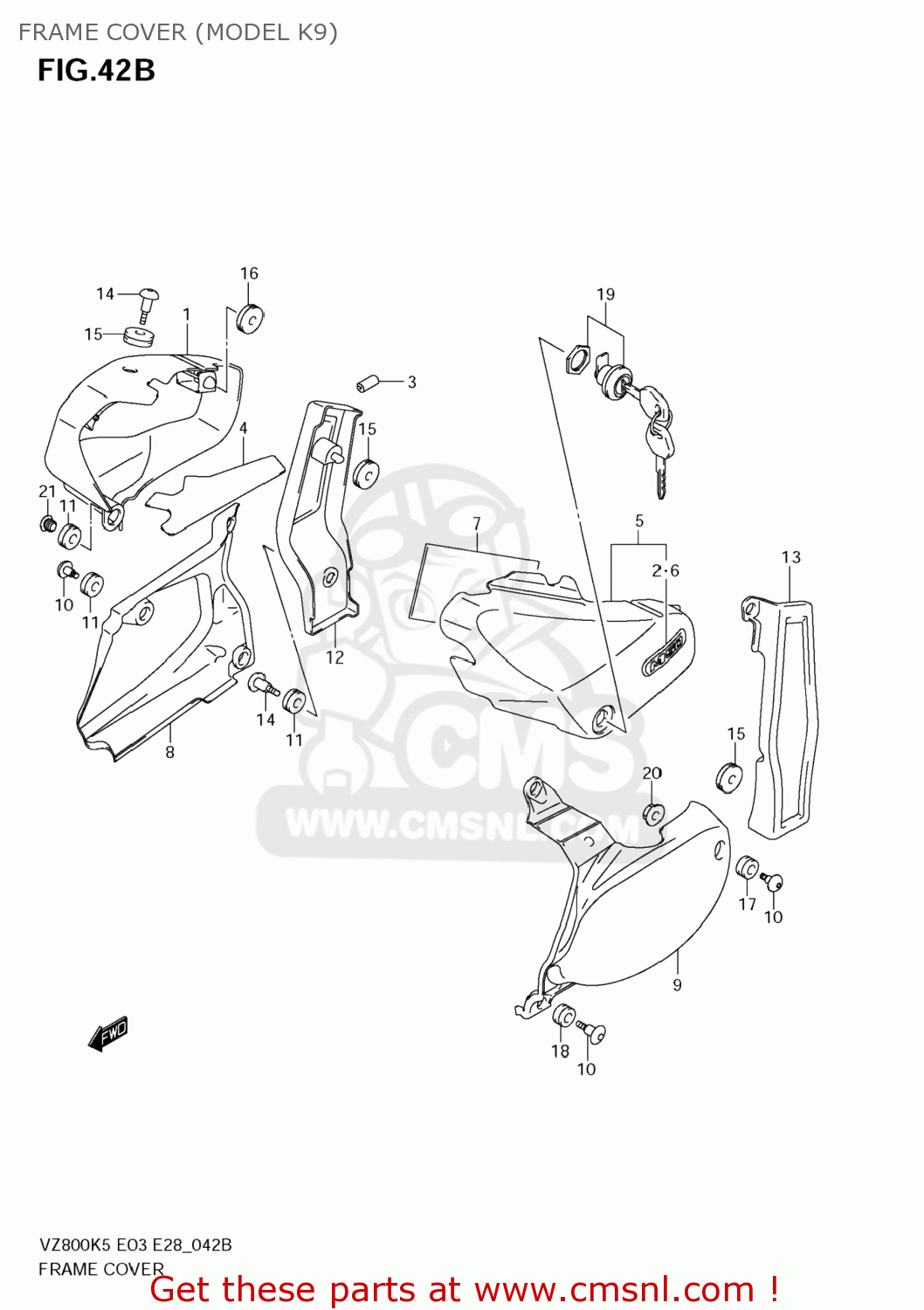

Frame cover (model k9) diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

FRAME COVER (MODEL K9) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

FRAME COVER (MODEL K9) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

4711039G60YAY
ref: 1-1

COVER,SIDE,R(BLACK)

€ 151.50

1-2

4711039G40YAY
ref: 1-2

COVER,SIDE,R(BLACK)

€ 151.50

2

6813139G00
ref: 2

EMBLEM,M50

€ 0.00

3

9463135F00
ref: 3

MOLDING

€ 3.00

4

4716641F00
ref: 4

SHIELD,FRAME COVER

€ 7.50

5

4721039G30YAY
ref: 5

COVER,SIDE,L(BLACK)

€ 151.50

6

6813139G00
ref: 6

EMBLEM,M50

€ 0.00

7

4721741F00
ref: 7

CUSHION,LUGGAGE BOX

€ 5.00

8

4713041F10
ref: 8

COVER,SIDE LWR,R

€ 137.00

9

4723141F10
ref: 9

COVER,SIDE LWR,L

€ 154.00

10

4713343H00
ref: 10

SCREW,SIDE COVER LWR,R

€ 4.50

11

0932008021
ref: 11

CUSHION

€ 4.00

12

4714141F01019
ref: 12

COVER,SIDE RR,R

€ 55.50

13

4724141F00019
ref: 13

COVER,SIDE RR,L

€ 55.50

14

0913906126
ref: 14

SCREW(6X20)

€ 4.00

15

0932008018
ref: 15

CUSHION

€ 4.00

16

0932008028
ref: 16

CUSHION

€ 2.50

17

0932009501
ref: 17

CUSHION

€ 2.00

18

0932009045
ref: 18

CUSHION

€ 4.00

19

9570007860
ref: 19

LOCK SET,COVER

€ 76.00

20

083161006B
ref: 20

NUT

€ 2.50

21

0925009001
ref: 21

CAP(OD:14)

€ 1.00
