FUEL TANK (MODEL K9)

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

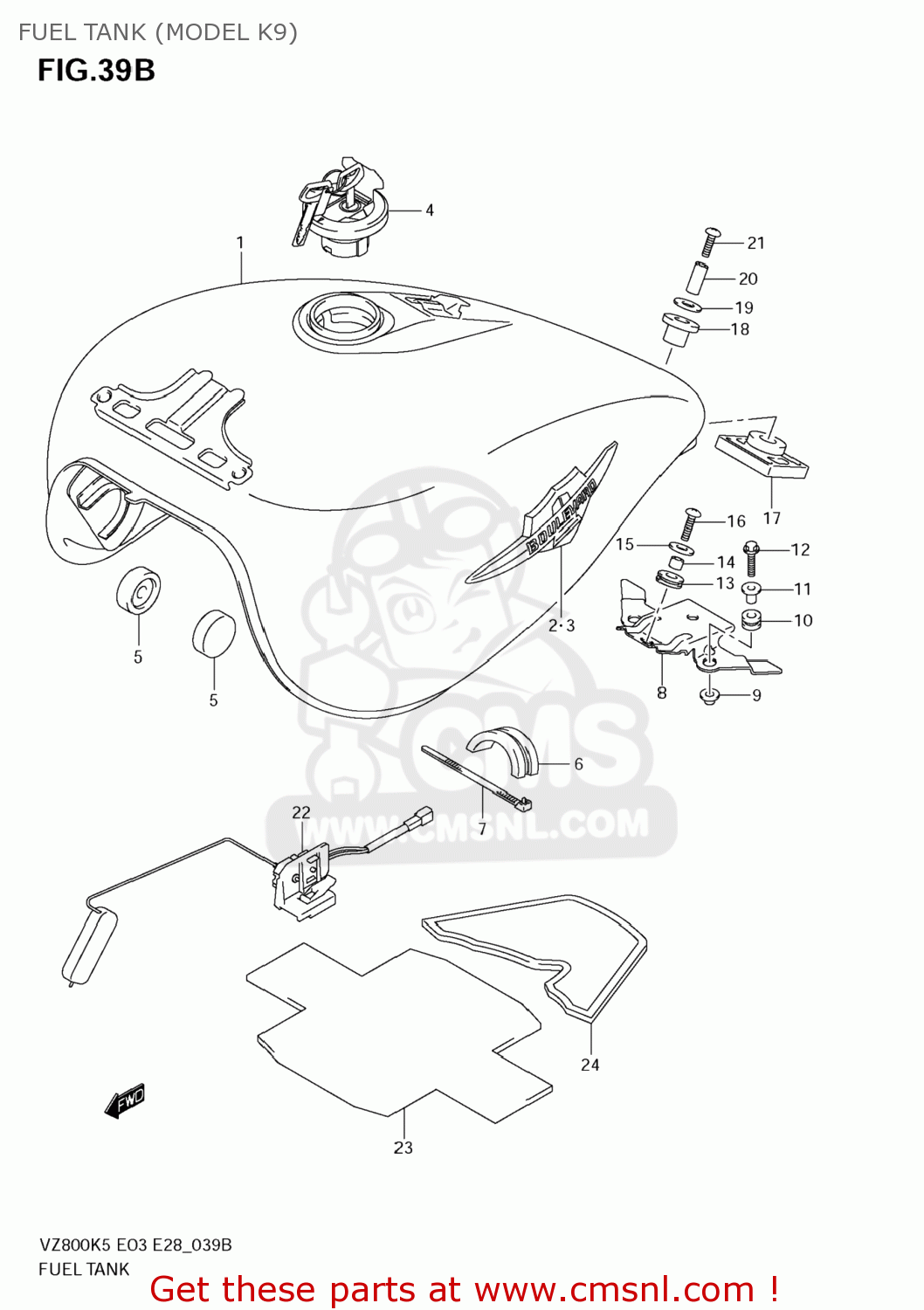

Fuel tank (model k9) diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

FUEL TANK (MODEL K9) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
FUEL TANK (MODEL K9) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
FUEL TANK (MODEL K9) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
4410039G60YAY
ref: 1-1
TANK ASSY,FUEL(BLACK)
4410039G60YAY
€ 571.00
1-2
4410039G80YAY
ref: 1-2
TANK ASSY,FUEL(BLACK)
€ 630.00
1-3
4410039GG0EAJ
ref: 1-3
TANK ASSY,FUEL
€ 675.00
1-4
4410039GG0GHK
ref: 1-4
TANK ASSY,FUEL
€ 675.00
1-5
4410039GJ0EAJ
ref: 1-5
TANK ASSY,FUEL
€ 675.00
1-6
4410039GJ0GHK
ref: 1-6
TANK ASSY,FUEL
€ 675.00
2
6811139G01
ref: 2
EMBLEM,FUEL TANK,R
€ 53.00
3
6812139G01
ref: 3
EMBLEM,FUEL TANK,L
€ 53.00
4-1
4420039830
ref: 4-1
CAP SET,FUEL TANK
€ 110.50
4-2
4420039840
ref: 4-2
CAP SET,FUEL TANK
4420039840
€ 226.00
5
0932910007
ref: 5
CUSHION
0932910007
€ 3.00
6
4454114F10
ref: 6
CUSHION,FUEL TANK LWR
€ 5.00
7
0940725402
ref: 7
CLAMP(L:250)
0940725402
€ 4.50
8
4453039G10
ref: 8
BRACKET,FUEL TANK RR
€ 19.50
9
0916906076
ref: 9
WASHER
0916906076
€ 2.50
10
0932008001
ref: 10
CUSHION
0932008001
€ 3.50
11
0916906070
ref: 11
WASHER
€ 3.50
12
021620625B
ref: 12
SCREW
021620625B
€ 2.00
13
0932012011
ref: 13
CUSHION
0932012011
€ 3.00
14
0918008188
ref: 14
SPACER(8.5X12X7.5)
0918008188
€ 3.00
15
0916008151
ref: 15
WASHER(8.5X26X1.6)
0916008151
€ 2.00
16
0910608167
ref: 16
BOLT(8X20)
0910608167
€ 3.50
17
4454241F00
ref: 17
CUSHION,FUEL TANK RR LWR
€ 8.00
18
4454141F01
ref: 18
CUSHION,FUEL TANK RR UPR
€ 6.50
19
0918008057
ref: 19
SPACER (8.2X12.5X23.5)
0918008057
€ 2.00
20
0916008140
ref: 20
09160-08146
WASHER (8.5X33X1.6)
0916008140
€ 3.00
21
015500835A
ref: 21
BOLT
015500835A
€ 3.50
22
3481039G00
ref: 22
GAUGE ASSY,FUEL LEVEL SENDER
€ 112.00
23
4419239G00
ref: 23
SHIELD,FUEL TANK HEAT
€ 94.00
24
4419339G00
ref: 24
SHIELD,FUEL TANK HEAT NO.2
€ 82.50
