RADIATOR HOSE

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

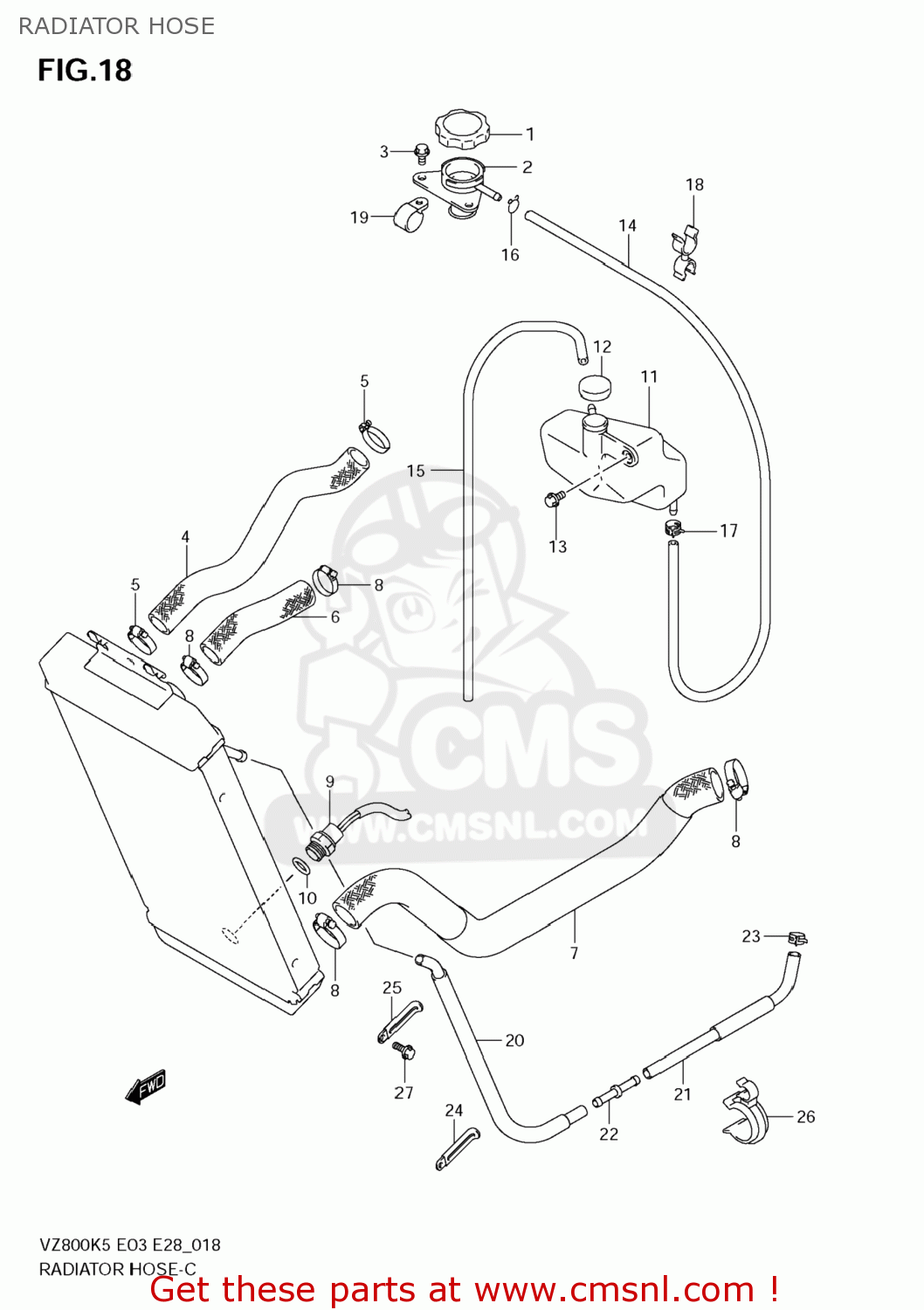

Radiator hose diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

RADIATOR HOSE VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

RADIATOR HOSE VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1773012C30
ref: 1

CAP,RADIATOR

€ 33.50

2

1779124D00
ref: 2

CONDUCTION,RADIATOR

€ 37.50

3

015470616A
ref: 3

BOLT

€ 2.00

4

1785341F00
ref: 4

HOSE,CONDUCTION

€ 18.00

5

0940228513
ref: 5

CLAMP

€ 6.50

6

1785141F00
ref: 6

HOSE,RADIATOR INLET

€ 12.50

7

1785241F02
ref: 7

HOSE,RADIATOR OUTLET

€ 31.00

8

0940232512
ref: 8

CLAMP

€ 9.00

9

1768033E00
ref: 9

SWITCH,RADIATOR FAN

€ 49.50

10

1768950F00
ref: 10

O-RING

€ 2.50

11

1791141F11
ref: 11

TANK,RESERVOIR

€ 50.00

12

1793212C00
ref: 12

CAP,RESERVOIR TANK

€ 3.50

13

0911106085
ref: 13

BOLT(6X12)

€ 4.50

14-1

1798141F10
ref: 14-1
17900-41810

HOSE,RSVR INLE

€ 27.00

14-2

1798141F11
ref: 14-2

HOSE,RESERVOIR INLET

€ 20.50

15

1798119F00
ref: 15

HOSE,RESERVOIR TANK INLET

€ 9.50

16

0940108410
ref: 16

CLIP

€ 3.00

17

0940108411
ref: 17

CLIP

€ 3.00

18

0940800078
ref: 18

CLAMP

€ 3.00

19

0940308404
ref: 19

CLAMP

€ 3.50

20

1785541F00
ref: 20

HOSE,WATER BYPASS

€ 30.00

21

1785641F00
ref: 21

HOSE,WATER BYPASS

€ 17.00

22

0936708001
ref: 22

JOINT

€ 2.50

23

0940112405
ref: 23

CLIP

€ 3.00

24-1

0940408206
ref: 24-1

CLAMP(L:65 T:0.8)

€ 3.50

24-2

0940408207
ref: 24-2

CLAMP(L:80)

€ 3.00

24-3

0940408419
ref: 24-3

CLAMP(L:80)

€ 2.00

25

0940410205
ref: 25

CLAMP(L:82)

€ 2.50

26

0940800177
ref: 26

CLAMP

€ 4.50

27

0910310393
ref: 27

BOLT(10X16)

€ 2.50
