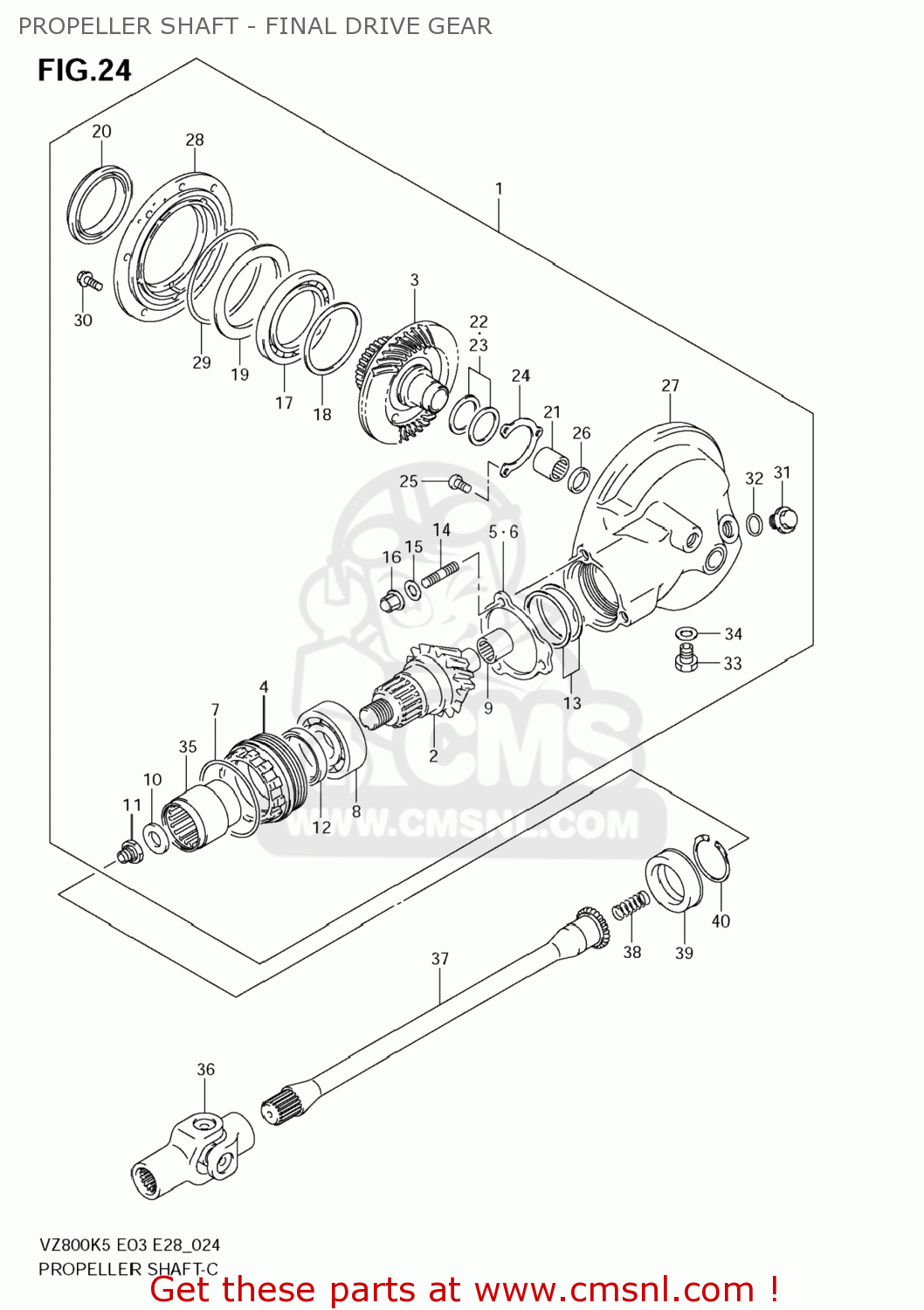

PROPELLER SHAFT - FINAL DRIVE GEAR - VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

ref

part #

description

quantity

1

2730038890
ref: 1
27300-38892

GEAR & CASE SET, FINAL BEVEL

€ 1,232.50

2

2731138A00
ref: 2

GEAR,FINAL DRIVE BEVEL(NT:11)

€ 219.50

3

2732045C01
ref: 3

GEAR,FINAL DRIVEN BEVEL(NT:34)

€ 321.00

4

2731238A00
ref: 4

STOPPER,FINAL DRIVE BEARING

€ 38.50

5

2731338A00
ref: 5

PLATE,BEARING STOPPER

€ 4.00

6

2731338A10
ref: 6

PLATE,BEARING STOPPER

€ 4.00

7

0928062002
ref: 7

O RING(D:1.9,ID:61.6)

€ 3.00

8

0926730005
ref: 8

BEARING(30X62X23.8)

€ 58.00

9

0926317028
ref: 9

BEARING(17X32X16)

€ 26.50

10

0916016029
ref: 10

WASHER(16X29X4)

€ 6.00

11

0915916010
ref: 11

NUT

€ 9.00

12

0928338009
ref: 12

SEAL,OIL(38X54X6)

€ 11.50

13

2744538810
ref: 13

SHIM SET,FINAL DRIVE GEAR

€ 14.50

13

2744538810
ref: 13

SHIM SET,FINAL DRIVE GEAR

€ 14.50

14

0910810095
ref: 14

BOLT,STUD

€ 4.00

15

0916410008
ref: 15

WASHER

€ 1.50

16

0915910026
ref: 16

NUT

€ 6.00

17

0926270001
ref: 17

BEARING(70X110X13)

€ 78.50

18

2732734810
ref: 18

SHIM SET,DRIVEN GEAR BEARING

€ 20.00

18

2732734810
ref: 18

SHIM SET,DRIVEN GEAR BEARING

€ 20.00

19

2732834200
ref: 19

PLATE,FINAL DRIVEN BRG OIL

€ 4.00

20

0928970001
ref: 20

SEAL,OIL(70X96X16)

€ 41.50

21

0926332007
ref: 21

BEARING(32X46X17.7)

€ 44.00

22

2732634820
ref: 22

SHIM SET,FINAL DRIVEN GEAR

€ 12.50

22

2732634820
ref: 22

SHIM SET,FINAL DRIVEN GEAR

€ 12.50

23

2732634810
ref: 23

SHIM SET,FINAL DRIVE GEAR

€ 8.00

24

2732934200
ref: 24

RETAINER,FINAL DRIVEN GEAR BRG

€ 4.50

25

021120612B
ref: 25

SCREW

€ 1.50

26

0928330028
ref: 26

SEAL,OIL(30X42X7)

€ 7.50

27

2745038A60
ref: 27

CASE,FINAL GEAR

€ 813.00

28

2746007A01
ref: 28

CASE,FINAL GEAR BEARING

€ 118.50

29

0928000015
ref: 29

O RING(D:3.5,ID:131.6)

€ 9.50

30

015500825A
ref: 30

BOLT

€ 2.50

31

0924718001
ref: 31

PLUG

€ 8.00

32

0928018004
ref: 32

O RING(D:2.4,ID:17.8)

€ 5.50

33

0924714002
ref: 33

PLUG(MAGNETO)

€ 5.00

34

0916814002
ref: 34
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

35

2717238A00
ref: 35

COUPLING,FINAL DRIVE GEAR

€ 41.50

36

2710038A50
ref: 36
27100-38A60

YOKE COMP,UNIVERSAL JOINT

€ 247.00

37

2715141F00
ref: 37

SHAFT,PROPELLER

€ 149.50

38

0944018019
ref: 38

SPRING

€ 3.00

39

0928330051
ref: 39

SEAL,OIL(28.4X48X15)

€ 9.00

40

0938140003
ref: 40

CIRCLIP

€ 5.00
