HANDLE SWITCH (MODEL K5/K6)

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

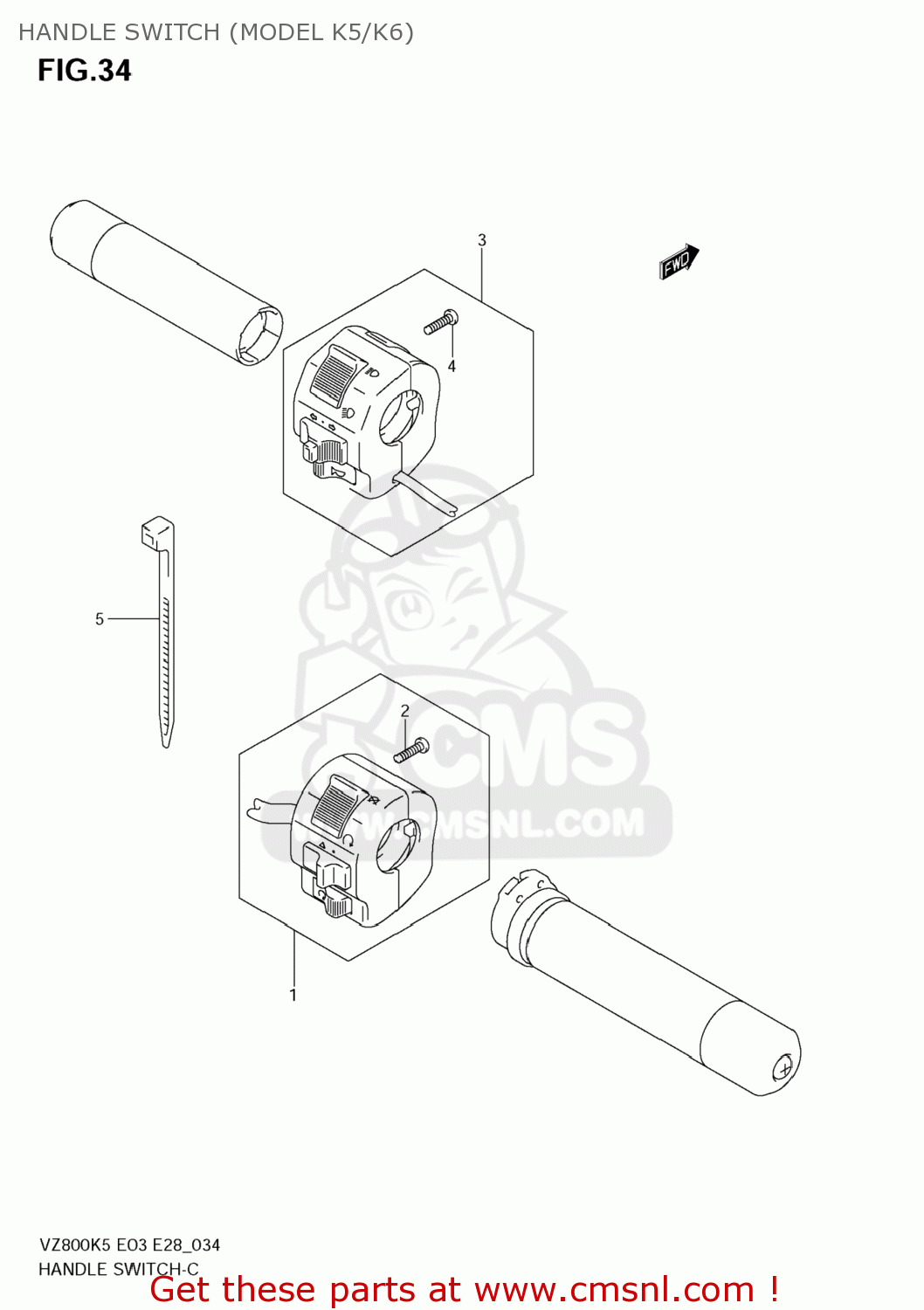

Handle switch (model k5/k6) diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

HANDLE SWITCH (MODEL K5/K6) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
HANDLE SWITCH (MODEL K5/K6) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
HANDLE SWITCH (MODEL K5/K6) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
3720039G50
ref: 1
SWITCH ASSY,HANDLE,R
€ 217.50
2
0912505048
ref: 2
09136-05041
SCREW(5X16)
€ 2.00
3
3740039G10
ref: 3
SWITCH ASSY,HANDLE,L
€ 220.00
4
0912505048
ref: 4
09136-05041
SCREW(5X16)
€ 2.00
5
0940714407
ref: 5
CLAMP(L:145)
0940714407
€ 4.00
