Buy Suzuki VZ Parts Online


HANDLE SWITCH (MODEL K7/K8/K9)

VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

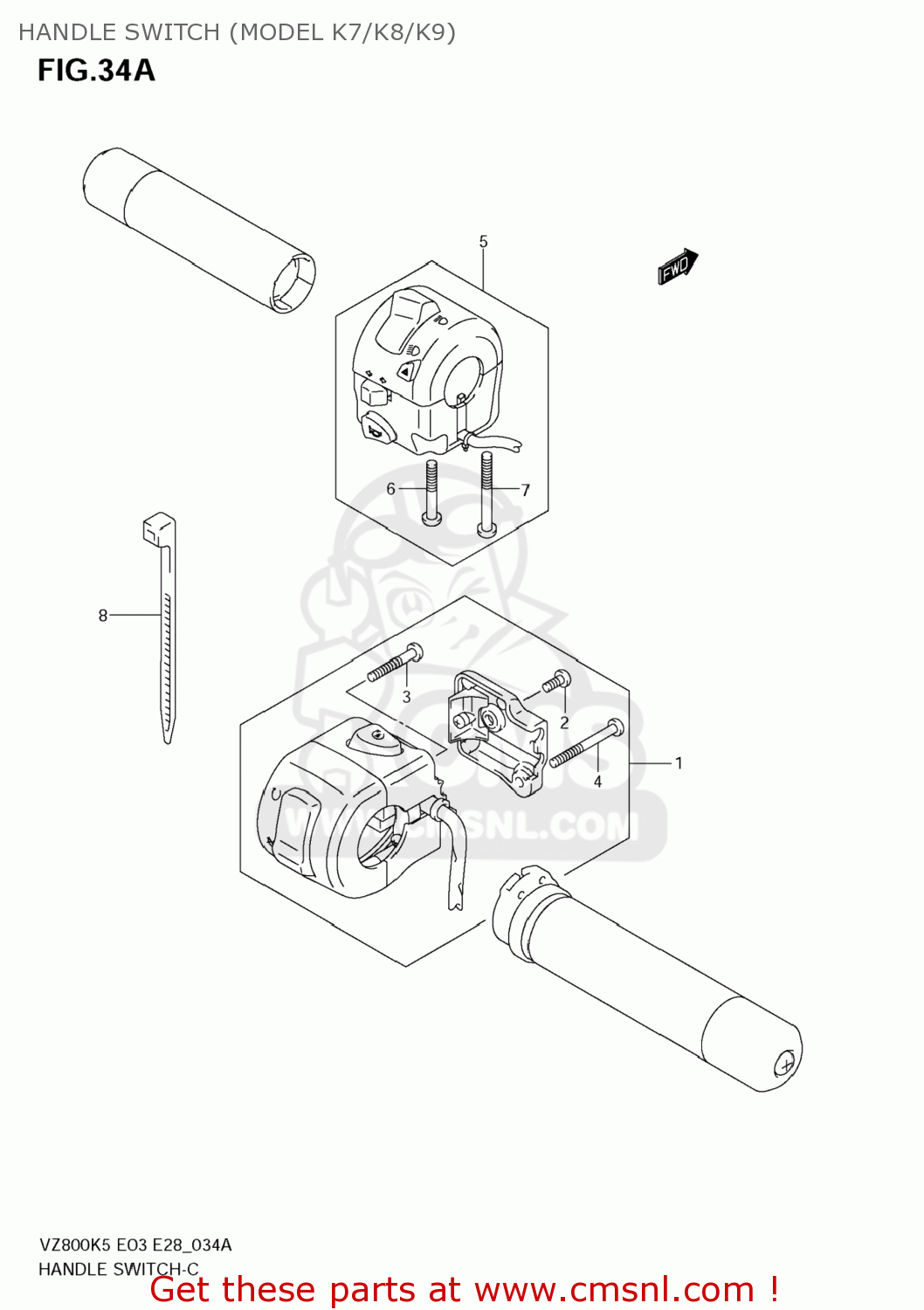

Handle switch (model k7/k8/k9) diagram VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

HANDLE SWITCH (MODEL K7/K8/K9) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
HANDLE SWITCH (MODEL K7/K8/K9) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
HANDLE SWITCH (MODEL K7/K8/K9) VZ800Z BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
3720048G30
ref: 1-1
37200-48GA0
SWITCH ASSY,HA
€ 170.00
1-2
3720048GA0
ref: 1-2
SWITCH ASSY,HA
€ 170.00
2
021120510A
ref: 2
SCREW
021120510A
€ 2.00
3
0211205353
ref: 3
02112-0535B
SCREW
0211205353
€ 1.50
4
0211205453
ref: 4
02112-0545B
SCREW
0211205453
€ 4.00
5
3740048G10
ref: 5
SWITCH ASSY,HANDLE,L
3740048G10
€ 227.50
6
021120530A
ref: 6
SCREW
021120530A
€ 1.50
7
0211205453
ref: 7
02112-0545B
SCREW
0211205453
€ 4.00
8
0940714407
ref: 8
CLAMP(L:145)
0940714407
€ 4.00
up
