CYLINDER HEAD COVER

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

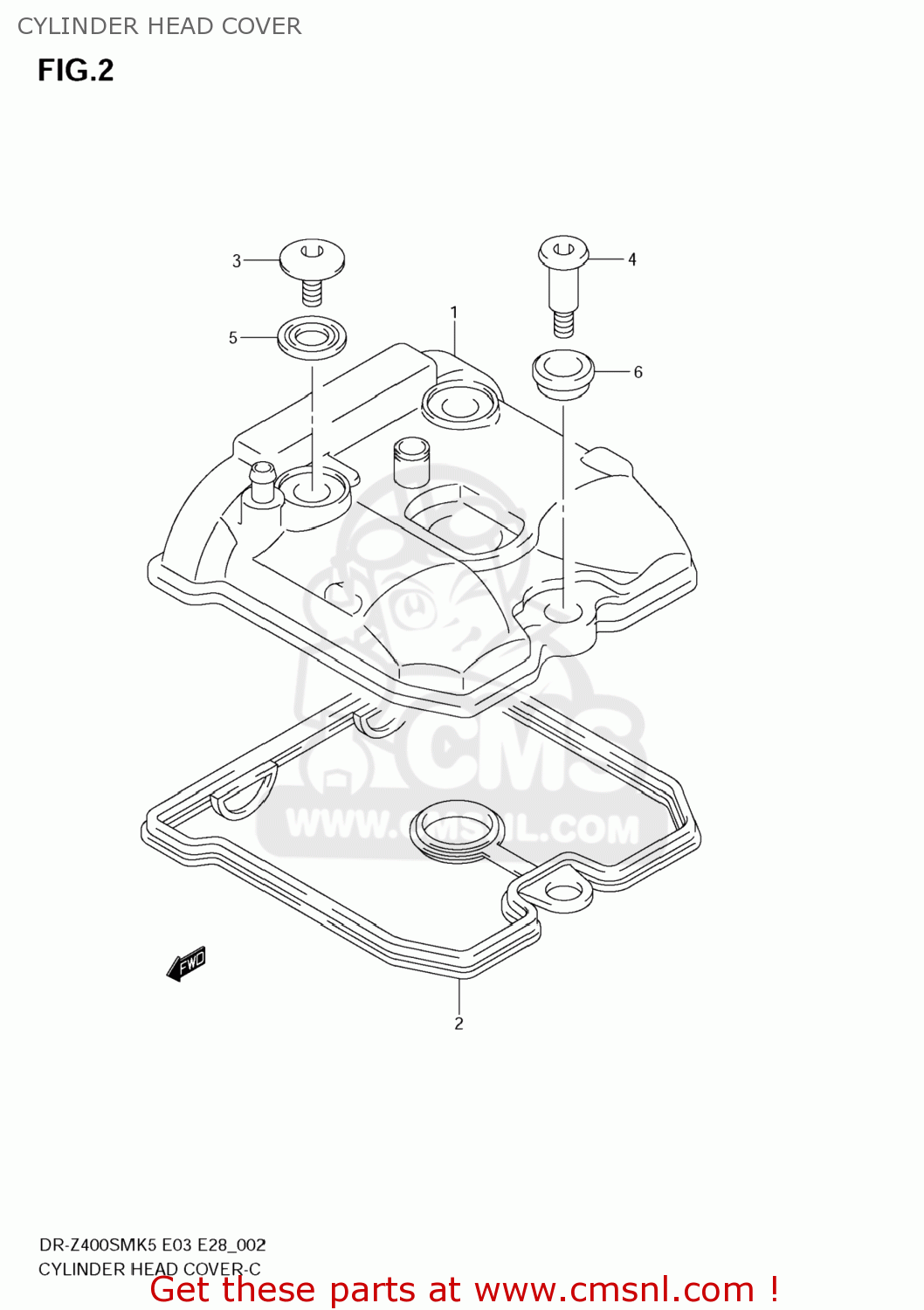

Cylinder head cover diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

CYLINDER HEAD COVER DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

CYLINDER HEAD COVER DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

1117029F00
ref: 1

COVER,CYLINDER HEAD

€ 308.50

2

1117329F00
ref: 2

GASKET,CYL HEAD COVER (NAS)

€ 24.00

3

0910607009
ref: 3

BOLT(7X17.5)

€ 4.50

4

0910607010
ref: 4

BOLT(7X31)

€ 4.50

5-1

0916111008
ref: 5-1

WASHER(10.6X25.5X2.3)

€ 4.50

5-2

1119127E00
ref: 5-2

WASHER,CYL HEAD COVER

€ 4.50

6

1119213E00
ref: 6

CUSHION,HEAD COVER BOLT

€ 4.50
