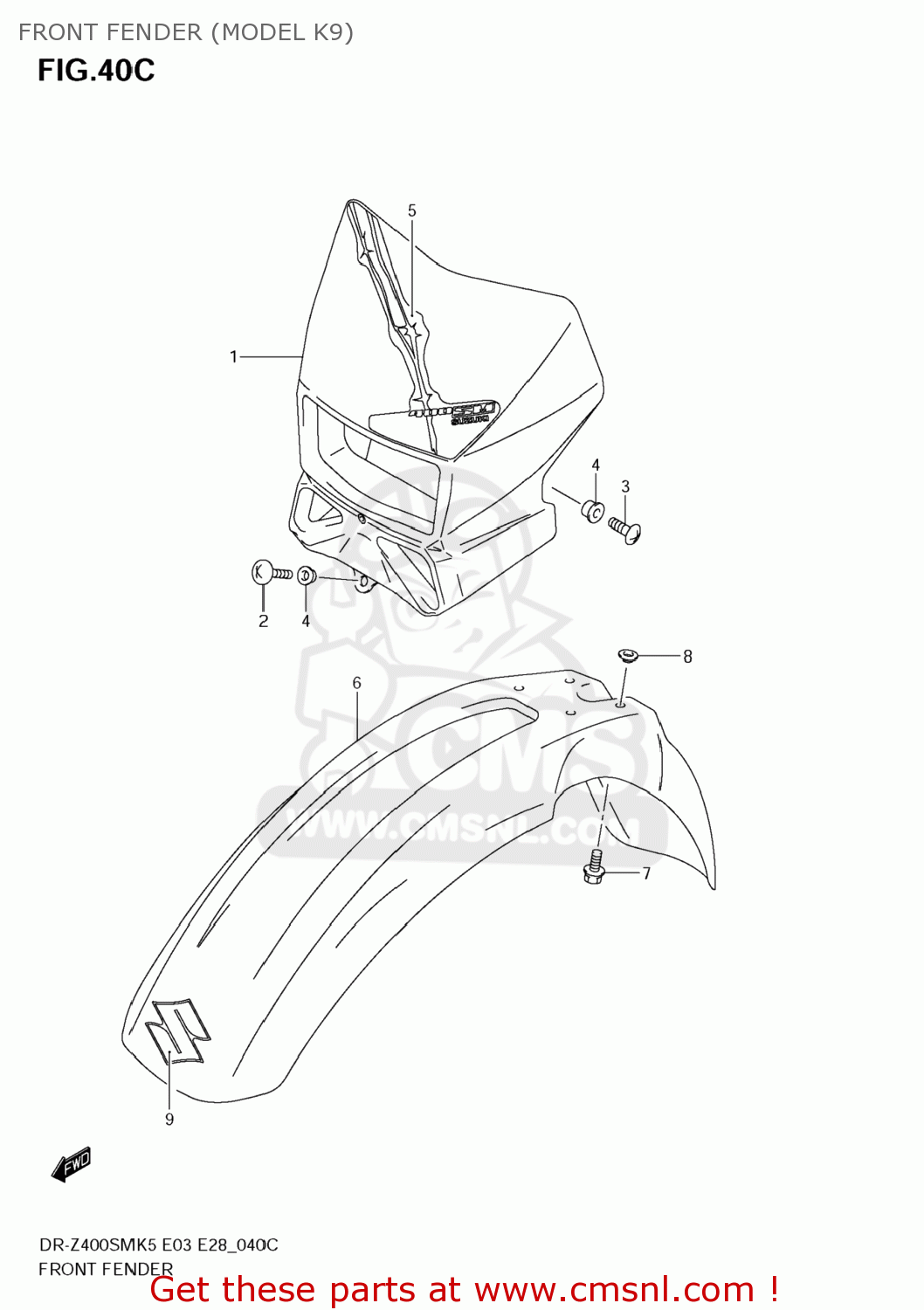

FRONT FENDER (MODEL K9)

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

Front fender (model k9) diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1-1

5181129F50019
ref: 1-1

COVER,HEADLAMP

€ 54.50

1-2

5181129F5030H
ref: 1-2

COVER,HEADLAMP

€ 61.50

021420512B
ref: 2

SCREW

€ 1.50

021420612B
ref: 3

SCREW

€ 2.00

0916906071
ref: 4

WASHER

€ 2.50

5-1

6872529F90GHH
ref: 5-1

TAPE,HEADLAMP HOUSING

€ 26.50

5-2

6872529F90GHJ
ref: 5-2

TAPE,HEADLAMP HOUSING

€ 26.50

6-1

5311129FA0019
ref: 6-1

FENDER,FR

€ 65.50

6-2

5311129FA030H
ref: 6-2

FENDER,FR

€ 73.00

0911606170
ref: 7

BOLT(6X16)

€ 3.00

0916906073
ref: 8

WASHER

€ 4.00

6815107G10YD8
ref: 9

EMBLEM,S

€ 10.50
