Buy Suzuki unknown Parts Online


OIL PUMP

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

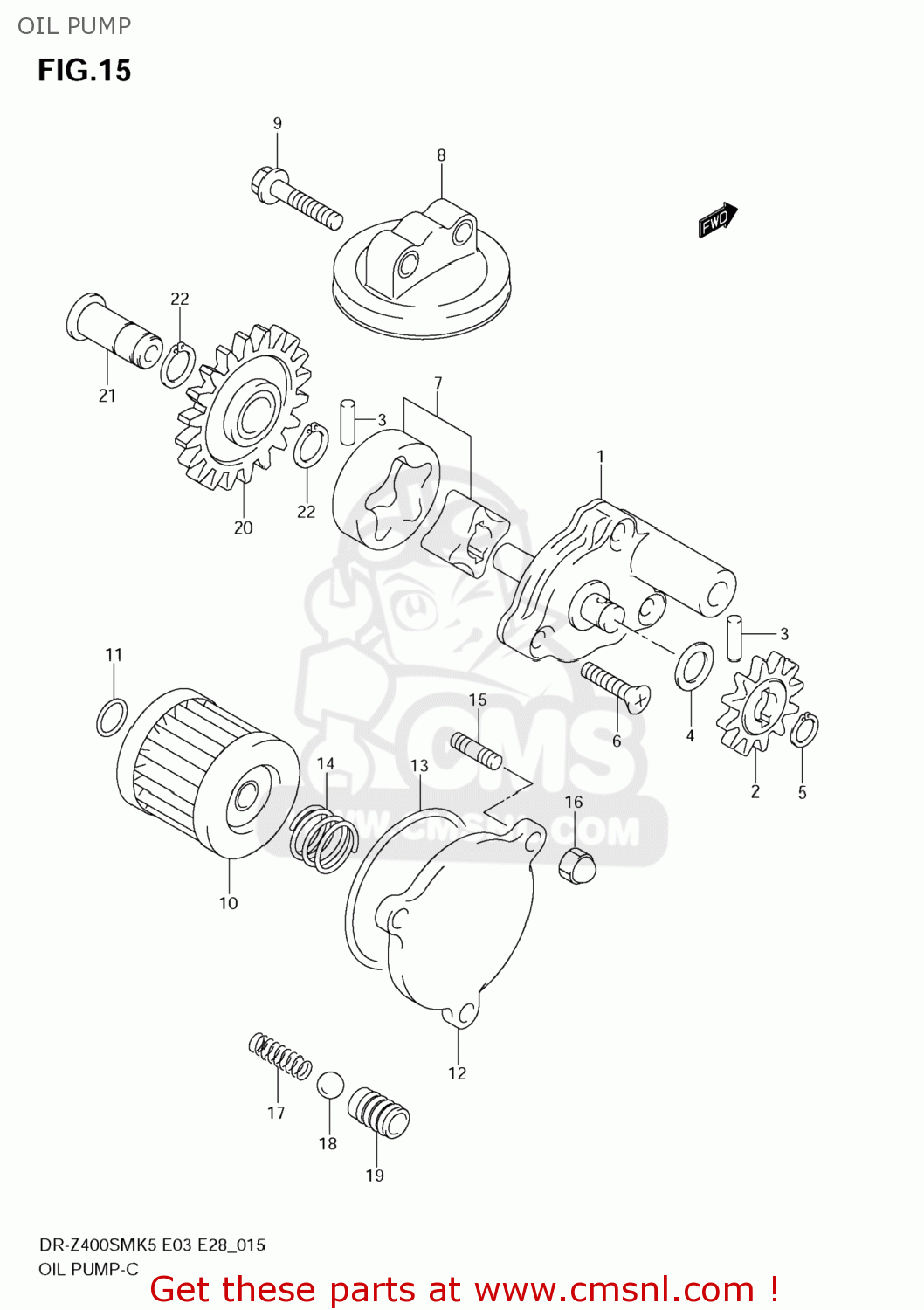

Oil pump diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

OIL PUMP DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
OIL PUMP DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
OIL PUMP DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
1640029F00
ref: 1
PUMP ASSY,ENGINE OIL NO.1
1640029F00
€ 135.00
2
1633129F01
ref: 2
GEAR,OIL PUMP DRIVEN
1633129F01
€ 21.00
3
0926104009
ref: 3
PIN(4X15.8)
0926104009
€ 1.50
4
0918110158
ref: 4
SHIM(10X18X0.5)
0918110158
€ 2.50
5
0833131106
ref: 5
08331-3110A
CIRCLIP,10MM
0833131106
€ 2.00
6
021220625B
ref: 6
SCREW
021220625B
€ 2.00
7
1641029F00
ref: 7
ROTOR SET,OIL PUMP,NO.2
1641029F00
€ 38.00
8
1652029F00
ref: 8
STRAINER,OIL PUMP NO.2
€ 13.50
9-1
015500625B
ref: 9-1
BOLT
015500625B
€ 2.50
9-2
015500625A
ref: 9-2
BOLT
015500625A
€ 2.50
10
1651029F00
ref: 10
FILTER ASSY,ENGINE OIL
1651029F00
€ 9.50
11
0928013004
ref: 11
O RING(D:1.9,ID:13)
0928013004
€ 2.50
12
1651247E00
ref: 12
CAP,OIL FILTER
1651247E00
€ 19.00
13
0928054001
ref: 13
O RING(D:2.4,ID:52.6)
0928054001
€ 4.00
14
0944018002
ref: 14
SPRING
0944018002
€ 1.50
15
0910806123
ref: 15
BOLT,STUD
0910806123
€ 3.00
16-1
083131006B
ref: 16-1
NUT
083131006B
€ 2.00
16-2
083131006A
ref: 16-2
NUT
083131006A
€ 1.50
17
0944007073
ref: 17
SPRING
0944007073
€ 4.00
18
0611112004
ref: 18
BALL
0611112004
€ 1.50
19
1644229F00
ref: 19
SEAT,OIL CHECK VALVE
1644229F00
€ 22.00
20
1632129F00
ref: 20
GEAR,OIL PUMP IDLE
1632129F00
€ 21.00
21
1632229F00
ref: 21
SHAFT,OIL PUMP IDLE GEAR
1632229F00
€ 12.50
22
0833131126
ref: 22
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
