FRONT MASTER CYLINDER

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

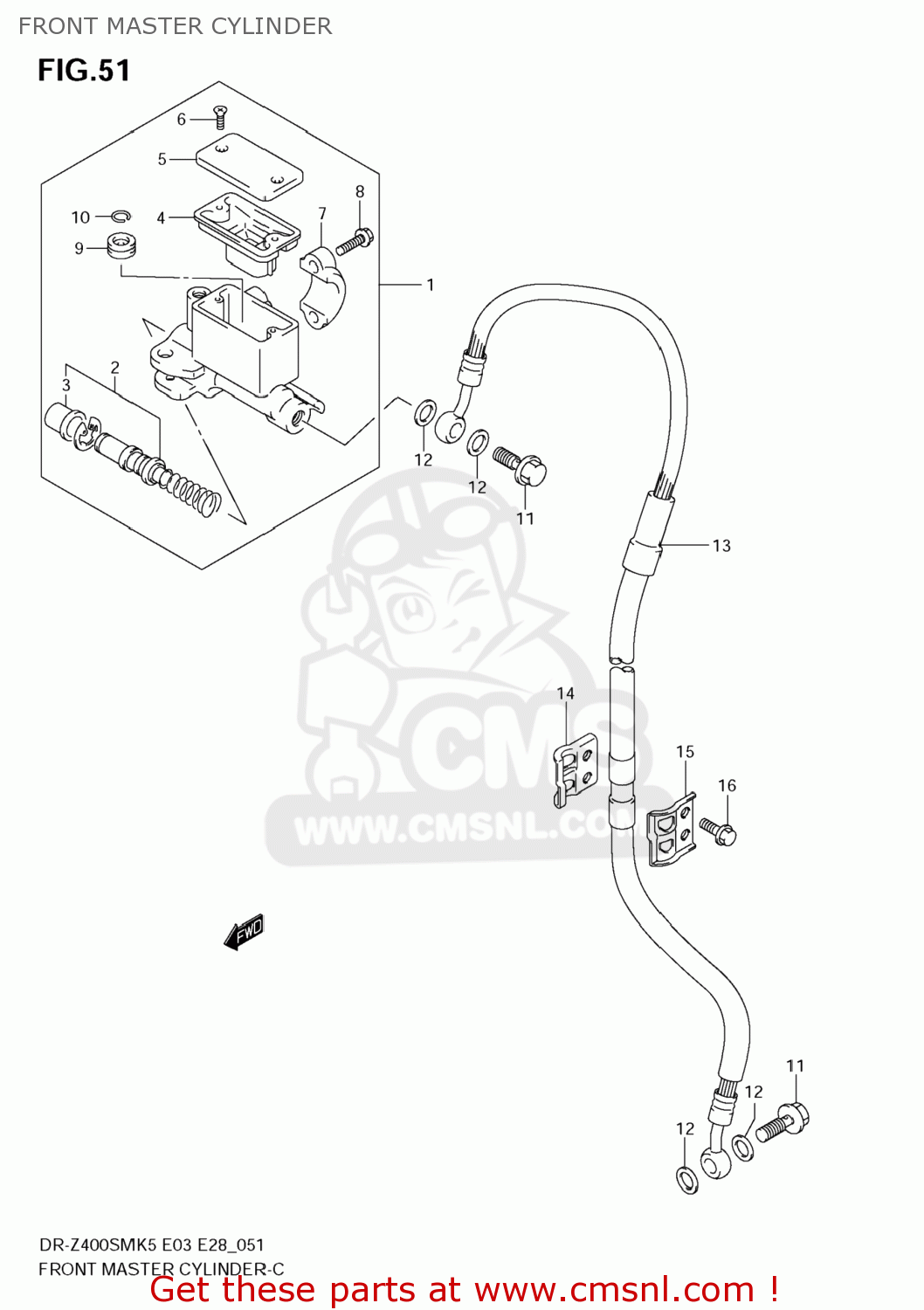

Front master cylinder diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

FRONT MASTER CYLINDER DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

FRONT MASTER CYLINDER DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

5960044E30
ref: 1

CYLINDER ASSY,FR MASTER

€ 206.00

1

5960044E30
ref: 1

CYLINDER ASSY,FR MASTER

€ 206.00

2

6960038810
ref: 2

PISTON/CUP SET

€ 42.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966744B00
ref: 4

DIAPHRAGM

€ 8.00

5

5966903D00
ref: 5

CAP

€ 14.00

6

0212204127
ref: 6

SCREW

€ 2.00

7

5967103D00
ref: 7

HOLDER

€ 13.00

8

5967527C00
ref: 8

BOLT

€ 2.50

9

5974836E00
ref: 9

SEPARATOR

€ 5.00

10

6974436E00
ref: 10

RING

€ 2.00

11

0936010062
ref: 11

BOLT UNION

€ 5.00

12

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

13

5948029F31
ref: 13

HOSE,FR BRAKE

€ 88.50

14

5926036E00
ref: 14

CLAMP,FR BRAKE HOSE INNER

€ 6.00

15

5927029F00
ref: 15

CLAMP,FR BRAKE HOSE OUTER

€ 7.50

16

0910306234
ref: 16

BOLT(6X16)

€ 2.50
