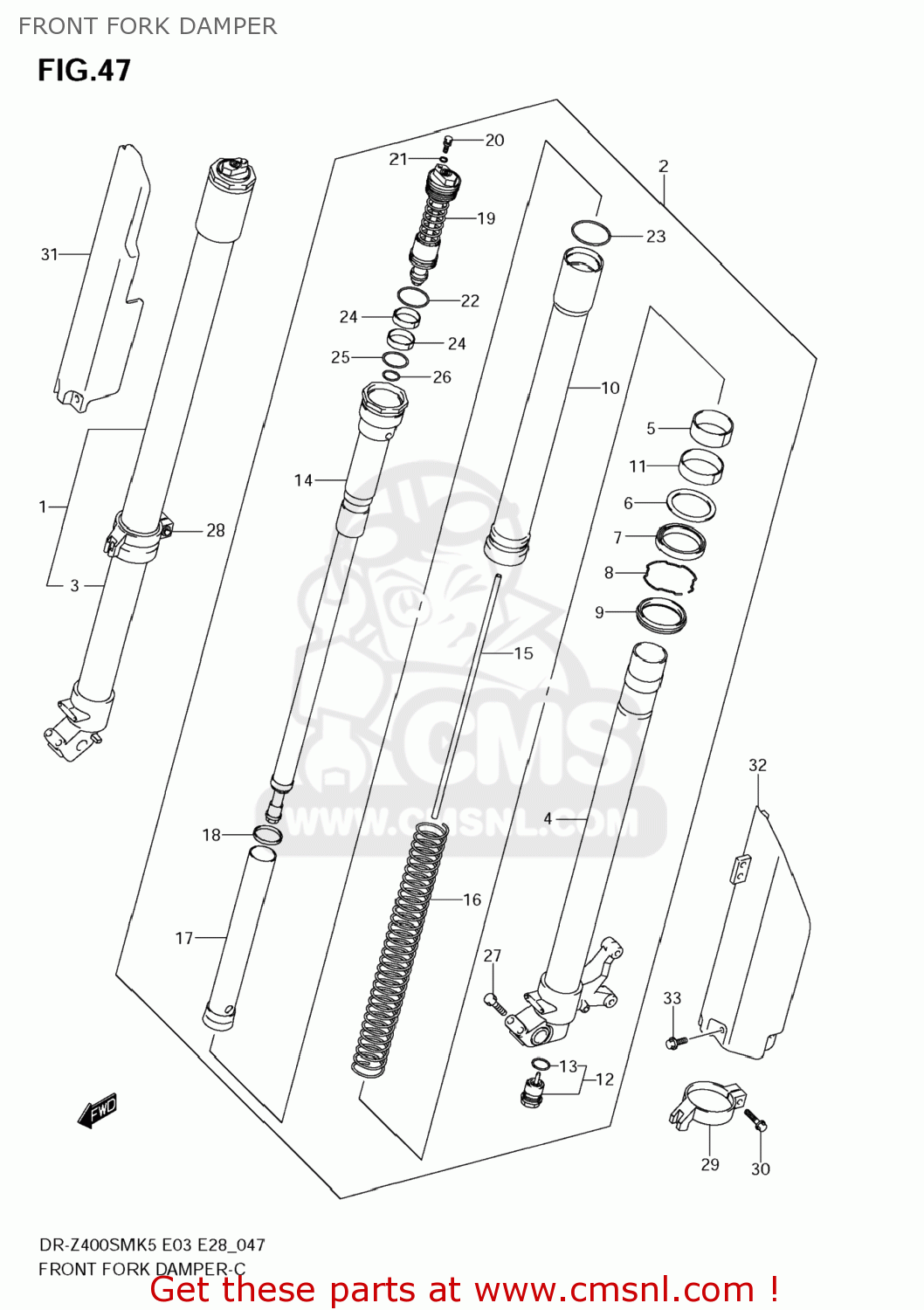

FRONT FORK DAMPER

ref

part #

description

quantity

1

5110329F70
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,596.50

2

5110429F70
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,596.50

3

5111029F70
ref: 3

TUBE,INNER,R

€ 475.00

4

5112029F70
ref: 4

TUBE,INNER,L

€ 475.00

5

5116736F00
ref: 5

BUSH,GUIDE

€ 13.00

6

5115836F00
ref: 6

SPACER,SEAL

€ 5.00

7

5115337F80
ref: 7

SEAL,OIL

€ 13.50

8

5115627C40
ref: 8

RING,OIL SEAL STOPPER

€ 3.50

9

5117337F80
ref: 9

SEAL,DUST

€ 16.50

10

5113029F70
ref: 10

TUBE,OUTER

€ 729.50

11

5112136F00
ref: 11

BUSH,SLIDE

€ 11.50

12

5117037F70
ref: 12

BOLT,CTR

€ 107.50

13

5117736E20
ref: 13

O RING

€ 2.50

14

5119029F70
ref: 14

DAMPER

€ 780.00

15

5119129F70
ref: 15

ROD,PUSH

€ 14.00

16

5117129F70
ref: 16

SPRING,FR

€ 91.00

17

5119837F70
ref: 17

COLLAR,SPRING

€ 37.50

18

5117829F70
ref: 18

SPRING SEAT

€ 11.50

19

5135129F70
ref: 19

BOLT,FORK

€ 254.00

20

5135736F20
ref: 20

BOLT,PLUG

€ 8.00

21

5135828E30
ref: 21

O RING,PLUG

€ 2.50

22

5111736E00
ref: 22

O RING

€ 3.50

23

5111736E60
ref: 23

O RING

€ 4.00

24

5112328E30
ref: 24

BUSH,FORK BOLT SLIDE

€ 9.50

25

5117436E40
ref: 25

O RING

€ 2.50

26

5117536E20
ref: 26

O RING

€ 2.50

27

5116635F00
ref: 27

BOLT

€ 6.50

28

5122036E61
ref: 28

GUIDE,PROTECTOR,R

€ 29.00

29

5121036E61
ref: 29

GUIDE,PROTECTOR,L

€ 29.00

30

0154706207
ref: 30

BOLT

€ 2.50

31-1

5150129F70YU1
ref: 31-1

PROTECTOR,FR FORK,R

€ 88.00

31-2

5150129F70019
ref: 31-2

PROTECTOR,FR FORK,R

€ 65.50

31-2

5150129F70019
ref: 31-2

PROTECTOR,FR FORK,R

€ 65.50

31-3

5150129F7030H
ref: 31-3

PROTECTOR,FR FORK,R

€ 77.50

32-1

5151129F70YU1
ref: 32-1

PROTECTOR,FR FORK,L

€ 95.00

32-2

5151129F70019
ref: 32-2

PROTECTOR,FR FORK,L

€ 65.50

32-2

5151129F70019
ref: 32-2

PROTECTOR,FR FORK,L

€ 65.50

32-3

5151129F7030H
ref: 32-3

PROTECTOR,FR FORK,L

€ 77.50

33

0910306256
ref: 33

BOLT(6X10)

€ 2.00

all assemblies
