STARTER CLUTCH

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

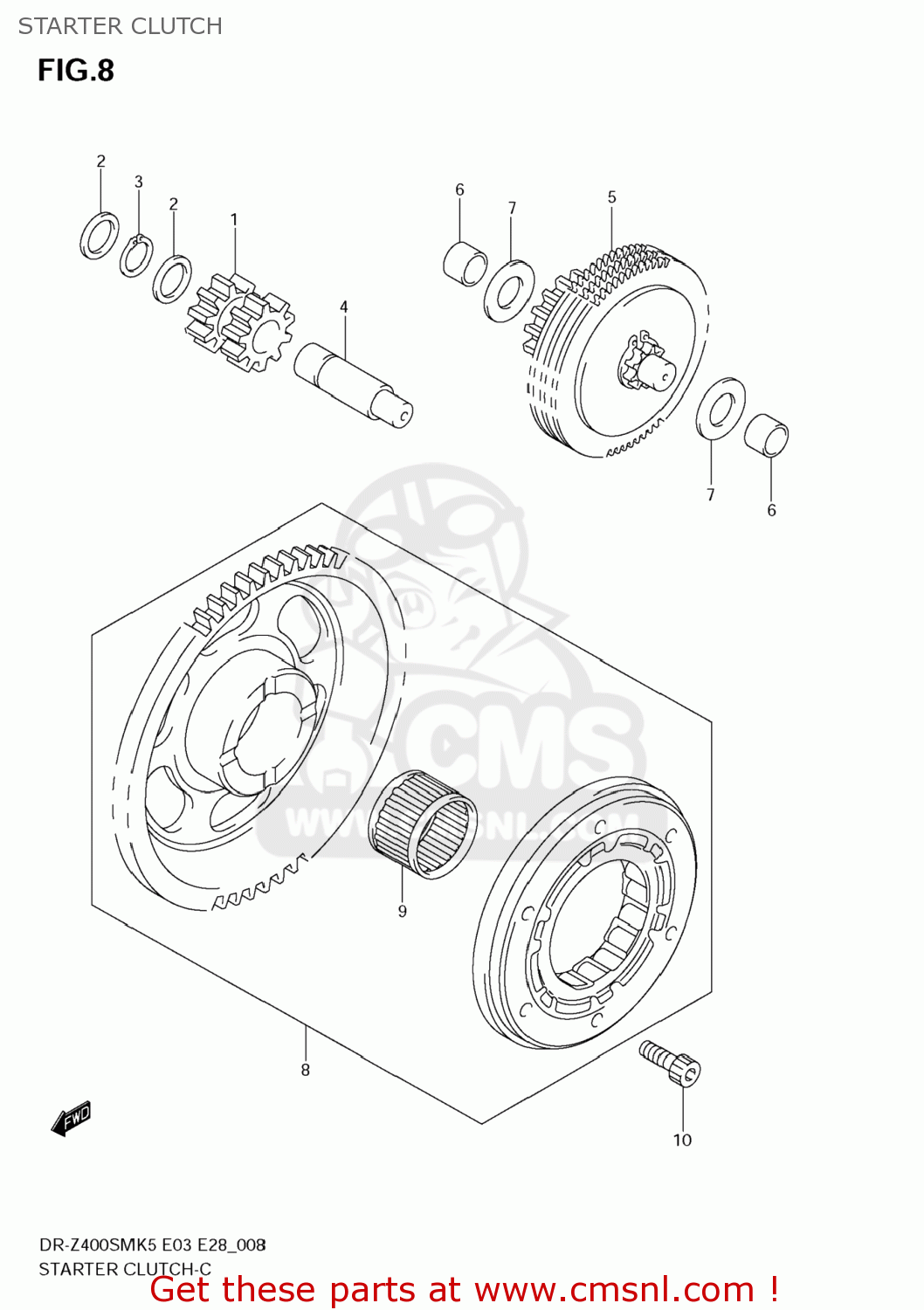

Starter clutch diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

STARTER CLUTCH DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

STARTER CLUTCH DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

1261129F00
ref: 1

GEAR,STARTER IDLE NO.1

€ 37.50

2

0918112130
ref: 2

SHIM(12X18X0.5)

€ 2.50

3

0833131126
ref: 3
08331-3112A

CIRCLIP,12 MM

€ 2.00

4

1261529F00
ref: 4

PIN,STARTER IDLE GEAR NO.1

€ 12.00

5

1260029F00
ref: 5

LIMITER ASSY,STARTER IDLE GEAR

€ 191.00

5

1260029F00
ref: 5

LIMITER ASSY,STARTER IDLE GEAR

€ 191.00

6

1261831D01
ref: 6

BUSH,LIMITER GEAR SHAFT

€ 17.50

7

0821110221
ref: 7

WASHER

€ 2.50

8

1260029810
ref: 8

CLUTCH SET,STARTER

€ 240.50

9

0926325049
ref: 9

BEARING(25X31X19)

€ 21.50

10-1

0713006163
ref: 10-1
07130-0616B

BOLT,OIL FILLE

€ 3.00

10-2

0910606073
ref: 10-2

BOLT(6X16)

€ 2.50
