STAND

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

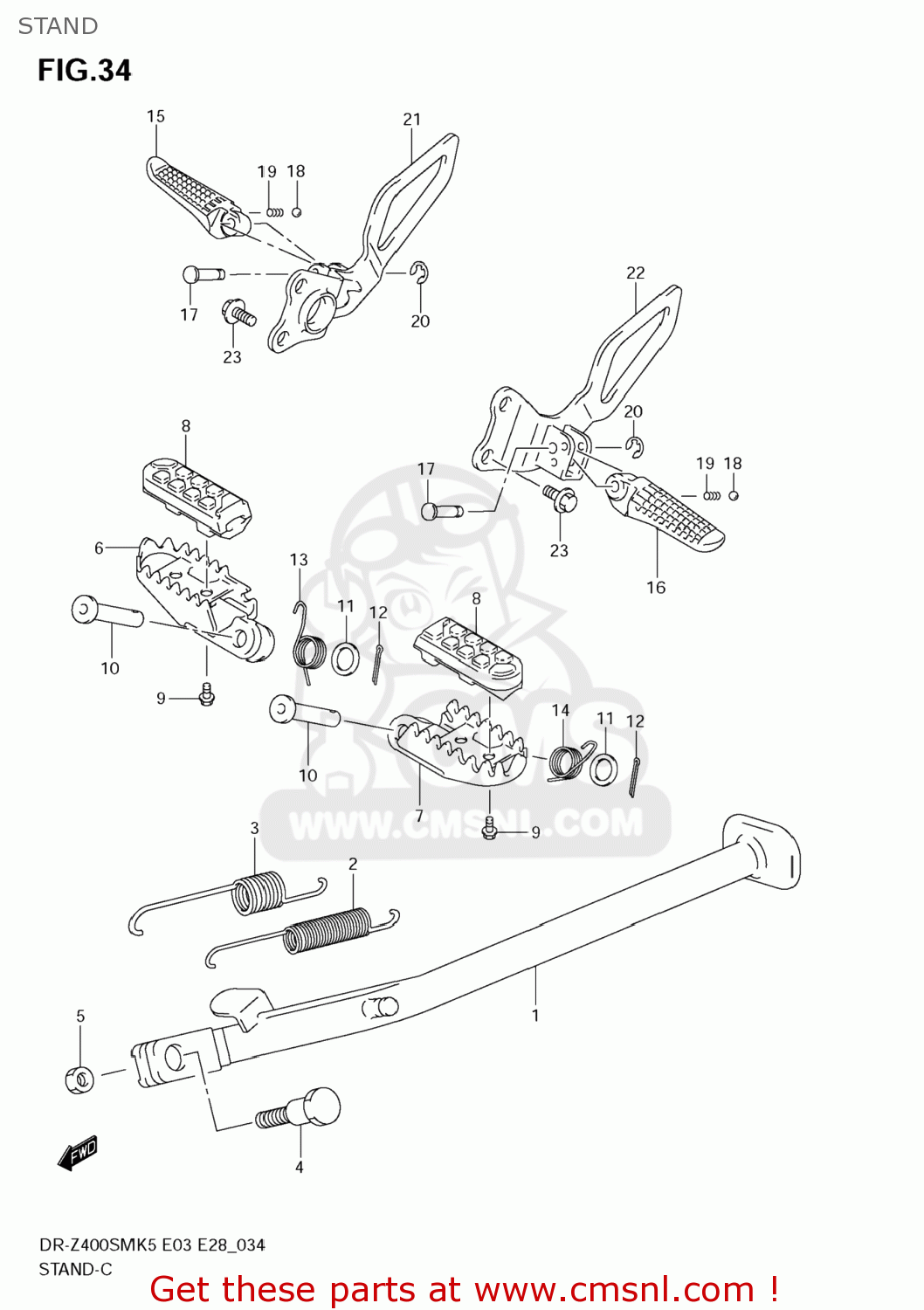

Stand diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

STAND DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
STAND DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
STAND DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
4231029F20
ref: 1
STAND,PROP
€ 0.00
2
0944315046
ref: 2
SPRING
0944315046
€ 7.50
3
0944322017
ref: 3
SPRING
0944322017
€ 7.00
4
0911110060
ref: 4
BOLT(10X33)
0911110060
€ 3.50
5
4232103FK0
ref: 5
NUT,PROP STAND
4232103FK0
€ 4.50
6
4355029E01
ref: 6
FOOTREST,R
4355029E01
€ 46.50
7
4356029E01
ref: 7
FOOTREST,L
4356029E01
€ 46.50
8
4353029F00
ref: 8
RUBBER,FOOTREST
4353029F00
€ 11.00
9
015470510B
ref: 9
BOLT
015470510B
€ 2.50
10
0920010019
ref: 10
PIN(10X41.5)
0920010019
€ 6.00
11
083220110B
ref: 11
WASHER
083220110B
€ 2.50
12
041112520A
ref: 12
PIN
041112520A
€ 2.00
13
0944818030
ref: 13
SPRING
0944818030
€ 5.00
14
0944818029
ref: 14
SPRING
0944818029
€ 5.00
15
4361133E11
ref: 15
BAR,PILLION FOOTREST,R
4361133E11
€ 23.50
16
4362133E11
ref: 16
BAR,PILLION FOOTREST,L
4362133E11
€ 23.50
17
8725985510
ref: 17
PIN
8725985510
€ 4.50
18
0611107004
ref: 18
BALL
0611107004
€ 1.50
19
0944005005
ref: 19
SPRING
0944005005
€ 1.50
20
083321104B
ref: 20
E RING
083321104B
€ 2.00
21-1
4365029F00
ref: 21-1
BRACKET,PILLION,R
€ 185.50
21-2
4365029F20
ref: 21-2
BRACKET,PILLION,R
4365029F20
€ 36.50
22
4375029F00
ref: 22
BRACKET,PILLION,L
4375029F00
€ 32.50
23
015500816B
ref: 23
BOLT
015500816B
€ 3.00
