REAR WHEEL (MODEL K7/K8/K9)

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

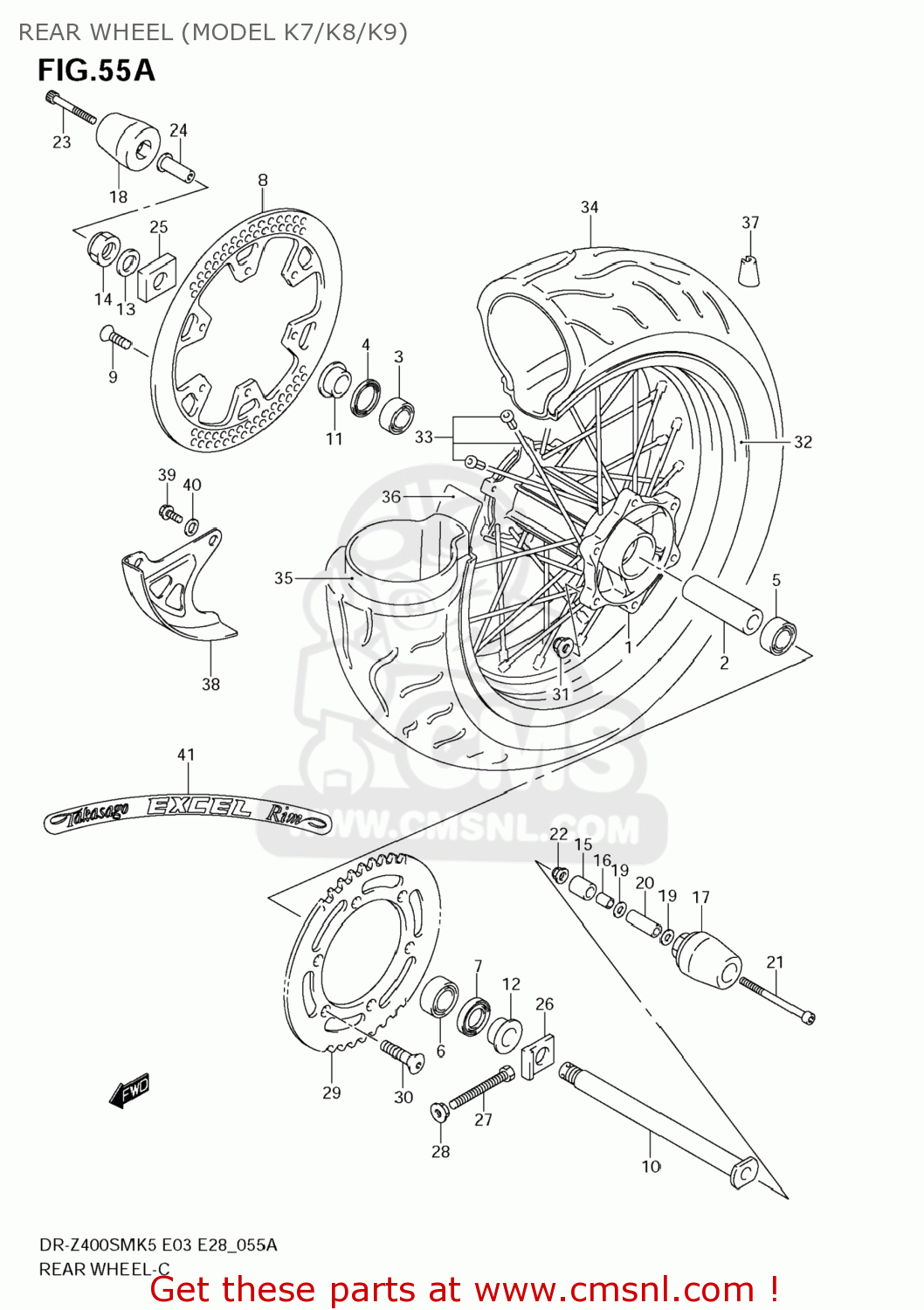

Rear wheel (model k7/k8/k9) diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

REAR WHEEL (MODEL K7/K8/K9) DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
REAR WHEEL (MODEL K7/K8/K9) DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
REAR WHEEL (MODEL K7/K8/K9) DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
6411129F10
ref: 1
HUB,RR WHEEL
€ 161.00
2
6473129F00
ref: 2
SPACER,RR HUB BEARING
6473129F00
€ 20.50
3
0813360047
ref: 3
BEARING
0813360047
€ 21.00
4
6484128E00
ref: 4
SEAL(29X42X6)
6484128E00
€ 8.50
5
0813360047
ref: 5
BEARING
0813360047
€ 21.00
6
0812362047
ref: 6
BEARING
0812362047
€ 17.00
7
0928329006
ref: 7
SEAL,OIL(29X47X6)
0928329006
€ 9.50
8
6921129F00
ref: 8
DISC,RR BRAKE
6921129F00
€ 118.00
9
0912006014
ref: 9
SCREW(6X18)
0912006014
€ 2.50
10
6471129F40
ref: 10
AXLE,RR
€ 69.00
11
6475128E20
ref: 11
SPACER,RR AXLE
6475128E20
€ 13.00
12
6475128E20
ref: 12
SPACER,RR AXLE
6475128E20
€ 13.00
13
0916019022
ref: 13
WASHER(19X32X3.2)
0916019022
€ 5.00
14
083192118A
ref: 14
NUT
083192118A
€ 3.50
15
5474429F00
ref: 15
EXPANDER,FR AXLE SLIDER,R
5474429F00
€ 4.00
16
0918005048
ref: 16
SPACER(5.5X8X10.5)
0918005048
€ 2.00
17
6475529F00
ref: 17
SLIDER,RR AXLE,L
6475529F00
€ 12.50
18
5475529F00
ref: 18
SLIDER,FR AXLE,L
5475529F00
€ 17.50
19
0916005029
ref: 19
WASHER(5.5X12X0.8)
0916005029
€ 2.50
20
0918005060
ref: 20
SPACER(5.5X9.5X26)
0918005060
€ 4.50
21
0910605021
ref: 21
BOLT(5X65)
0910605021
€ 4.00
22
083162005B
ref: 22
NUT
083162005B
€ 2.00
23
071300540A
ref: 23
BOLT
071300540A
€ 2.00
24
0915905050
ref: 24
NUT
0915905050
€ 6.00
25
6144529F00
ref: 25
ADJUSTER,CHAIN,R
6144529F00
€ 21.50
26
6144629F00
ref: 26
ADJUSTER,CHAIN,L
€ 21.50
27
0910008287
ref: 27
BOLT(8X50)
0910008287
€ 3.00
28
0915908034
ref: 28
NUT
0915908034
€ 2.00
29
6451114E00
ref: 29
SPROCKET,RR(NT:41)
6451114E00
€ 50.50
30
0912008010
ref: 30
BOLT(8X30.5)
0912008010
€ 2.50
31
083193108A
ref: 31
NUT
083193108A
€ 2.50
32
6531129F30
ref: 32
RIM,RR WHEEL(17XMT4.50 AL)(BLK
6531129F30
€ 539.50
33
6532029F30
ref: 33
SPOKE SET,RR WHEEL
6532029F30
€ 64.50
34
6511029FA0
ref: 34
TIRE,RR(140/70R17M/C 66H)
€ 205.50
34
6511029FA0
ref: 34
TIRE,RR(140/70R17M/C 66H)
€ 205.50
35
6520029FA0
ref: 35
TUBE ASSY,WHEEL INNER
€ 24.50
36
6526129FA0
ref: 36
PROTECTOR,WHL INR TUBE
6526129FA0
€ 4.50
37-1
5541126G00
ref: 37-1
BALANCER,WHEEL(15G)
5541126G00
€ 4.50
37-2
5541241F00
ref: 37-2
BALANCER,WHEEL(20G)
5541241F00
€ 6.50
37-3
5541341F00
ref: 37-3
BALANCER,WHEEL(30G)
5541341F00
€ 8.00
38
6923137F11
ref: 38
69231-37F12
COVER,REAR DIS
€ 12.50
39
0910306256
ref: 39
BOLT(6X10)
0910306256
€ 2.00
40
0832201067
ref: 40
WASHER
0832201067
€ 2.00
41-1
6839029F00CVZ
ref: 41-1
EMBLEM,EXCEL(8 PIECES SET)
6839029F00CVZ
€ 33.50
41-1
6839029F00CVZ
ref: 41-1
EMBLEM,EXCEL(8 PIECES SET)
6839029F00CVZ
€ 33.50
41-2
6839029F00C9Y
ref: 41-2
EMBLEM SET,EXCEL
€ 28.50
41-2
6839029F00C9Y
ref: 41-2
EMBLEM SET,EXCEL
€ 28.50
