HANDLEBAR (MODEL K5/K6)

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

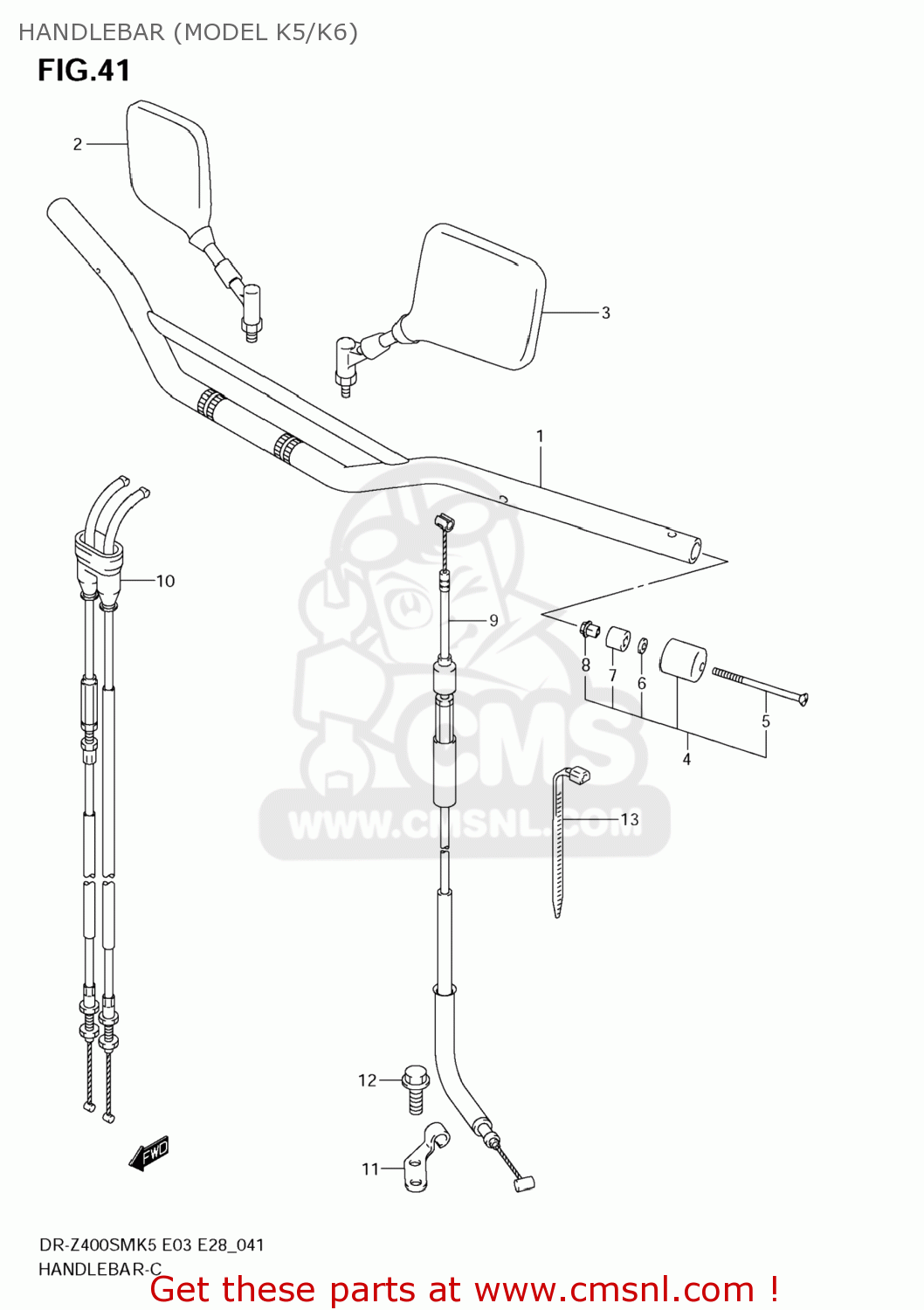

Handlebar (model k5/k6) diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

HANDLEBAR (MODEL K5/K6) DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

HANDLEBAR (MODEL K5/K6) DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

5611029F1013L
ref: 1

HANDLEBAR(SILVER)

€ 61.00

2

5650006G10
ref: 2
56500-06G30

MIRROR ASSY,RR VIEW,R

€ 101.50

3

5660006G10
ref: 3
56600-06G30

MIRROR ASSY,RR VIEW,L

€ 102.50

4

5620029830
ref: 4
56200-29831

BALANCER SET,H

€ 17.50

5

021220660B
ref: 5

SCREW

€ 3.00

6

0916006131
ref: 6

WASHER(6.5X16X4)

€ 2.50

7

5627210G20
ref: 7

EXPANDER,HANDLE BALANCER

€ 3.50

8

5627310G00
ref: 8
56273-10G10

NUT,HANDLE BAL

€ 6.50

9

5820029F10
ref: 9

CABLE ASSY,CLUTCH

€ 32.50

10

5830129F10
ref: 10
58301-29F11

CABLE SET,THROTTLE

€ 65.00

11

5863429F00
ref: 11

STOPPER,CLUTCH CABLE

€ 8.00

12

015500612B
ref: 12

BOLT

€ 2.50

13-1

0940710404
ref: 13-1

CLAMP(L:100)

€ 4.00

13-2

0940725401
ref: 13-2

CLAMP(L:235)

€ 4.00
