HANDLE SWITCH (MODEL K7/K8/K9)

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

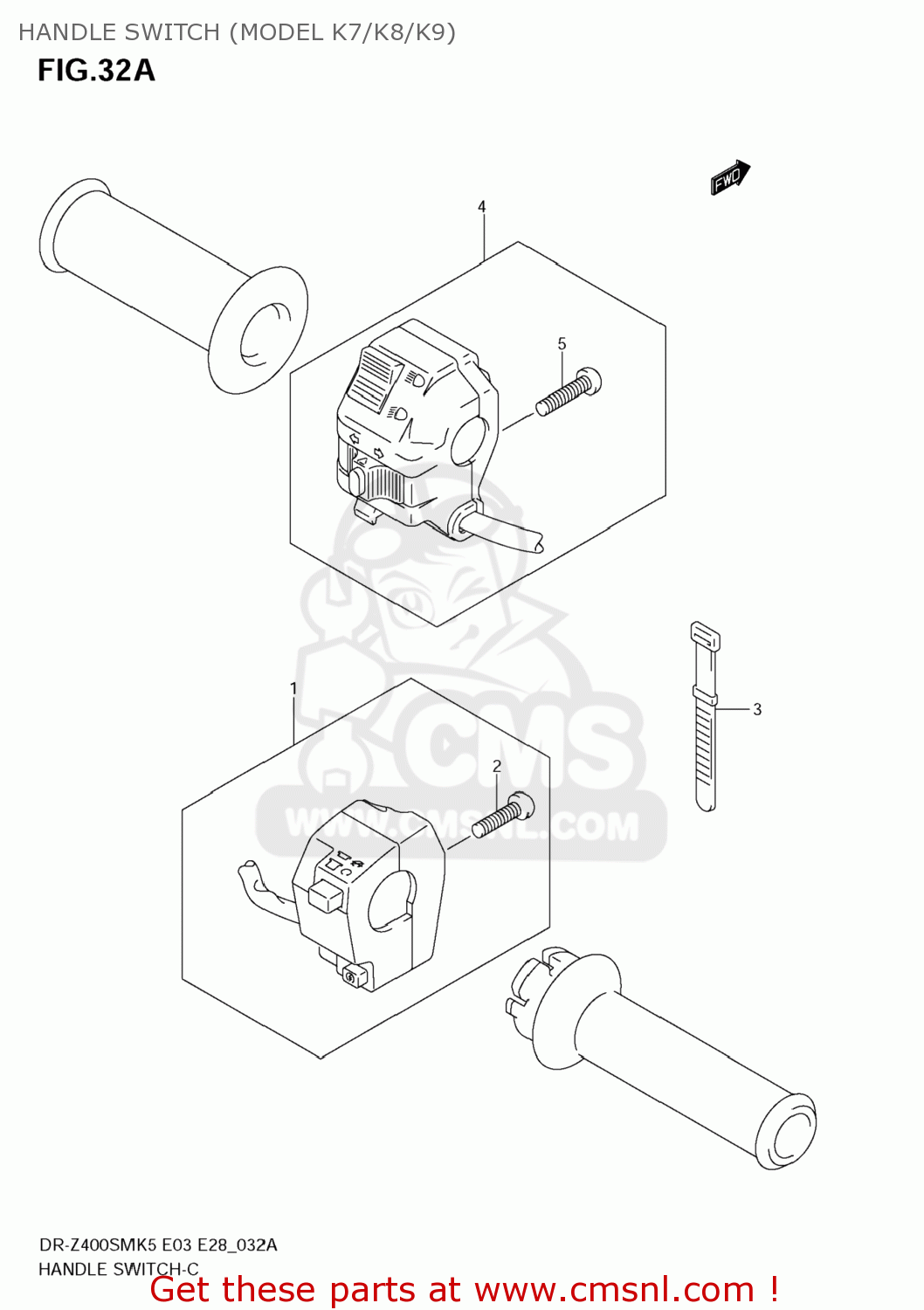

Handle switch (model k7/k8/k9) diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1-1

3720029F10
ref: 1-1
37200-29F11

SCHAKELAAR RH

€ 96.50

1-2

3720029F40
ref: 1-2

SWITCH ASSY,HAN

€ 75.50

021120425B
ref: 2

SCREW

€ 2.00

0940712402
ref: 3

CLAMP(L:120)

€ 3.00

4-1

3740029F20
ref: 4-1

SWITCH ASSY,HANDLE,L

€ 0.00

4-2

3740029F50
ref: 4-2
37400-29F51

SWITCH ASSY,HANDLE,L

€ 94.50

021120530B
ref: 5

SCREW

€ 1.50
