LEFT HANDLE LEVER

DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

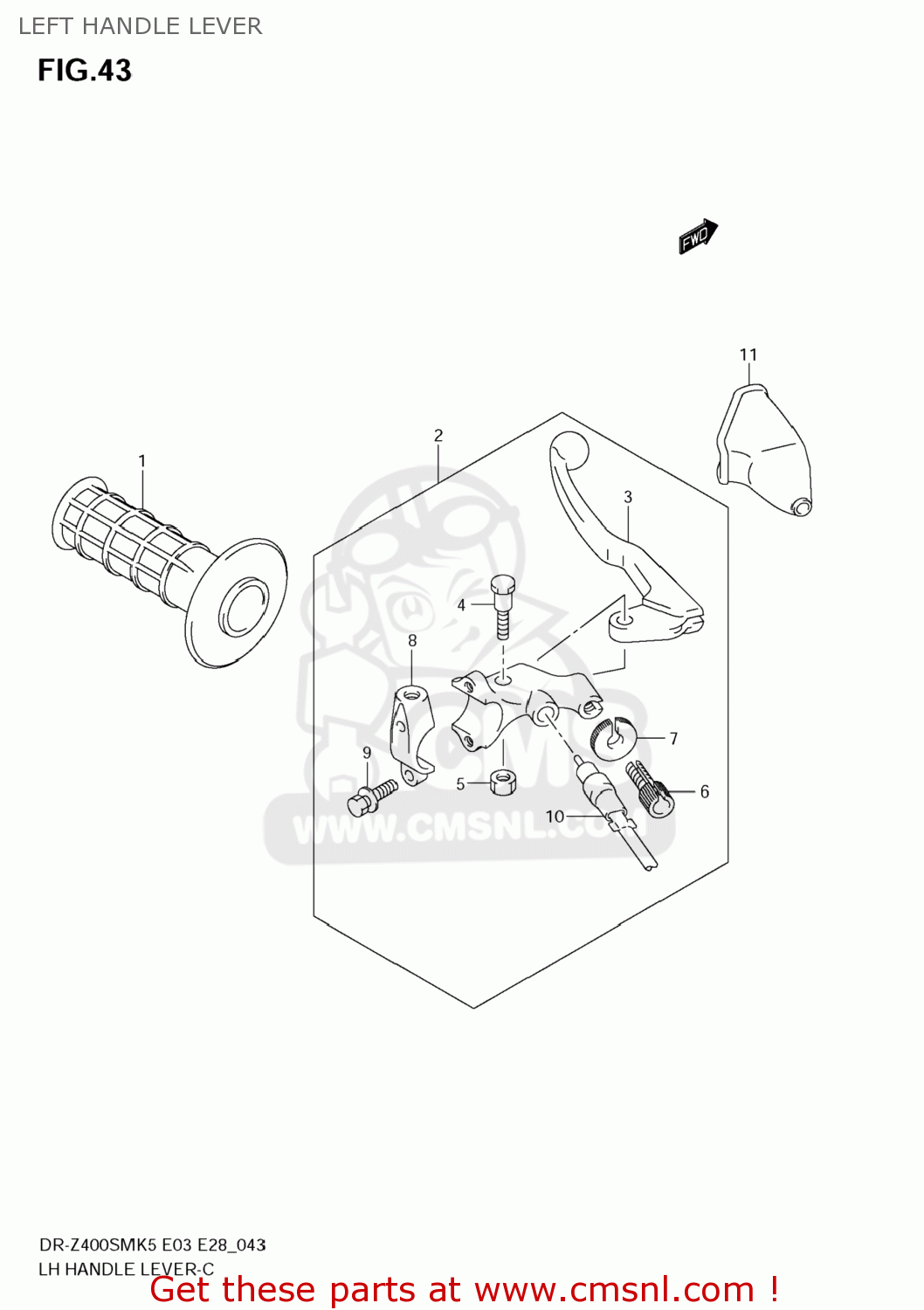

Left handle lever diagram DR-Z400SM 2007 (K7) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

5721112D00
ref: 1

GRIP,L

€ 14.50

5750029F30
ref: 2
57500-29F31

LEVER ASSY,CLUTCH

€ 55.50

5762113E00
ref: 3

LEVER,CLUTCH

€ 17.00

5743121D11
ref: 4

BOLT,LEVER PIVOT

€ 10.50

0831921068
ref: 5
08319-2106A

NUT 6MM

€ 2.00

5744129F00
ref: 6

ADJUSTER,WIRE

€ 8.50

5744245C00
ref: 7

NUT,LOCK

€ 7.50

5751213E00
ref: 8

BRACKET,HOLDER

€ 11.50

5751313E00
ref: 9

BOLT,BRACKET

€ 3.50

5756013E00
ref: 10
57560-13E02

SWITCH ASSEMBLY,CLUTCH

€ 15.00

5734129F01
ref: 11

COVER,CLUTCH CABLE DUST

€ 8.00
