CARBURETOR

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

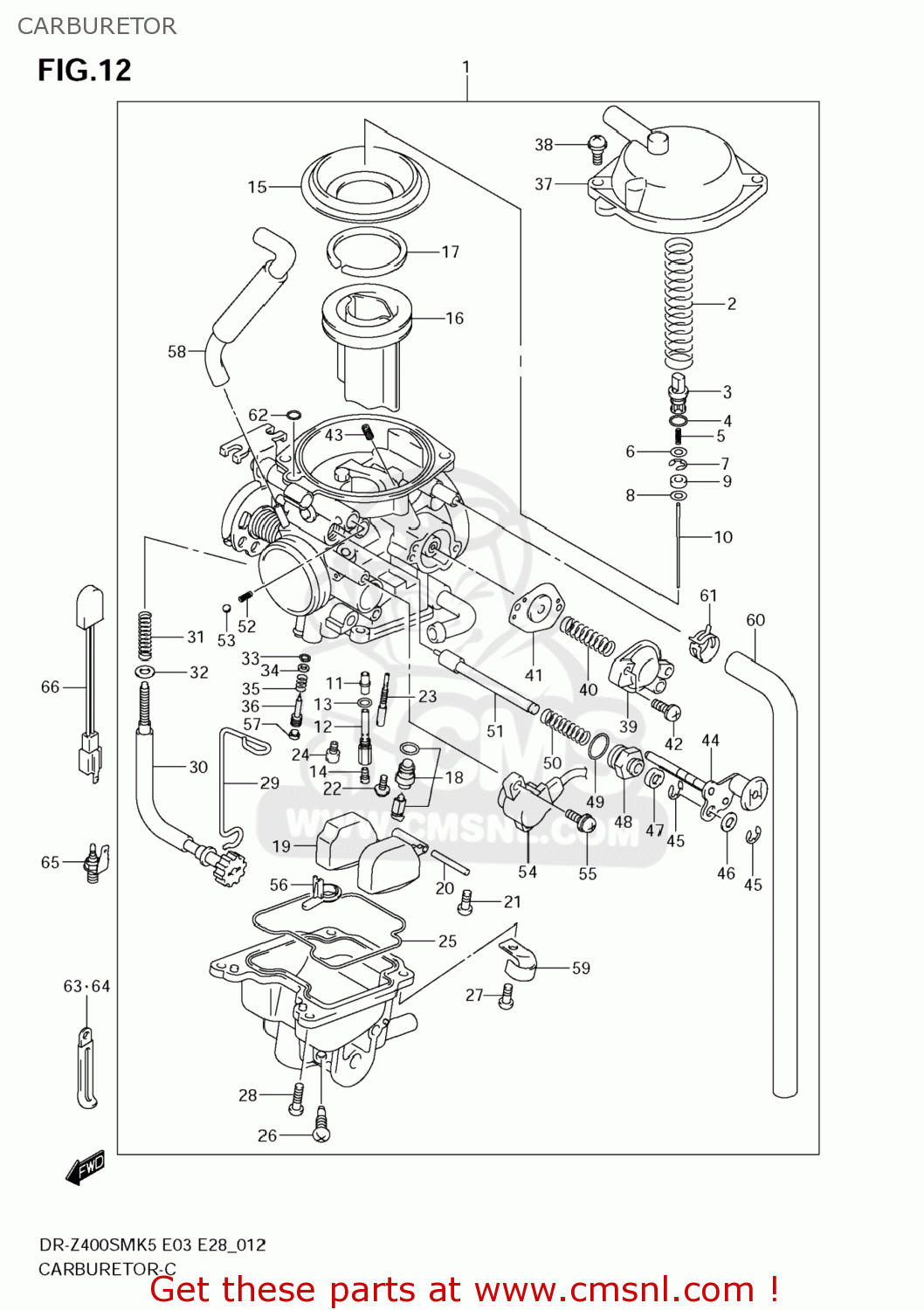

Carburetor diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

CARBURETOR DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
CARBURETOR DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
CARBURETOR DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1-1
1320029FB2
ref: 1-1
13200-29FB4
CARBURETOR ASSY
€ 281.50
1-2
1320029FB3
ref: 1-2
13200-29FB4
CARBURETOR ASSY
€ 281.50
1-3
1320029FB4
ref: 1-3
CARBURETOR ASSY
€ 281.50
1-4
1320029FC2
ref: 1-4
13200-29FC3
CARBURETOR ASSY
€ 281.50
1-5
1320029FC3
ref: 1-5
CARBURETOR ASSY
€ 281.50
2
1357307F00
ref: 2
SPRING
1357307F00
€ 9.00
3
1341833E00
ref: 3
HOLDER
1341833E00
€ 4.50
4
0928005004
ref: 4
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
5
1348104F00
ref: 5
SPRING
1348104F00
€ 2.50
6
1338219E00
ref: 6
WASHER
1338219E00
€ 3.00
7
1339417E60
ref: 7
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
8
1338713F00
ref: 8
RING
1338713F00
€ 6.00
9
1329129FA0
ref: 9
WASHER
1329129FA0
€ 2.50
10
1338329FB0
ref: 10
NEEDLE,JET
€ 14.50
11
0949400939
ref: 11
JET
0949400939
€ 26.00
12
1338529FA0
ref: 12
HOLDER,JET
1338529FA0
€ 22.00
13
1324643010
ref: 13
O RING
1324643010
€ 4.00
14
0949128012
ref: 14
JET,MAIN(142.5)
0949128012
€ 10.50
15
1350717C01
ref: 15
DIAPHRAGM
1350717C01
€ 24.50
16
1350129FA0
ref: 16
VALVE,PISTON
1350129FA0
€ 57.50
17
1350414E00
ref: 17
RING
1350414E00
€ 4.00
18
1337029FA0
ref: 18
VALVE ASSY,NEEDLE
1337029FA0
€ 49.00
19
1325004F00
ref: 19
FLOAT ASSY
1325004F00
€ 27.50
20
1325401010
ref: 20
PIN,FLOAT
1325401010
€ 3.00
21
021120408B
ref: 21
SCREW
021120408B
€ 2.00
22
1360205A10
ref: 22
SCREW
1360205A10
€ 4.00
23
0949222014
ref: 23
JET,PILOT(22.5)
0949222014
€ 11.50
24
0949162006
ref: 24
JET,MAIN(62.5)
0949162006
€ 6.00
25
1325804F00
ref: 25
GASKET (NAS)
1325804F00
€ 9.00
26
1324713A00
ref: 26
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
27
0211204107
ref: 27
SCREW
0211204107
€ 2.00
28
021120412A
ref: 28
SCREW
021120412A
€ 1.50
29
1367129FA0
ref: 29
CLIP
€ 12.00
30
1326729FA0
ref: 30
SCREW,ADJUST
1326729FA0
€ 40.00
31
1326837420
ref: 31
SPRING,THROTTLE SCREW
1326837420
€ 3.50
32
1361543010
ref: 32
WASHER,STARTER SHAFT
1361543010
€ 2.50
33
1329529900
ref: 33
O RING,PILOT AIR SCREW
1329529900
€ 4.00
34
1329129900
ref: 34
WASHER
1329129900
€ 2.00
35
1326848700
ref: 35
SPRING,THROTTLE SCREW
1326848700
€ 3.50
36
1327933E00
ref: 36
ADJUSTER
1327933E00
€ 9.50
37
1350229FA0
ref: 37
COVER ASSY,DIAPHRAGM
1350229FA0
€ 31.50
38
1324733E00
ref: 38
SCREW
1324733E00
€ 3.00
39-1
1350210F00
ref: 39-1
COVER ASSY
1350210F00
€ 26.00
39-2
1350208F00
ref: 39-2
COVER,DIAPHRAGM
1350208F00
€ 32.00
40
1348141F20
ref: 40
SPRING
1348141F20
€ 4.50
41
1348010F00
ref: 41
DIAPHRAGM ASSY
1348010F00
€ 15.50
42
1360104148
ref: 42
SCREW
1360104148
€ 2.50
43
0949227010
ref: 43
JET,POWER(135)
€ 12.50
44
1342029FA0
ref: 44
PLATE ASSY
€ 42.50
45
1341538300
ref: 45
E RING
1341538300
€ 2.00
46
1342738300
ref: 46
WASHER
1342738300
€ 1.50
47
1368231210
ref: 47
CAP,STARTER VALVE
1368231210
€ 5.00
48
1341844080
ref: 48
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
49
1327847090
ref: 49
O RING
1327847090
€ 2.00
50
1341743010
ref: 50
SPRING
1341743010
€ 3.50
51
1341129FA0
ref: 51
PLUNGER ASSY
1341129FA0
€ 20.00
52
1343443010
ref: 52
SPRING
1343443010
€ 6.50
53
1359693010
ref: 53
BALL,CARBURETOR
1359693010
€ 3.50
54
1358021F00
ref: 54
SENSOR ASSY
1358021F00
€ 86.50
55
1360219B50
ref: 55
SCREW
1360219B50
€ 3.00
56
1338729FA1
ref: 56
RING
1338729FA1
€ 9.00
57
1328105A00
ref: 57
PLUG
1328105A00
€ 3.50
58
1368329FB0
ref: 58
HOSE
€ 0.00
59
1367114D00
ref: 59
PLATE
€ 3.00
60
1368429FB0
ref: 60
HOSE,AIR VENT(6.5X10.5)
€ 22.00
61
1367119F00
ref: 61
CLIP
1367119F00
€ 3.50
62
1329533010
ref: 62
O RING
1329533010
€ 4.50
63-1
0940406432
ref: 63-1
CLAMP(L:65)
0940406432
€ 2.50
63-2
0940406429
ref: 63-2
CLAMP(L:45)
€ 2.50
64
0940408420
ref: 64
CLAMP(L:120 T:1.0)
0940408420
€ 3.50
65
1365025E01
ref: 65
HEATER ASSY,CARBURETOR(15W)
1365025E01
€ 35.00
66
1365516F00
ref: 66
THERMO SWITCH,CARB HEATER
1365516F00
€ 41.00
