CYLINDER

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

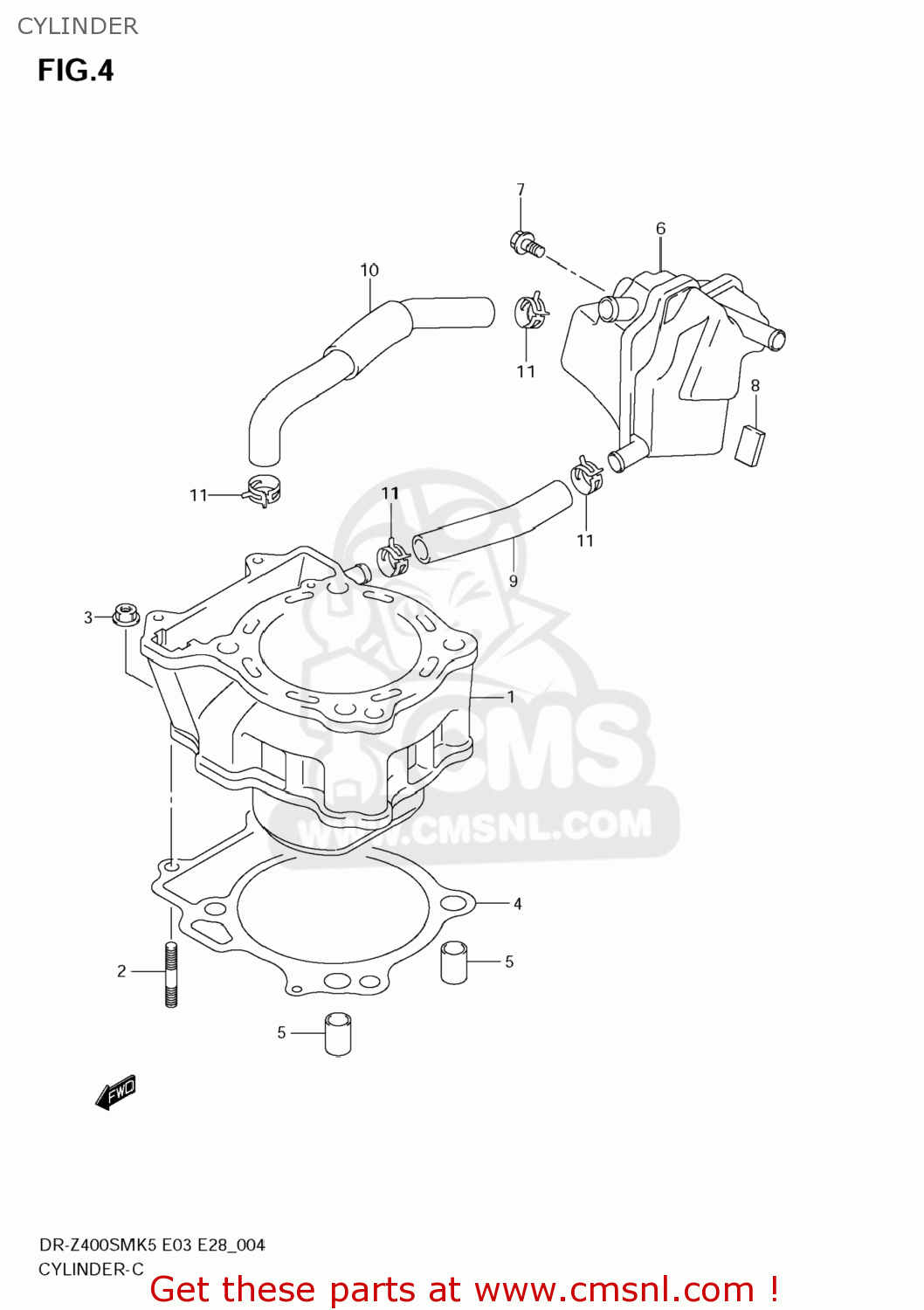

Cylinder diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1121029F200F0
ref: 1

CYLINDER

€ 467.00

014210625B
ref: 2

BOLT,STUD

€ 2.50

083161006B
ref: 3

NUT

€ 2.50

1124129F11
ref: 4

GASKET,CYLINDER (NAS)

€ 19.00

0421113189
ref: 5

PIN

€ 2.50

1133029F00
ref: 6

TANK,OIL RETURN

€ 35.00

7-1

015500610B
ref: 7-1

BOLT

€ 2.50

7-2

015500610A
ref: 7-2

BOLT

€ 2.00

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

1133229F00
ref: 9

HOSE,BREATHER

€ 9.00

1133329F00
ref: 10

HOSE,BREATHER

€ 17.00

0940115404
ref: 11

CLIP

€ 2.50
