REAR WHEEL (MODEL K7/K8/K9)

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

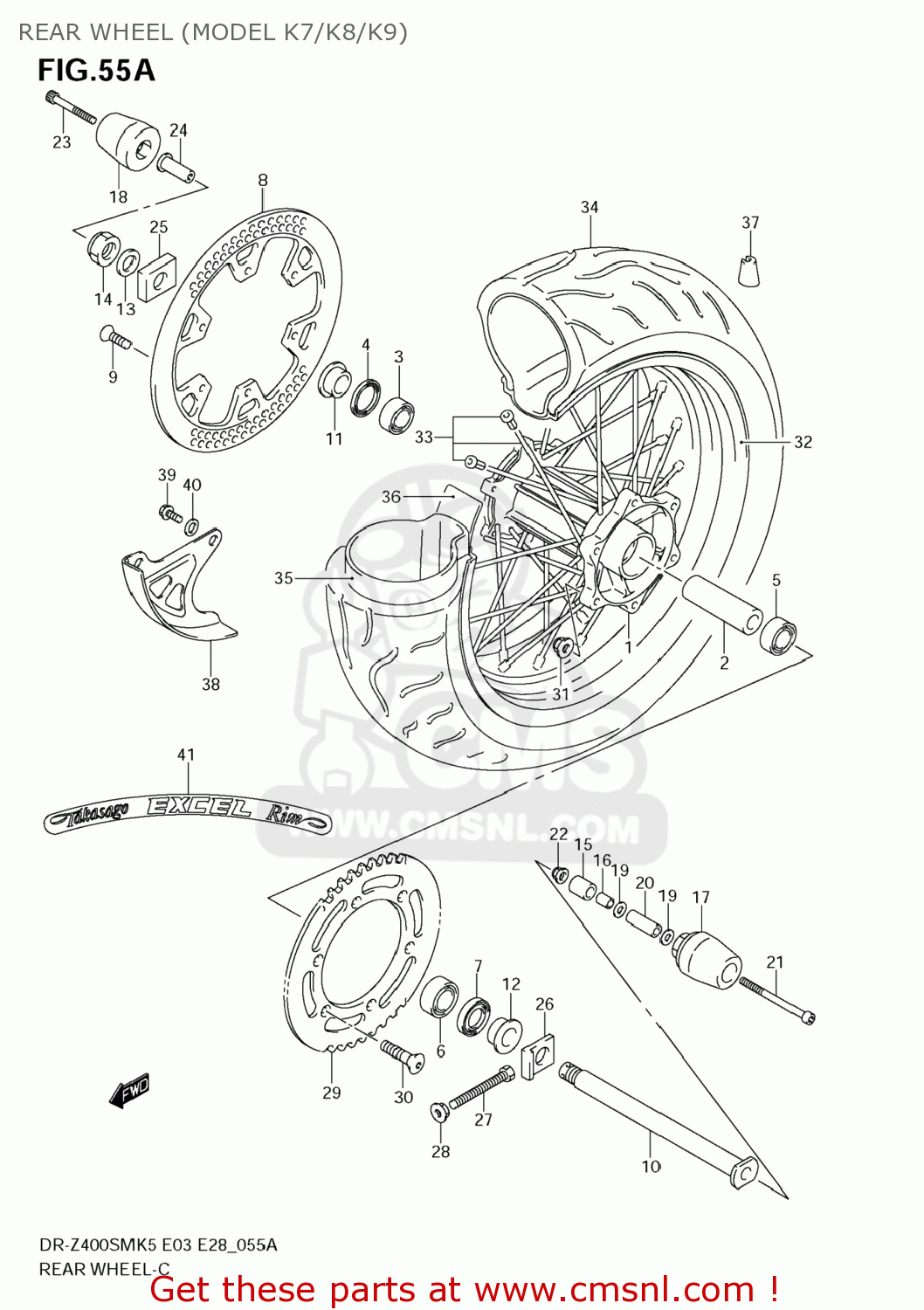

Rear wheel (model k7/k8/k9) diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

REAR WHEEL (MODEL K7/K8/K9) DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

REAR WHEEL (MODEL K7/K8/K9) DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

6411129F10
ref: 1

6411129F10

2

6473129F00
ref: 2

6473129F00

3

0813360047
ref: 3

0813360047

4

6484128E00
ref: 4

6484128E00

5

0813360047
ref: 5

0813360047

6

0812362047
ref: 6

0812362047

7

0928329006
ref: 7

0928329006

8

6921129F00
ref: 8

6921129F00

9

0912006014
ref: 9

0912006014

10

6471129F40
ref: 10

6471129F40

11

6475128E20
ref: 11

6475128E20

12

6475128E20
ref: 12

6475128E20

13

0916019022
ref: 13

0916019022

14

083192118A
ref: 14

083192118A

15

5474429F00
ref: 15

5474429F00

16

0918005048
ref: 16

0918005048

17

6475529F00
ref: 17

6475529F00

18

5475529F00
ref: 18

5475529F00

19

0916005029
ref: 19

0916005029

20

0918005060
ref: 20

0918005060

21

0910605021
ref: 21

0910605021

22

083162005B
ref: 22

083162005B

23

071300540A
ref: 23

071300540A

24

0915905050
ref: 24

0915905050

25

6144529F00
ref: 25

6144529F00

26

6144629F00
ref: 26

6144629F00

27

0910008287
ref: 27

0910008287

28

0915908034
ref: 28

0915908034

29

6451114E00
ref: 29

6451114E00

30

0912008010
ref: 30

0912008010

31

083193108A
ref: 31

083193108A

32

6531129F30
ref: 32

6531129F30

33

6532029F30
ref: 33

6532029F30

34

6511029FA0
ref: 34

6511029FA0

34

6511029FA0
ref: 34

6511029FA0

35

6520029FA0
ref: 35

6520029FA0

36

6526129FA0
ref: 36

6526129FA0

37-1

5541126G00
ref: 37-1

5541126G00

37-2

5541241F00
ref: 37-2

5541241F00

37-3

5541341F00
ref: 37-3

5541341F00

38

6923137F11
ref: 38
69231-37F12

6923137F11

39

0910306256
ref: 39

0910306256

40

0832201067
ref: 40

0832201067

41-1

6839029F00CVZ
ref: 41-1

6839029F00CVZ

41-1

6839029F00CVZ
ref: 41-1

6839029F00CVZ

41-2

6839029F00C9Y
ref: 41-2

6839029F00C9Y

41-2

6839029F00C9Y
ref: 41-2

6839029F00C9Y
