REAR CALIPER

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

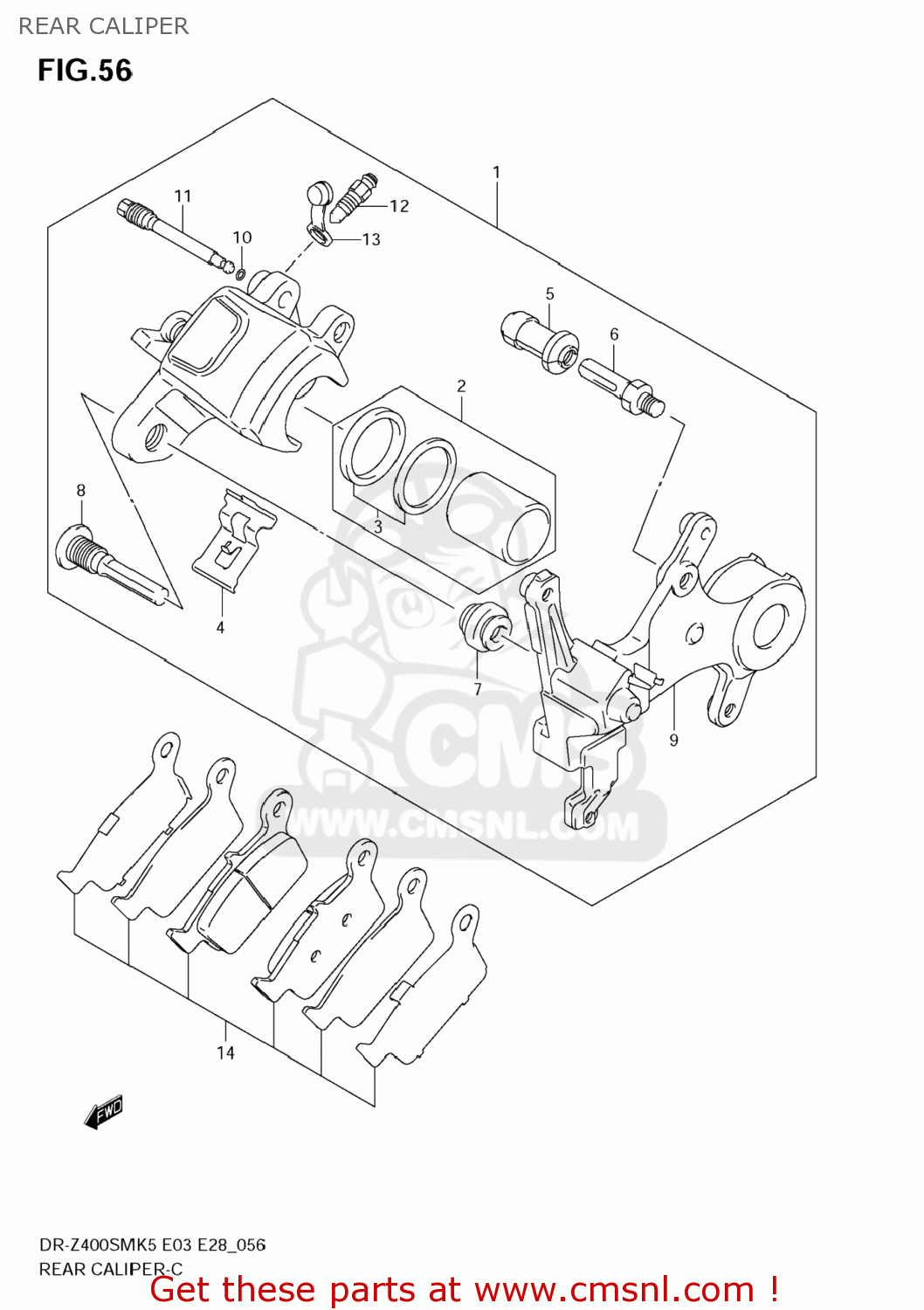

Rear caliper diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

6910029F00999
ref: 1

CALIPER ASSY,RR

€ 400.00

6910043810
ref: 2

PISTON SET

€ 31.50

6910036810
ref: 3

SEAL SET,PISTON

€ 13.00

5931536E00
ref: 4

SPRING,PAD

€ 6.50

5938613A00
ref: 5

BOOT

€ 6.50

5938227C30
ref: 6

BOLT

€ 7.50

5930314500
ref: 7

BOOT

€ 5.50

5930536E00
ref: 8

PIN,BOLT

€ 12.50

6935029F00
ref: 9

BRACKET

€ 107.00

5914537F00
ref: 10

RING,STOPPER

€ 3.50

6934537F00
ref: 11

PIN,HANGER

€ 13.50

5912101A00
ref: 12

BLEEDER

€ 8.50

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

6910036850
ref: 14

PAD & RETAINER SET

€ 56.00
