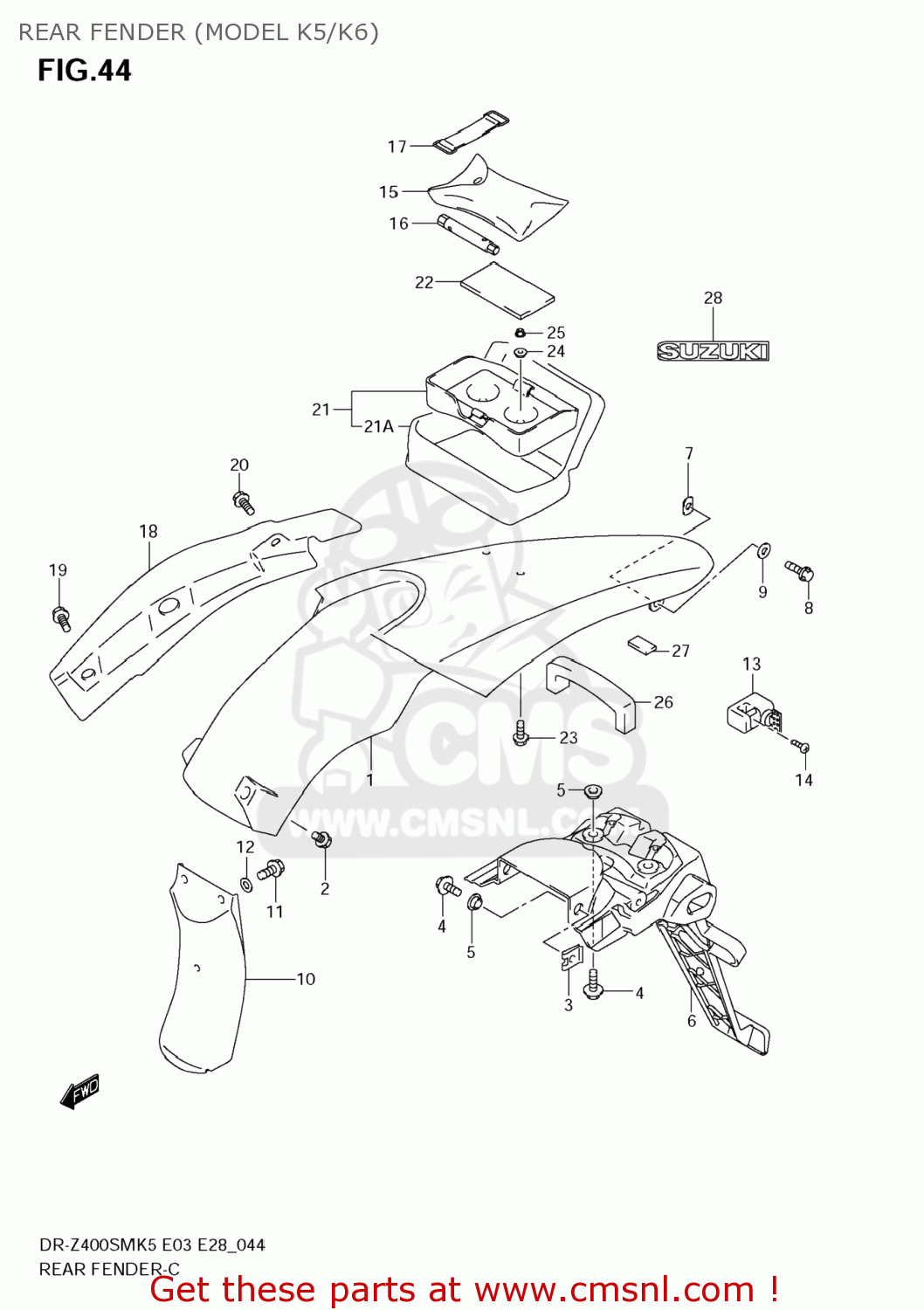

REAR FENDER (MODEL K5/K6)

ref

part #

description

quantity

1-1

6311329F41019
ref: 1-1
63113-29FA0-019

FENDER,REAR

€ 37.00

1-2

6311329F41YU1
ref: 1-2
63113-29FA0-YU1

FENDER,REAR(YE

€ 105.00

2

0911306001
ref: 2

BOLT(6X16)

€ 3.00

3

6331213E00
ref: 3
63312-13E01

PLATE,REAR FENDER FITTING

€ 4.00

4

0911606115
ref: 4

BOLT(6X20)

€ 2.00

5

0916906073
ref: 5

WASHER

€ 4.00

6

6331129FA0
ref: 6
63311-29FA1

EXTENSION,REAR

€ 47.00

7

9448424F00
ref: 7

NUT,COWL

€ 4.00

8

015500512B
ref: 8

BOLT

€ 2.50

9

0916905021
ref: 9
09169-05024

WASHER (5X14X1)

€ 2.00

10

6341129F00
ref: 10

MUDGUARD,RR FENDER FR

€ 10.00

11

015470616B
ref: 11

BOLT

€ 2.50

12

0916906045
ref: 12
09169-06055

WASHER

€ 2.50

13

9570044810
ref: 13
95700-41821

LOCK SET,HELMET

€ 88.00

14

0913906089
ref: 14

SCREW(6X14)

€ 2.50

15

0980021042
ref: 15

TOOL ASSY

€ 48.50

16

0981600186
ref: 16

SPARK PLUG WRENCH(8X10)

€ 8.50

17

0946200008
ref: 17

BAND

€ 4.50

18

6311429F00
ref: 18

MUDGUARD,RR FENDER,R

€ 16.50

19

0911106081
ref: 19

BOLT(6X18)

€ 4.50

20

6316143E00
ref: 20

BOLT

€ 3.00

21

9490029FB1
ref: 21

BAG ASSY,SEAT TAIL

€ 106.00

21A

9491029FB0
ref: 21A

BAG,SEAT TAIL

€ 55.00

22

9491544E00
ref: 22

CUSHION,RR BAG

€ 6.50

23

015500620B
ref: 23

BOLT

€ 2.50

24

0916906063
ref: 24

WASHER

€ 3.50

25

0915906078
ref: 25

NUT

€ 2.50

26

4716129B00
ref: 26

SEALER,SIDE COVER L

€ 3.50

27

3365137000
ref: 27

PROTECTOR(170X95X3.0)

€ 5.00

28-1

6872113A00CT5
ref: 28-1

EMBLEM,SUZUKI

€ 7.50

28-2

6872113A00GY8
ref: 28-2

EMBLEM,RR

€ 7.50

28-3

6872113A00CFL
ref: 28-3

EMBLEM,SUZUKI

€ 10.00
