ELECTRICAL

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

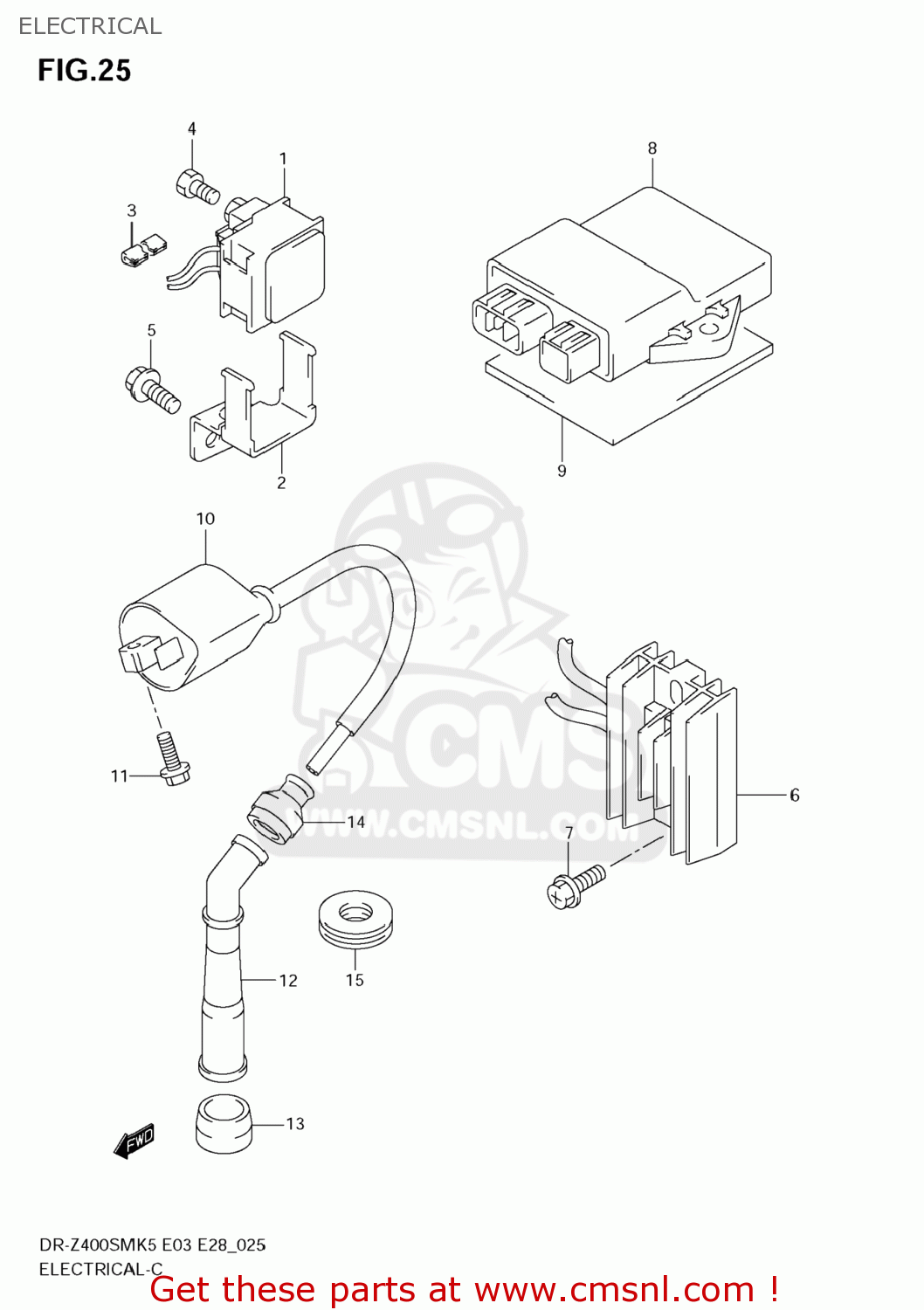

Electrical diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

ELECTRICAL DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

ELECTRICAL DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

3180029F00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 71.50

2

3181129F00
ref: 2

BRACKET,STARTING MOTOR RELAY

€ 4.50

3

3181229F00
ref: 3

PROTECTOR,STARTING MOTOR LEAD

€ 3.50

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

015500612B
ref: 5

BOLT

€ 2.50

6

3280029F00
ref: 6

RECTIFIER ASSY

€ 184.00

7

021620620B
ref: 7

SCREW

€ 2.00

8

3290029FD0
ref: 8

CDI UNIT

€ 0.00

9

3365137000
ref: 9

PROTECTOR(170X95X3.0)

€ 5.00

9

3365137000
ref: 9

PROTECTOR(170X95X3.0)

€ 5.00

10

3341009F00
ref: 10

COIL ASSY,IGNITION

€ 76.50

11

015470616B
ref: 11

BOLT

€ 2.50

12

3351048B10
ref: 12

CAP,SPARK PLUG

€ 29.50

13

3354123E10
ref: 13

SEAL,SPARK PLUG

€ 5.00

14

3354238B00
ref: 14

SEAL,HIGH TENSION CORD

€ 4.50

15

3354333E01
ref: 15

COVER,SPARK PLUG CAP

€ 4.00
