RIGHT HANDLE LEVER

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

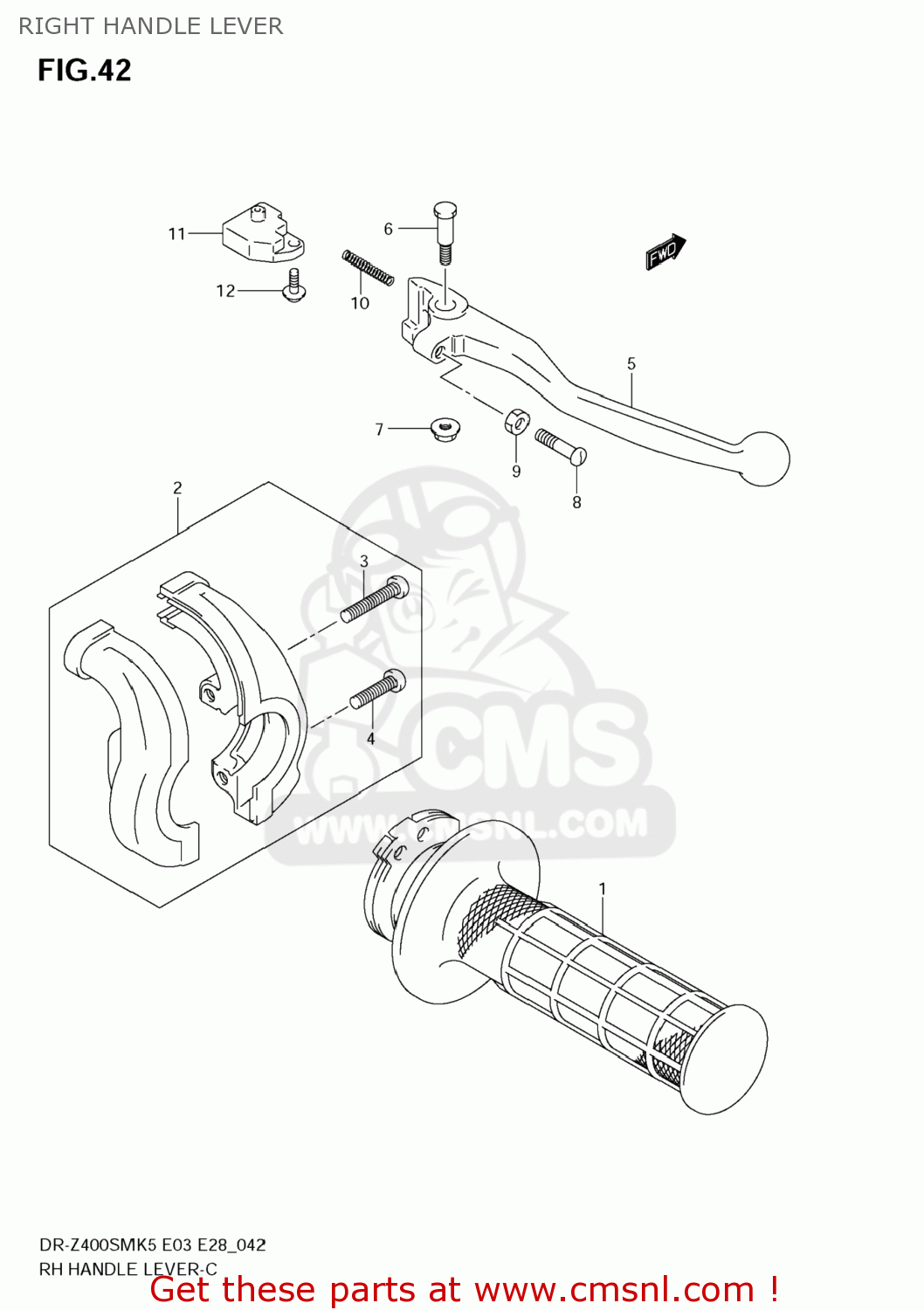

Right handle lever diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

5711012D11
ref: 1

GRIP,THROTTLE

€ 25.50

5710014D00
ref: 2

CASE ASSY,THROTTLE

€ 24.00

0912505066
ref: 3

SCREW(5X25)

€ 2.00

021120520B
ref: 4

SCREW

€ 2.50

5742144E00
ref: 5

LEVER,BRAKE

€ 14.00

5743114500
ref: 6

BOLT,BRAKE LEVER

€ 4.00

083192106A
ref: 7

NUT

€ 2.00

5743114511
ref: 8

BOLT,ADJUST

€ 3.50

083100005A
ref: 9

NUT

€ 2.50

5731814502
ref: 10

SPRING,RETURN

€ 3.00

5746017C11
ref: 11
57460-14J01

SWITCH ASSY,ST

€ 32.50

5746517C00
ref: 12

SCREW

€ 1.50
