MUFFLER

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

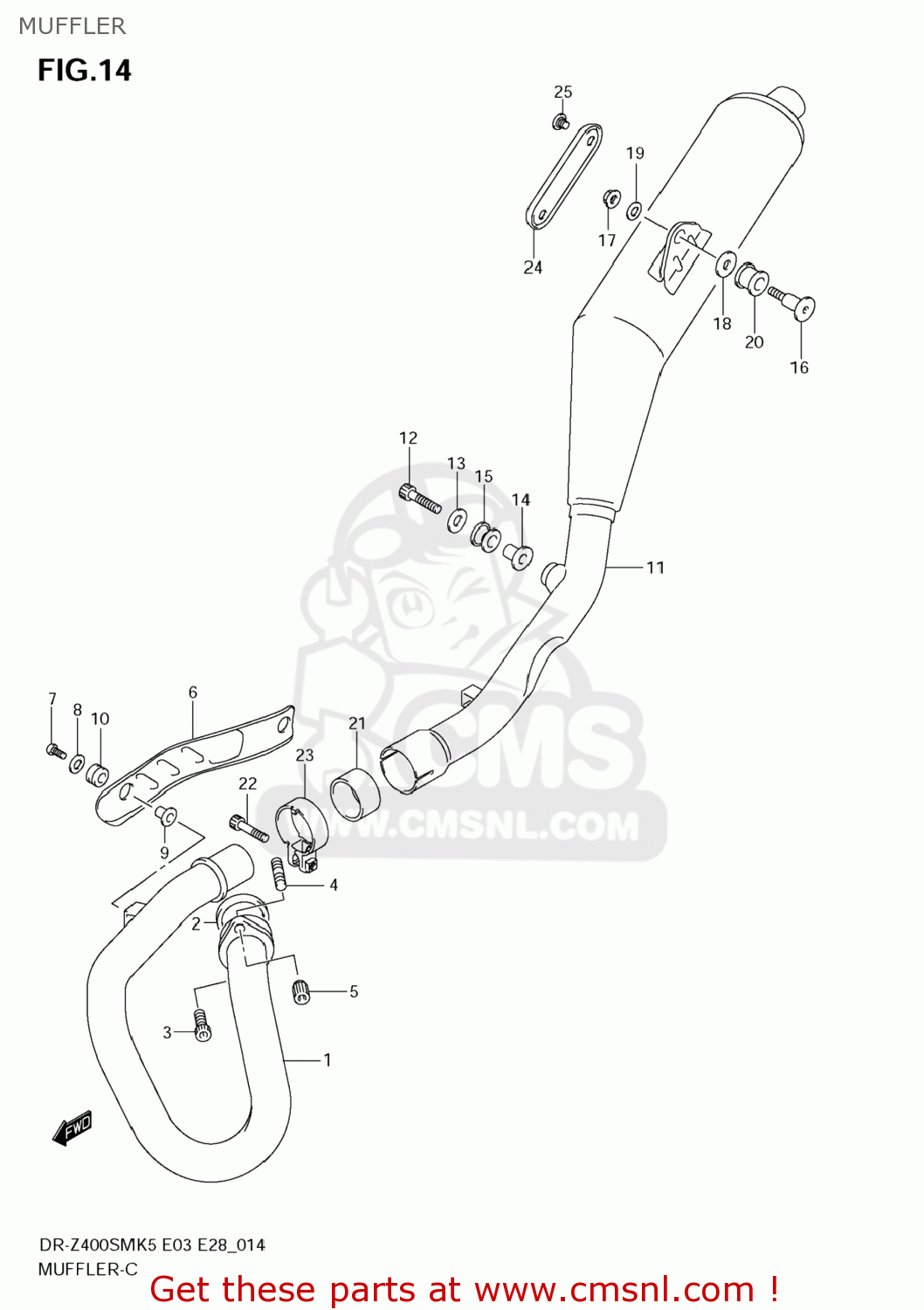

Muffler diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

MUFFLER DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
MUFFLER DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
MUFFLER DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
1415029F10
ref: 1
PIPE,EXHAUST
1415029F10
€ 148.50
2
1418129E02
ref: 2
GASKET,EXHAUST PIPE
1418129E02
€ 14.00
3
071300825B
ref: 3
BOLT
071300825B
€ 3.50
4
014210816B
ref: 4
BOLT,STUD
014210816B
€ 2.00
5
0915908112
ref: 5
NUT
0915908112
€ 4.50
6
1418029F30
ref: 6
COVER,EXHAUST PIPE
1418029F30
€ 37.00
7
0913906109
ref: 7
SCREW(6X16)
0913906109
€ 3.00
8
0916006056
ref: 8
WASHER(6.5X18X1)
0916006056
€ 2.00
9
1418507G00
ref: 9
SPACER,EXHAUST PIPE COVER
1418507G00
€ 2.00
10
0932008066
ref: 10
CUSHION
0932008066
€ 7.50
11
1431029FA0H01
ref: 11
BODY,MUFFLER
€ 413.00
12
0910608133
ref: 12
BOLT(8X35)
0910608133
€ 3.50
12
0910608133
ref: 12
BOLT(8X35)
0910608133
€ 3.50
13
0916008133
ref: 13
09160-08151
WASHER (8.5X26X1.6)
0916008133
€ 2.00
14
0918008151
ref: 14
SPACER(8.6X12X17.5)
0918008151
€ 6.00
15
0932012043
ref: 15
CUSHION
0932012043
€ 8.00
16
1441929F00
ref: 16
BOLT,MUF SPRT RR
1441929F00
€ 6.00
17
083193108B
ref: 17
NUT
083193108B
€ 2.50
18
0916008503
ref: 18
WASHER(8.5X30X2.3)
0916008503
€ 2.00
18
0916008503
ref: 18
WASHER(8.5X30X2.3)
0916008503
€ 2.00
19
083220108B
ref: 19
WASHER
083220108B
€ 1.50
19
083220108B
ref: 19
WASHER
083220108B
€ 1.50
20
0932012048
ref: 20
CUSHION
0932012048
€ 5.00
21
1477129F10
ref: 21
CONNECTOR,MUFFLER JOINT
1477129F10
€ 12.50
22
071200840B
ref: 22
BOLT
071200840B
€ 3.00
23
1445929F10
ref: 23
CLAMP,MUFFLER CONNECTOR
1445929F10
€ 10.50
24
1478229F00
ref: 24
COVER,MUFFLER
1478229F00
€ 14.50
25
1478929F01
ref: 25
SCREW
1478929F01
€ 2.50
