FRONT FORK BRACKET (MODEL K5/K6)

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

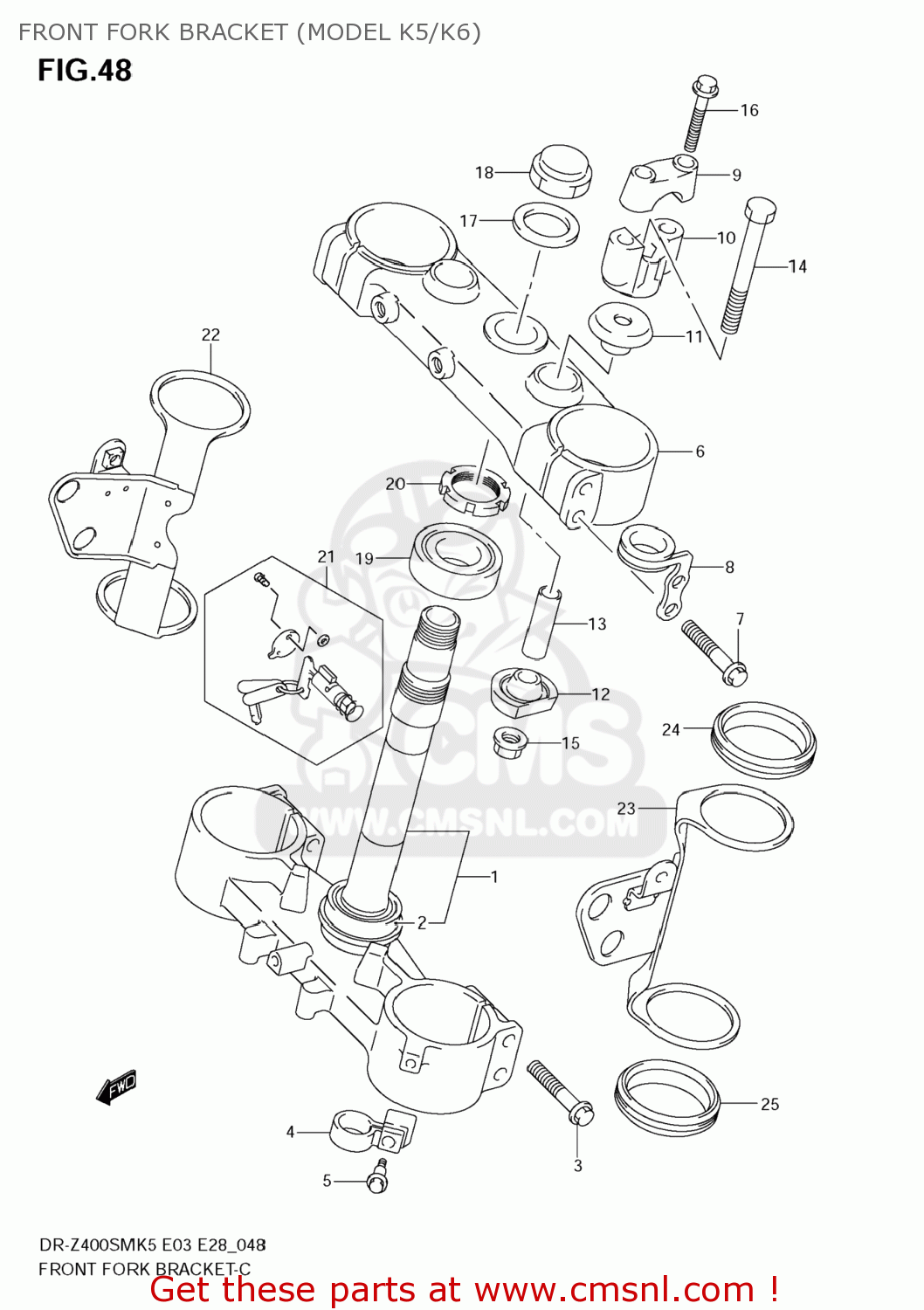

Front fork bracket (model k5/k6) diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

FRONT FORK BRACKET (MODEL K5/K6) DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
FRONT FORK BRACKET (MODEL K5/K6) DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
FRONT FORK BRACKET (MODEL K5/K6) DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1
5141029F70
ref: 1
BRACKET,UNDER
€ 709.00
2
0926530014
ref: 2
BEARING(30X52X16)
0926530014
€ 49.50
3
5116635F00
ref: 3
BOLT
5116635F00
€ 6.50
4
5862129F00
ref: 4
GUIDE,FR BRAKE HOSE
5862129F00
€ 9.50
5
0911106087
ref: 5
BOLT(6X20.5)
0911106087
€ 2.50
6
5131129F70
ref: 6
BRACKET,UPR
€ 352.00
7
5116635F00
ref: 7
BOLT
5116635F00
€ 6.50
8
5128029F00
ref: 8
GUIDE,CABLE
5128029F00
€ 16.50
9
5621129F00
ref: 9
HOLDER,HANDLEBAR UPR
5621129F00
€ 16.50
10
5622128C60
ref: 10
HOLDER,HANDLE UNDER
5622128C60
€ 43.00
11
5624142AE0
ref: 11
CUSHION,RUBBER
5624142AE0
€ 20.00
12
5624228C60
ref: 12
CUSHION,RUBBER UNDER
5624228C60
€ 22.50
13
5624342A00
ref: 13
SPACER
5624342A00
€ 6.00
14
5632127E00
ref: 14
BOLT,HANDLE HOLDER(10X70)
5632127E00
€ 6.00
15
0831931107
ref: 15
NUT
0831931107
€ 3.00
16
5132108G00
ref: 16
BOLT
€ 4.00
17
5135629E00
ref: 17
WASHER,STEM HEAD
5135629E00
€ 8.00
18
5135327G00
ref: 18
NUT
5135327G00
€ 22.00
19
0926530014
ref: 19
BEARING(30X52X16)
0926530014
€ 49.50
20
5163128E00
ref: 20
NUT,STEERING
5163128E00
€ 11.00
21
5190030901
ref: 21
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
22
5153029F10
ref: 22
BRACKET,HEADLAMP HOUSING,R
5153029F10
€ 20.50
23
5154029F10
ref: 23
BRACKET,HEADLAMP HOUSING,L
5154029F10
€ 20.50
24
5155329F10
ref: 24
DAMPER,HEADLAMP BRACKET UPR
5155329F10
€ 7.00
25
5155329F20
ref: 25
DAMPER,HEADLAMP BRACKET LWR
5155329F20
€ 7.00
