TAIL LAMP

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

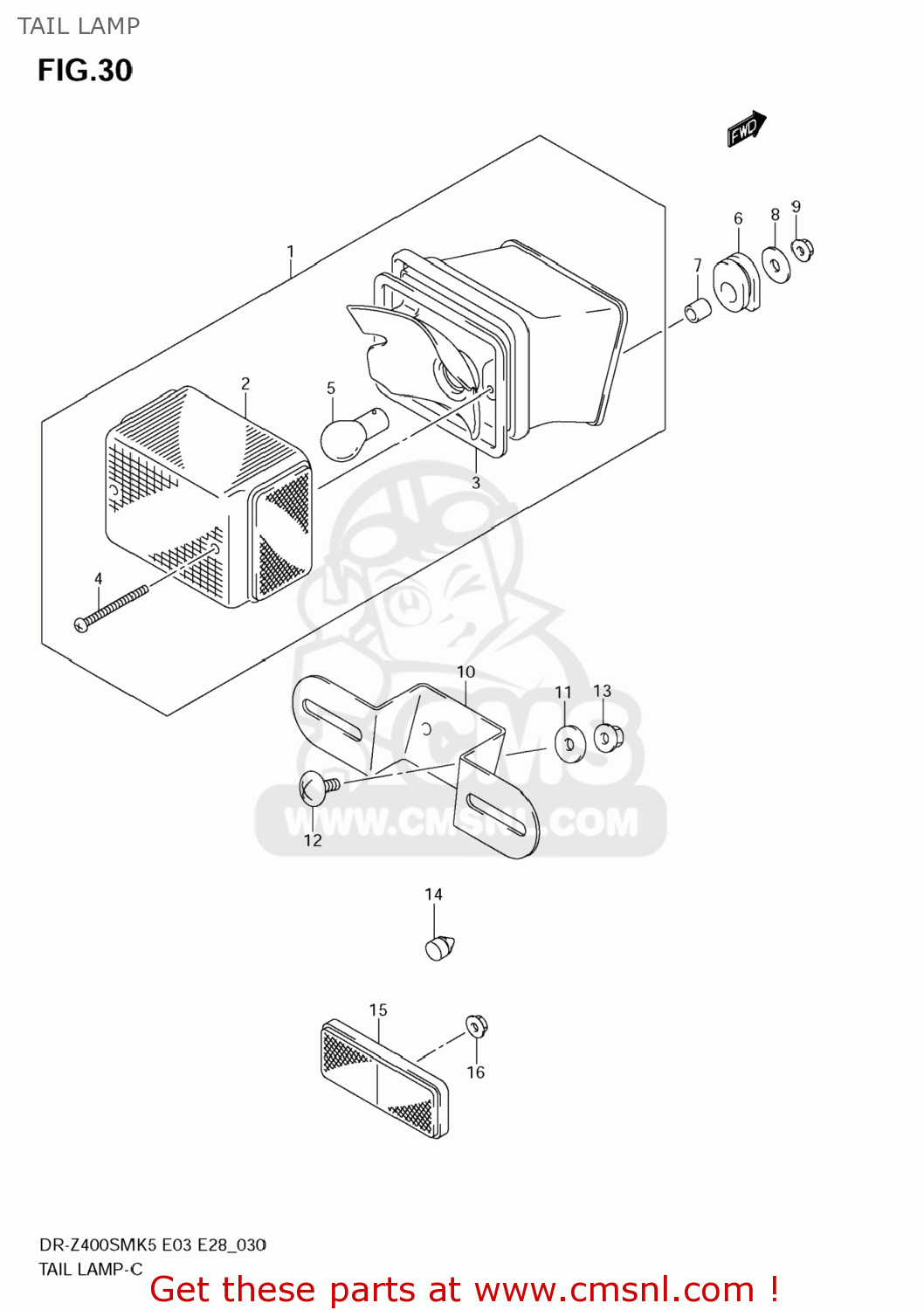

Tail lamp diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

TAIL LAMP DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

TAIL LAMP DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1

3571029F30
ref: 1

LAMP ASSY,RR COMBINATION

€ 120.00

2

3571242A30
ref: 2

LENS

€ 26.00

3

3571314D30
ref: 3

GASKET,LENS (NAS)

€ 5.00

4

0912504501
ref: 4

SCREW(4X45)

€ 3.00

5

0947112083
ref: 5
09471-12128

BULB(12V21/5W)

€ 6.00

6

3578129F00
ref: 6

CUSHION,RR COMBINATION

€ 4.00

7

0918006310
ref: 7

SPACER(6.5X10X10)

€ 2.00

8

0916006088
ref: 8

WASHER(6.5X20X1.6)

€ 2.00

9

083161006B
ref: 9

NUT

€ 2.50

10

3592729F10
ref: 10

BRACKET,LICENSE PLATE

€ 6.50

11

0916006088
ref: 11

WASHER(6.5X20X1.6)

€ 2.00

12

021420616B
ref: 12

SCREW

€ 1.50

13

083161006B
ref: 13

NUT

€ 2.50

14

0932106013
ref: 14

CUSHION

€ 2.50

15

3597007F01
ref: 15

REFLECTOR ASSY,RR

€ 20.50

16

083161005B
ref: 16

NUT

€ 2.50
