SEAT

DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

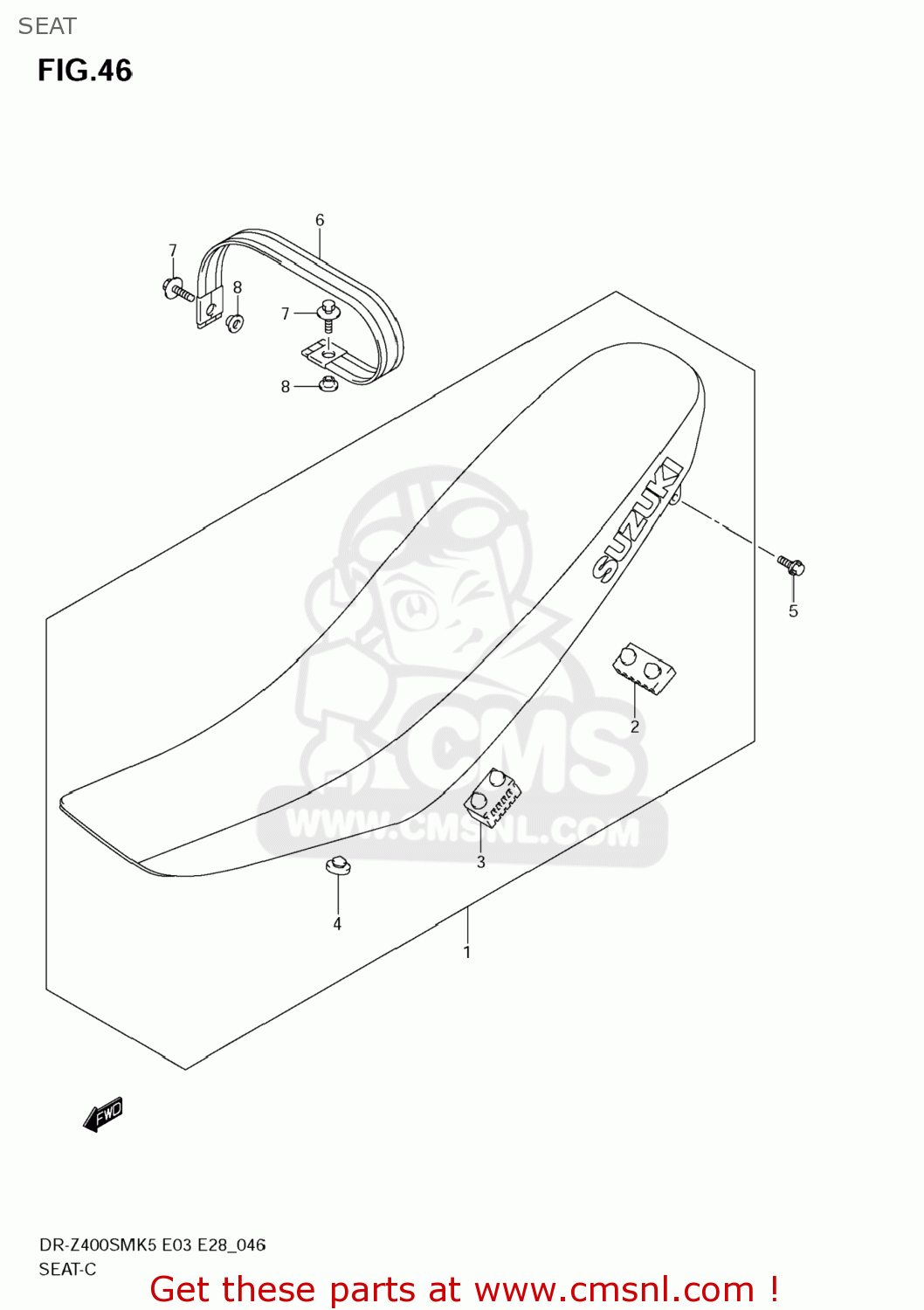

Seat diagram DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM

SEAT DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
SEAT DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
SEAT DR-Z400SM 2008 (K8) USA (E03) DRZ400SM DR Z400SM
prices are in EUR
ref
part #
description
quantity
1-1
4510029FE0BAE
ref: 1-1
SEAT ASSY
€ 225.00
1-2
4510029FE0BYD
ref: 1-2
SEAT ASSY
€ 224.00
1-3
4510029FE0CEP
ref: 1-3
SEAT ASSY
4510029FE0CEP
€ 328.00
1-4
4510029FE0BDL
ref: 1-4
SEAT ASSY
€ 260.00
1-5
4510029FE0DTU
ref: 1-5
SEAT ASSY
€ 223.50
1-6
4510029FE0DTV
ref: 1-6
SEAT ASSY
€ 254.50
1-7
4510029FE0BYD
ref: 1-7
SEAT ASSY
€ 224.00
1-8
4510029FE0DUZ
ref: 1-8
SEAT ASSY
4510029FE0DUZ
€ 235.00
1-9
4510029FE0BYD
ref: 1-9
SEAT ASSY
€ 224.00
2
4514912C00
ref: 2
CUSHION,SEAT(40X20X6)
4514912C00
€ 3.00
2
4514912C00
ref: 2
CUSHION,SEAT(40X20X6)
4514912C00
€ 3.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
4
0932110022
ref: 4
CUSHION
0932110022
€ 2.00
5
0911606182
ref: 5
BOLT(6X20)
0911606182
€ 3.00
6-1
4518029F00P21
ref: 6-1
BAND ASSY,SEAT
€ 35.50
6-2
4518029F00T5N
ref: 6-2
BAND ASSY,SEAT(GRAY)
4518029F00T5N
€ 47.00
6-3
4518029F00T7G
ref: 6-3
BAND ASSY,SEAT
4518029F00T7G
€ 48.50
6-4
4518029F00P21
ref: 6-4
BAND ASSY,SEAT
€ 35.50
6-5
4518029F00U5J
ref: 6-5
BAND ASSY,SEAT
€ 35.00
6-6
4518029F00P21
ref: 6-6
BAND ASSY,SEAT
€ 35.50
6-7
4518029F00U5J
ref: 6-7
BAND ASSY,SEAT
€ 35.00
6-8
4518029F00T5N
ref: 6-8
BAND ASSY,SEAT(GRAY)
4518029F00T5N
€ 47.00
7
0911606150
ref: 7
BOLT(6X25)
0911606150
€ 2.50
8
0916906063
ref: 8
WASHER
0916906063
€ 3.50
