CAM CHAIN (MODEL K5/K6)

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

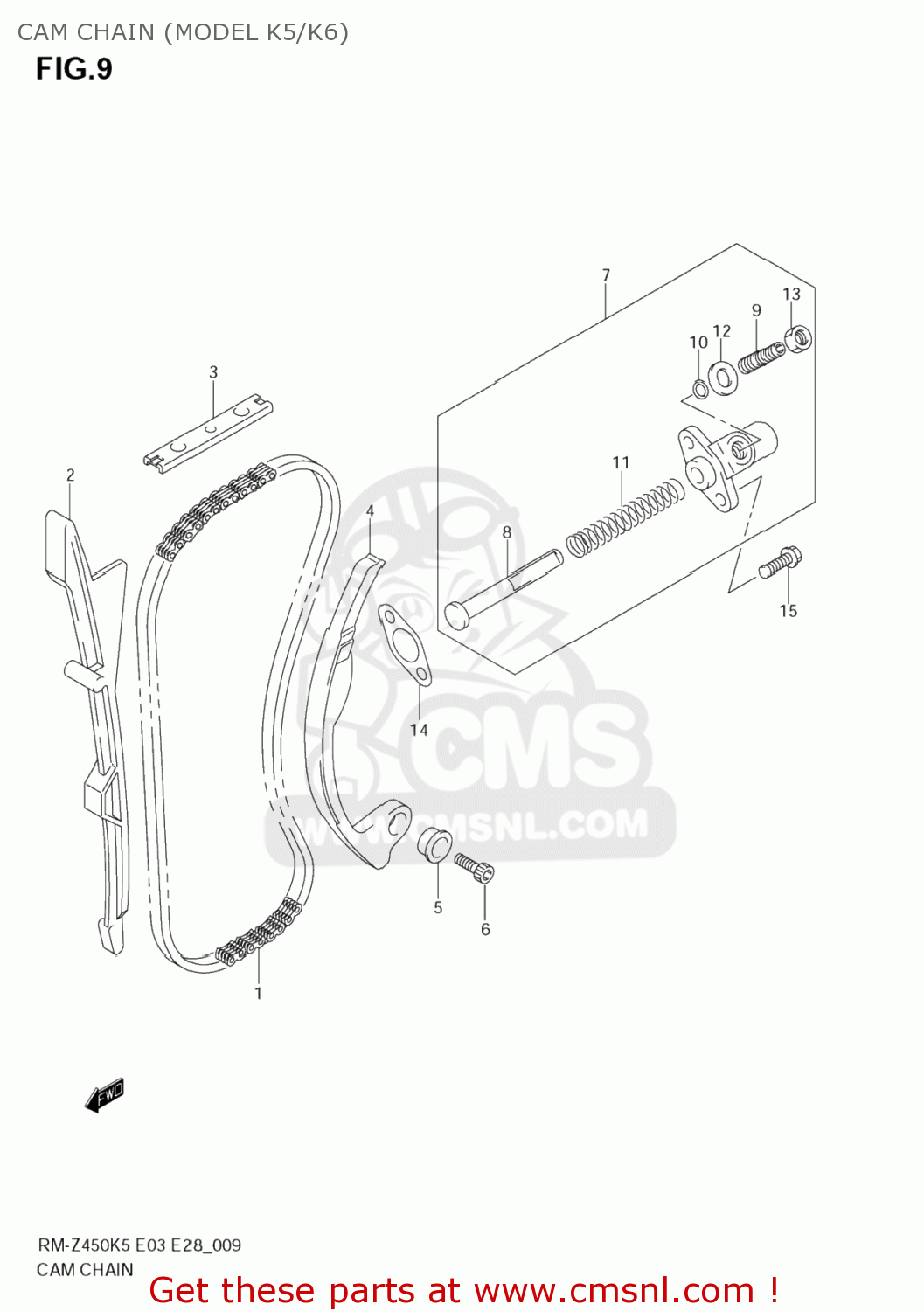

Cam chain (model k5/k6) diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1276011D00
ref: 1
12760-35G00

CHAIN COMP,CAM

€ 72.00

1277135G00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 28.00

1278235G00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 9.00

4-1

1281135G00
ref: 4-1

TENSIONER,CAM CHAIN

€ 47.00

4-2

1281135G10
ref: 4-2

TENSIONER,CAM CHAIN

€ 47.00

1281235G00
ref: 5

SPACER,CAM CHAIN TENSIONER

€ 7.50

0713006163
ref: 6
07130-0616B

BOLT,OIL FILLE

€ 3.00

1283035G00
ref: 7

ADJUSTER ASSY,TENSIONER

€ 94.00

1283235G00
ref: 8

ROD,PUSH

€ 9.00

1283835G00
ref: 9

BOLT,ADJUST

€ 8.50

0928006005
ref: 10

O RING(D:1.9,ID:5.7)

€ 2.50

0944011015
ref: 11

SPRING

€ 1.50

0821208162
ref: 12

WASHER

€ 0.50

0831000083
ref: 13
08310-0008A

NUT

€ 1.50

1283732410
ref: 14

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.50

0910306235
ref: 15
01547-06207

BOLT,6X20

€ 2.50

CAM CHAIN (MODEL K5/K6)

all assemblies
