REAR MASTER CYLINDER

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

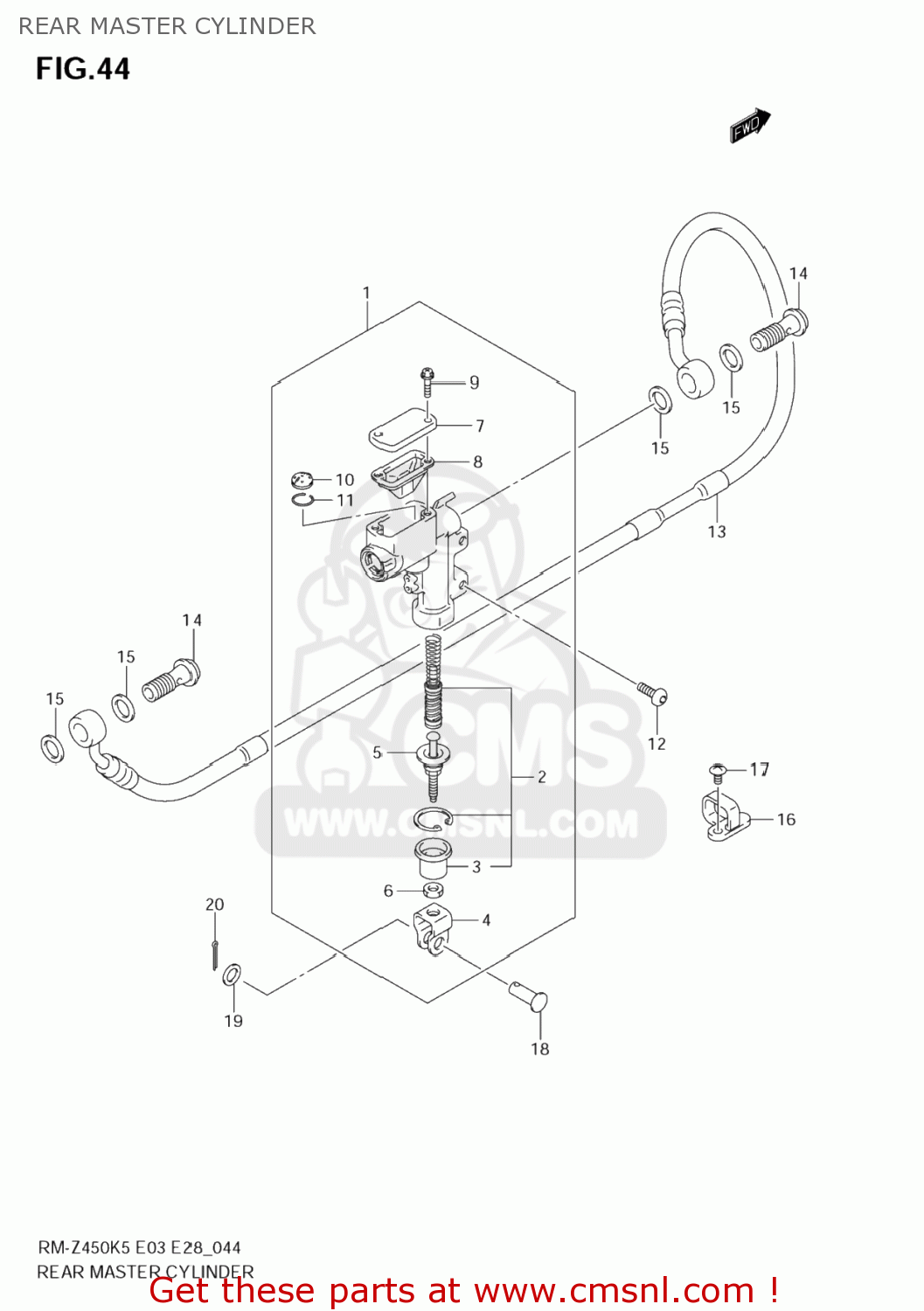

Rear master cylinder diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

6960435G00
ref: 1

CYLINDER ASSY,RR MASTER

€ 254.00

6960035810
ref: 2

PISTON / CUP S

€ 29.00

6969100A00
ref: 3

BOOT

€ 3.50

6969235G00
ref: 4

YOKE

€ 14.00

6967035G00
ref: 5

ROD,PUSH

€ 19.50

5121277500
ref: 6

NUT

€ 5.00

6966937F20
ref: 7

CAP

€ 29.50

6966737F20
ref: 8

DIAPHRAGM

€ 9.00

6968937F30
ref: 9

SCREW

€ 2.50

5974836E00
ref: 10

SEPARATOR

€ 5.00

6974436E00
ref: 11

RING

€ 2.00

0913906139
ref: 12

SCREW(6X16)

€ 3.00

6948035G00
ref: 13
69480-35G01

HOSE,REAR BRAK

€ 90.50

0936010053
ref: 14

BOLT UNION

€ 4.50

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

6119627C30
ref: 16

GUIDE,RR BRAKE

€ 5.50

0214205103
ref: 17
02142-0510B

SCREW

€ 2.50

0920008048
ref: 18

PIN(8X20)

€ 3.00

0916008119
ref: 19
09160-08090

WASHER (8.5X14X1.6)

€ 2.50

0411120158
ref: 20
04111-2015A

PIN

€ 1.50

REAR MASTER CYLINDER

all assemblies
