CRANKCASE

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

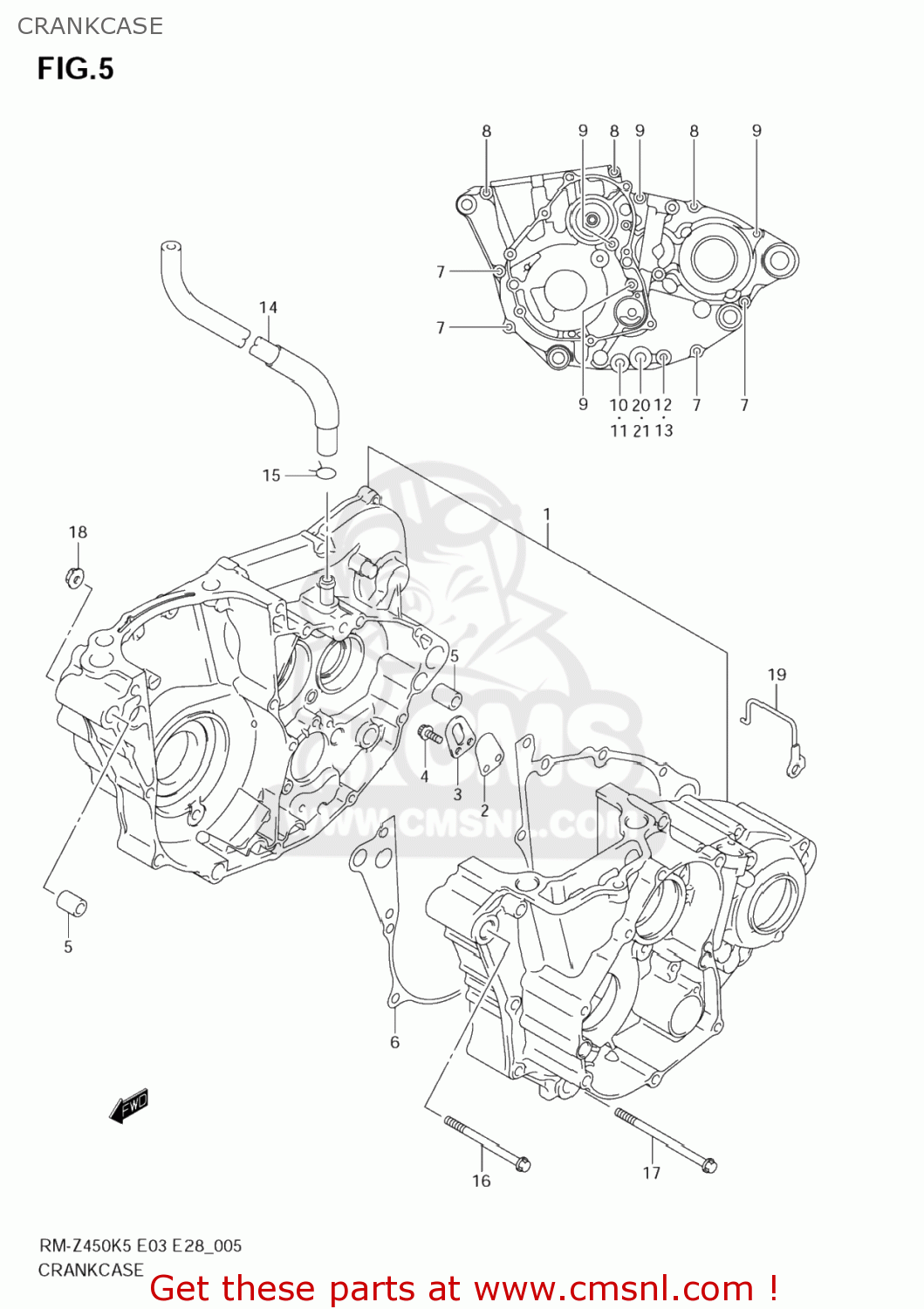

Crankcase diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

CRANKCASE RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450
CRANKCASE RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450
CRANKCASE RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450
prices are in EUR
ref
part #
description
quantity
1-1
1130135811
ref: 1-1
11301-35815
CRANKCASE SET
€ 950.00
1-2
1130235812
ref: 1-2
11302-35813
CRANKCASE SET
€ 608.50
1-3
1130235830
ref: 1-3
CRANKCASE SET
€ 727.50
2
1132235G00
ref: 2
VALVE,CRANKCASE REED
1132235G00
€ 9.00
3
1132335G00
ref: 3
STOPPER,CRANKCASE REED VALVE
1132335G00
€ 8.50
4
0712005123
ref: 4
07120-0512B
BOLT
0712005123
€ 2.00
5
0920613020
ref: 5
PIN(10.4X13X18)
0920613020
€ 2.50
6-1
1148135G10
ref: 6-1
11481-35G11
GASKET,CRANKCASE (NAS)
€ 18.00
6-2
1148135G11
ref: 6-2
GASKET,CRANKCASE (NAS)
1148135G11
€ 18.00
7
0910306243
ref: 7
BOLT(6X55)
0910306243
€ 4.00
8
0910306245
ref: 8
BOLT(6X65)
0910306245
€ 3.00
9
0910306257
ref: 9
BOLT(6X75)
0910306257
€ 4.00
10
0910308043
ref: 10
BOLT(8X45)
0910308043
€ 4.50
11
0916808016
ref: 11
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
12
0910308079
ref: 12
BOLT(8X16)
0910308079
€ 2.50
13
0916808016
ref: 13
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
14
1133235G10
ref: 14
11332-35G11
HOSE,BREATHER
€ 20.50
15
0940113301
ref: 15
CLIP
0940113301
€ 2.00
16-1
0910310141
ref: 16-1
BOLT(10X125)
0910310141
€ 6.00
16-2
0910310403
ref: 16-2
BOLT(10X135)
0910310403
€ 12.00
17-1
0910310127
ref: 17-1
BOLT(10X170)
0910310127
€ 16.00
17-2
0910310399
ref: 17-2
BOLT(10X125)
0910310399
€ 7.00
18
0915910115
ref: 18
NUT
0915910115
€ 4.00
19
1369435G00
ref: 19
GUIDE,CARBURETOR HOSE
1369435G00
€ 6.50
20
1631610H00
ref: 20
16316-10H01
GASKET OILPLUG (NAS)
€ 15.50
21
0916816003
ref: 21
GASKET(16X22X2) (NAS)
0916816003
€ 2.00
