CYLINDER

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

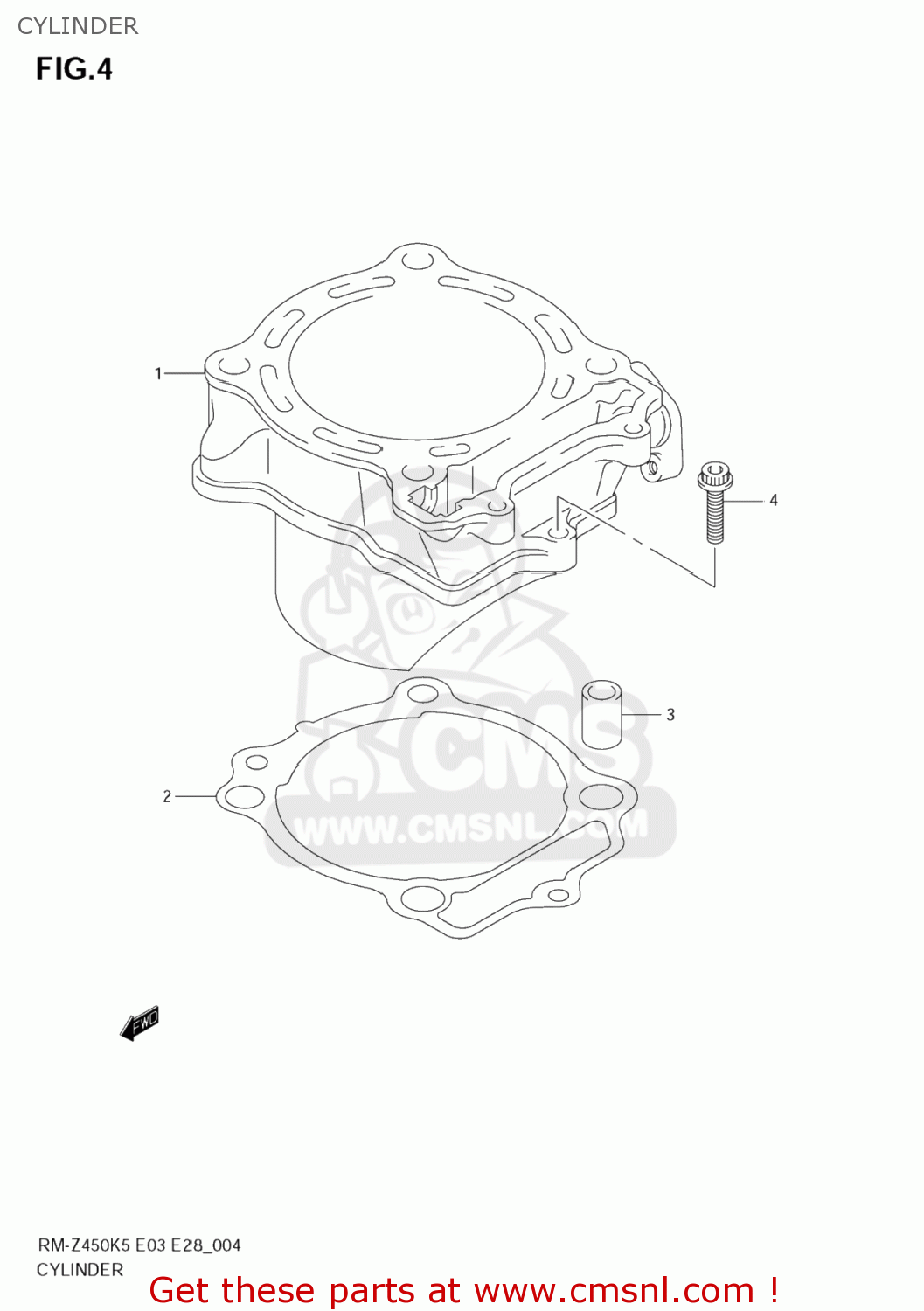

Cylinder diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

CYLINDER RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

CYLINDER RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1-1

1121135G010F0
ref: 1-1

CYLINDER

€ 495.50

1-2

1121135G100F0
ref: 1-2

CYLINDER

€ 446.50

1-3

1121135G200F0
ref: 1-3

CYLINDER

€ 663.00

2

1124135G01
ref: 2

GASKET,CYLINDER (NAS)

€ 12.00

3

0421113189
ref: 3

PIN

€ 2.50

4

0712006303
ref: 4
07120-0630B

BOLT

€ 3.00
