ELECTRICAL

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

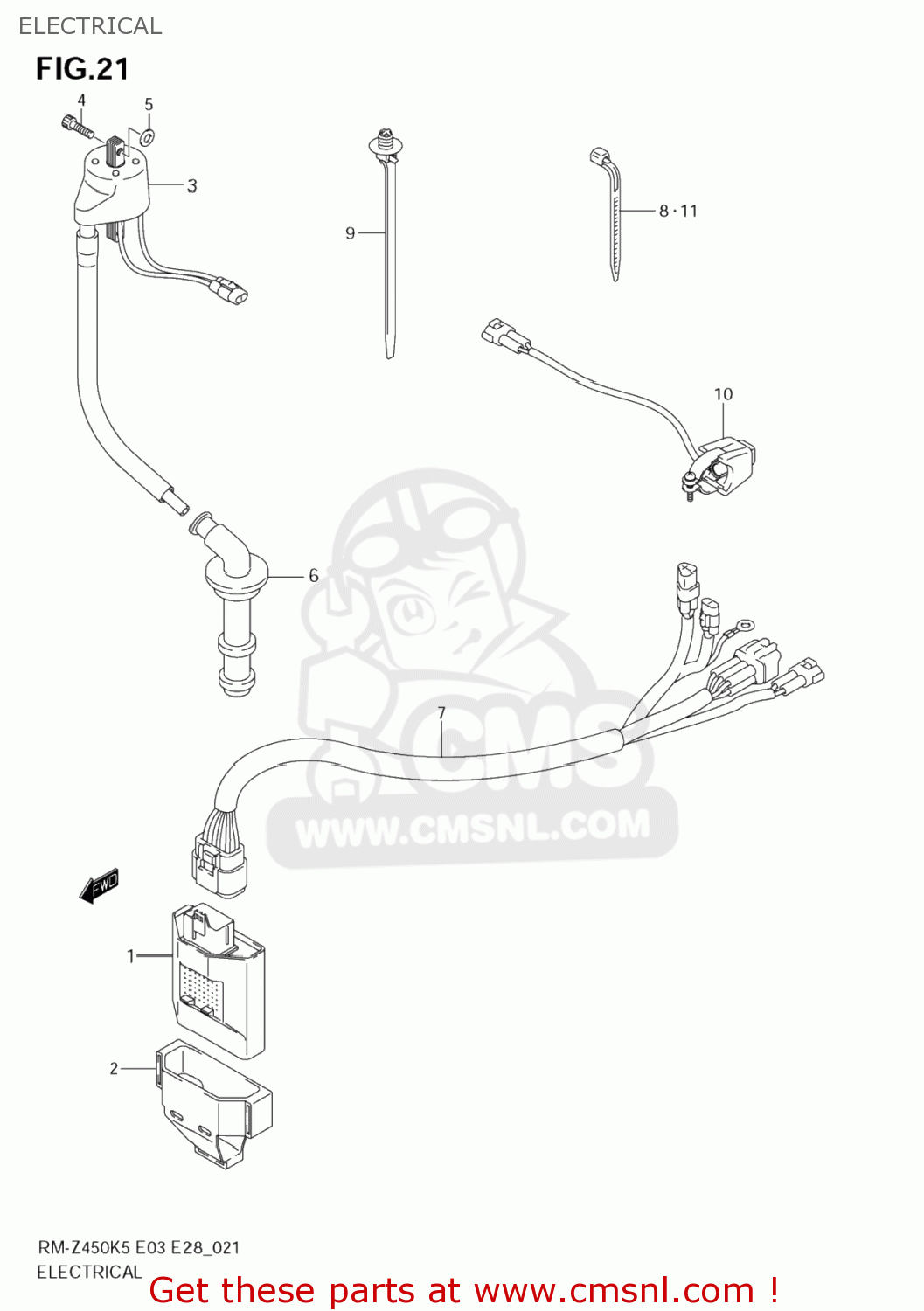

Electrical diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1-1

3290035G00
ref: 1-1

CDI UNIT

€ 354.00

1-2

3290035G10
ref: 1-2

CDI UNIT

€ 354.00

1-3

3290035G20
ref: 1-3

CDI UNIT

€ 520.50

3298037F00
ref: 2

CUSHION,CDI UNIT

€ 8.50

3341035G10
ref: 3

COIL ASSY,IGNITION

€ 78.50

0713006203
ref: 4
07130-0620B

BOLT,CRKCASE,R

€ 3.00

0916006028
ref: 5

WASHER(6.5X18X1)

€ 1.50

3351035G00
ref: 6

CAP ASSY,SPARK PLUG

€ 43.50

7-1

3661035G00
ref: 7-1

HARNESS,WIRING

€ 88.00

7-2

3661035G10
ref: 7-2

HARNESS,WIRING

€ 124.50

8-1

0940711401
ref: 8-1

CLAMP(L:95)

€ 2.50

8-2

0940714403
ref: 8-2

CLAMP(L:125)

€ 2.50

0940717403
ref: 9

CLAMP(L:154)

€ 5.50

3782036E00
ref: 10

SWITCH ASSY,ENGINE STOP

€ 21.00

11-1

0940711401
ref: 11-1

CLAMP(L:95)

€ 2.50

11-2

0940714403
ref: 11-2

CLAMP(L:125)

€ 2.50

ELECTRICAL

all assemblies
