FRONT FENDER

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

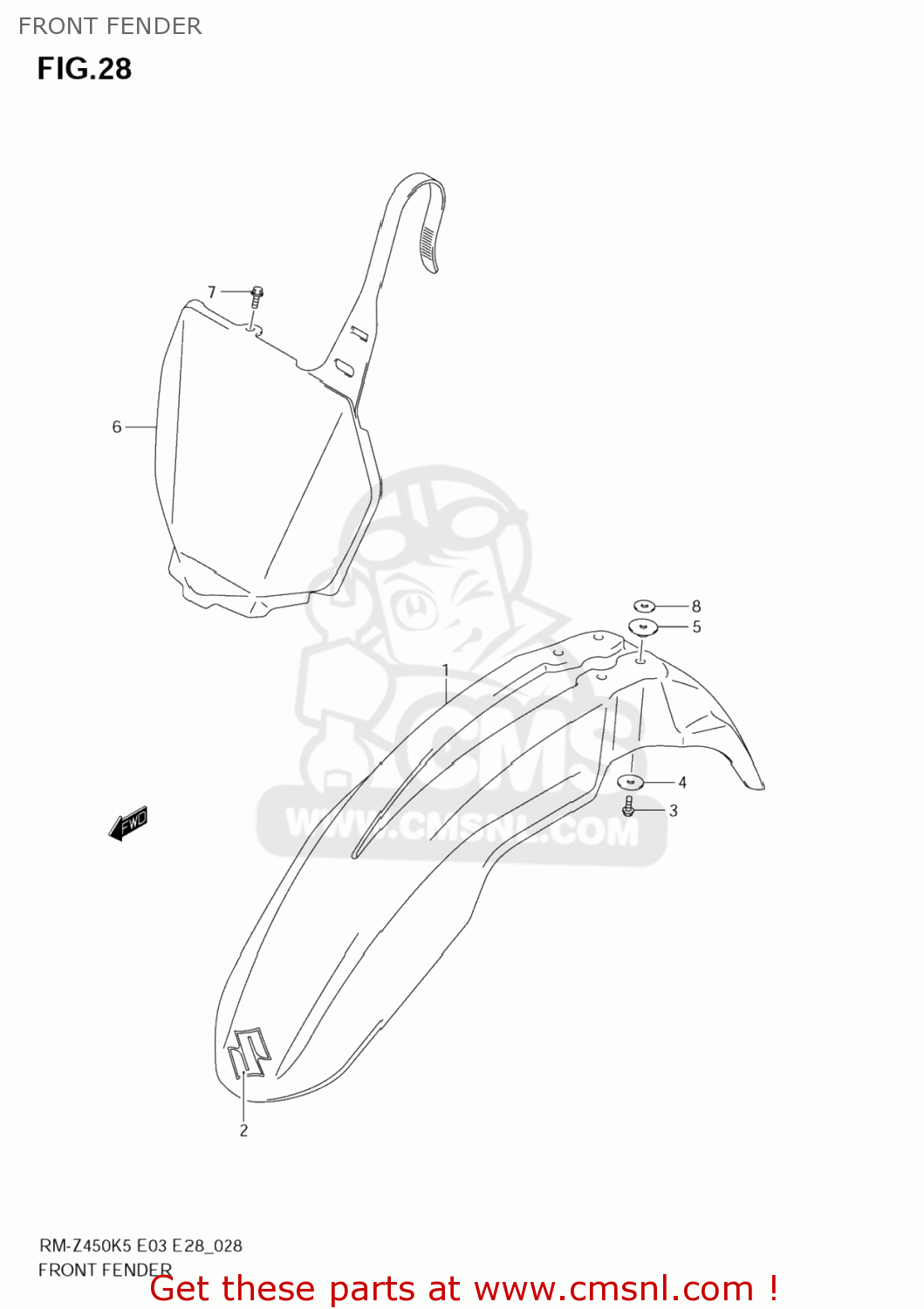

Front fender diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

FRONT FENDER RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

FRONT FENDER RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

5311137F01YU1
ref: 1

FENDER,FR

€ 114.00

2-1

6815137F00AZT
ref: 2-1

EMBLEM,S

€ 23.00

2-2

6815137F10CFM
ref: 2-2

EMBLEM,S

€ 23.00

3

0154706163
ref: 3
01547-0616B

BOLT

€ 2.50

4

0916006136
ref: 4

WASHER(6.5X28X1.6)

€ 2.50

5

0916906078
ref: 5

WASHER

€ 3.00

6-1

9491137F0130H
ref: 6-1
94911-37F02-30H

PLATE,FRONT NU

€ 48.50

6-2

9491137F0230H
ref: 6-2

PLATE,NUMBER FR

€ 48.50

7

0910306233
ref: 7

BOLT(6X12)

€ 2.00

8-1

0916006027
ref: 8-1
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

8-2

0916006077
ref: 8-2

WASHER(6.5X20X1.2)

€ 2.00
