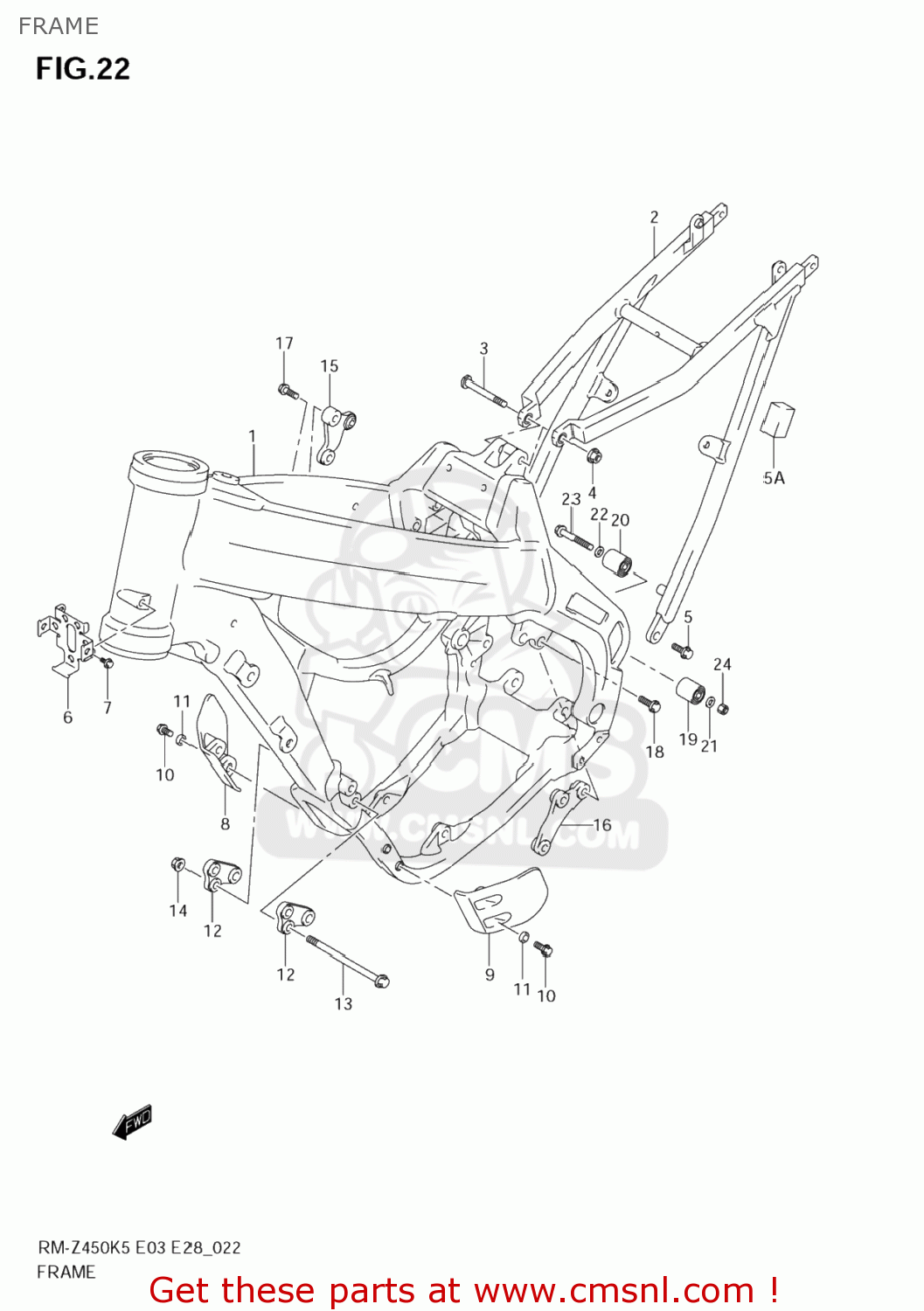

FRAME

ref

part #

description

quantity

1-1

4110035G00
ref: 1-1

FRAME

€ 1,597.00

1-2

4110035G10
ref: 1-2

FRAME

€ 1,583.00

1-3

4110035G20
ref: 1-3

FRAME

€ 1,583.00

2-1

4120035G00
ref: 2-1
41200-35G10

RAIL COMP,SEAT

€ 417.00

2-2

4120035G10
ref: 2-2

RAIL,SEAT

€ 417.00

2-3

4120035G20
ref: 2-3

RAIL,SEAT

€ 417.00

3

0911908095
ref: 3

BOLT

€ 3.50

4

0831931088
ref: 4
08319-3108A

NUT

€ 2.50

5

0910408037
ref: 5

BOLT(8X19.5)

€ 3.50

5A

6311535G10
ref: 5A

CUSHION,SEAT RAIL

€ 3.50

6

4134735G00
ref: 6

BRACKET,CDI

€ 10.00

7

0910306256
ref: 7

BOLT(6X10)

€ 2.00

8

4252035G00
ref: 8

PROTECTOR,FR,R

€ 18.00

9

4253035G00
ref: 9

PROTECTOR,FR,L

€ 18.00

10-1

0910306234
ref: 10-1

BOLT(6X16)

€ 2.50

10-2

0911606200
ref: 10-2

BOLT(6X16)

€ 3.00

11

0916006079
ref: 11
09160-06052

WASHER(6.5X16X1.2)

€ 2.00

12-1

4199135G00
ref: 12-1

BRACKET,ENGINE MOUNTING FR

€ 31.50

12-2

4199135G11
ref: 12-2

BRACKET,MOUNTING FR

€ 31.50

12-3

4199135G20
ref: 12-3

BRACKET,ENGINE MOUNTING FR

€ 34.50

13-1

0910308402
ref: 13-1

BOLT(8X125)

€ 5.50

13-2

0910308424
ref: 13-2

BOLT(8X131)

€ 4.50

14

0915908067
ref: 14

NUT

€ 5.50

15-1

4199335G00
ref: 15-1
41993-35G01

BRACKET,ENG MT

€ 56.00

15-2

4199335G01
ref: 15-2

BRACKET,MOUNT UPR,R

€ 56.00

16

4199435G00
ref: 16

BRACKET,ENGINE MOUNTING UPR,L

€ 70.50

17

0910308404
ref: 17

BOLT(8X21)

€ 3.00

18

0910308385
ref: 18

BOLT(8X16)

€ 3.50

19

4391035G00
ref: 19

ROLLER,CHAIN

€ 38.00

20

4391037F00
ref: 20

ROLLER,CHAIN

€ 31.50

21

0918108111
ref: 21

SHIM(8X12X1)

€ 2.00

22

0918108167
ref: 22

SHIM(8X16X1)

€ 2.00

23

0910308207
ref: 23

BOLT(8X45)

€ 2.00

24

0831921088
ref: 24
08319-2108A

NUT

€ 1.50
