LABEL
RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

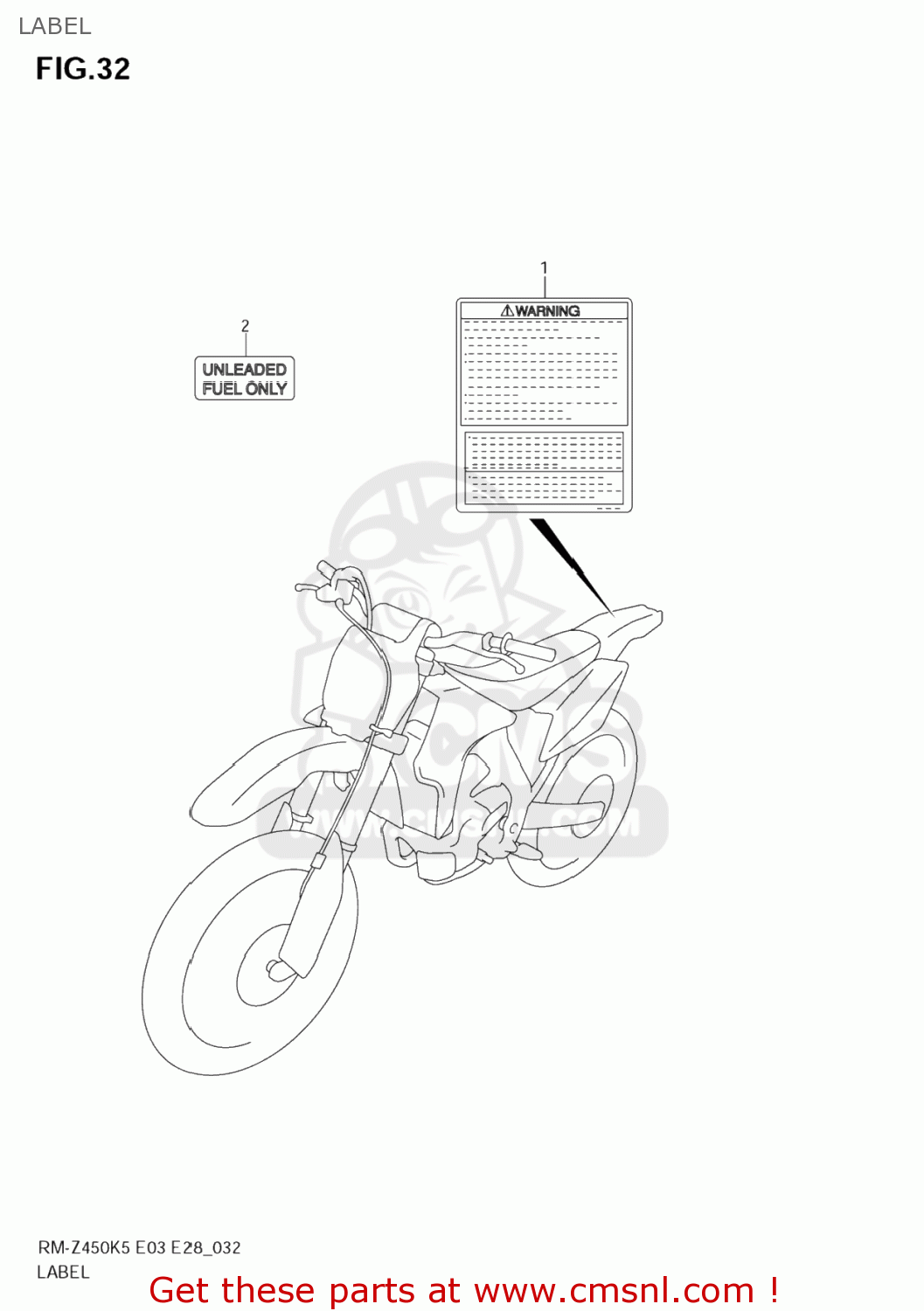

Label diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450
LABEL RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450
×
prices are in EUR
ref
part #
description
quantity
1-1
6892137F00
ref: 1-1
LABEL,WARNING
€ 0.00
1-2
6892137F70
ref: 1-2
LABEL,WARNING
€ 7.50
1-3
6892137F80
ref: 1-3
LABEL,WARNING
€ 8.00
2
6862301B00
ref: 2
LABEL,UNLEADED FUEL
€ 3.50
3-1
9901135G5003A
ref: 3-1
MANUAL,OWNER'S
€ 0.00
3-10
9901135G5201A
ref: 3-10
MANUAL,OWNER'S
€ 16.50
3-11
9901135G5201F
ref: 3-11
MANUAL,OWNER'S
€ 13.50
3-11
9901135G5201F
ref: 3-11
MANUAL,OWNER'S
€ 13.50
3-2
9901135G5001A
ref: 3-2
MANUAL,OWNER'S
€ 16.50
3-3
9901135G5001F
ref: 3-3
MANUAL,OWNER'S
€ 16.50
3-4
9901135G5001K
ref: 3-4
MANUAL,OWNER'S
€ 16.50
3-5
9901135G5103A
ref: 3-5
MANUAL,OWNER'S
€ 0.00
3-6
9901135G5101A
ref: 3-6
MANUAL,OWNER'S
€ 15.00
3-7
9901135G5101F
ref: 3-7
MANUAL,OWNER'S
€ 20.00
3-8
9901135G5101K
ref: 3-8
MANUAL,OWNER'S
€ 16.50
3-9
9901135G5203A
ref: 3-9
MANUAL,OWNER'S
€ 0.00
