FRAME COVER

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

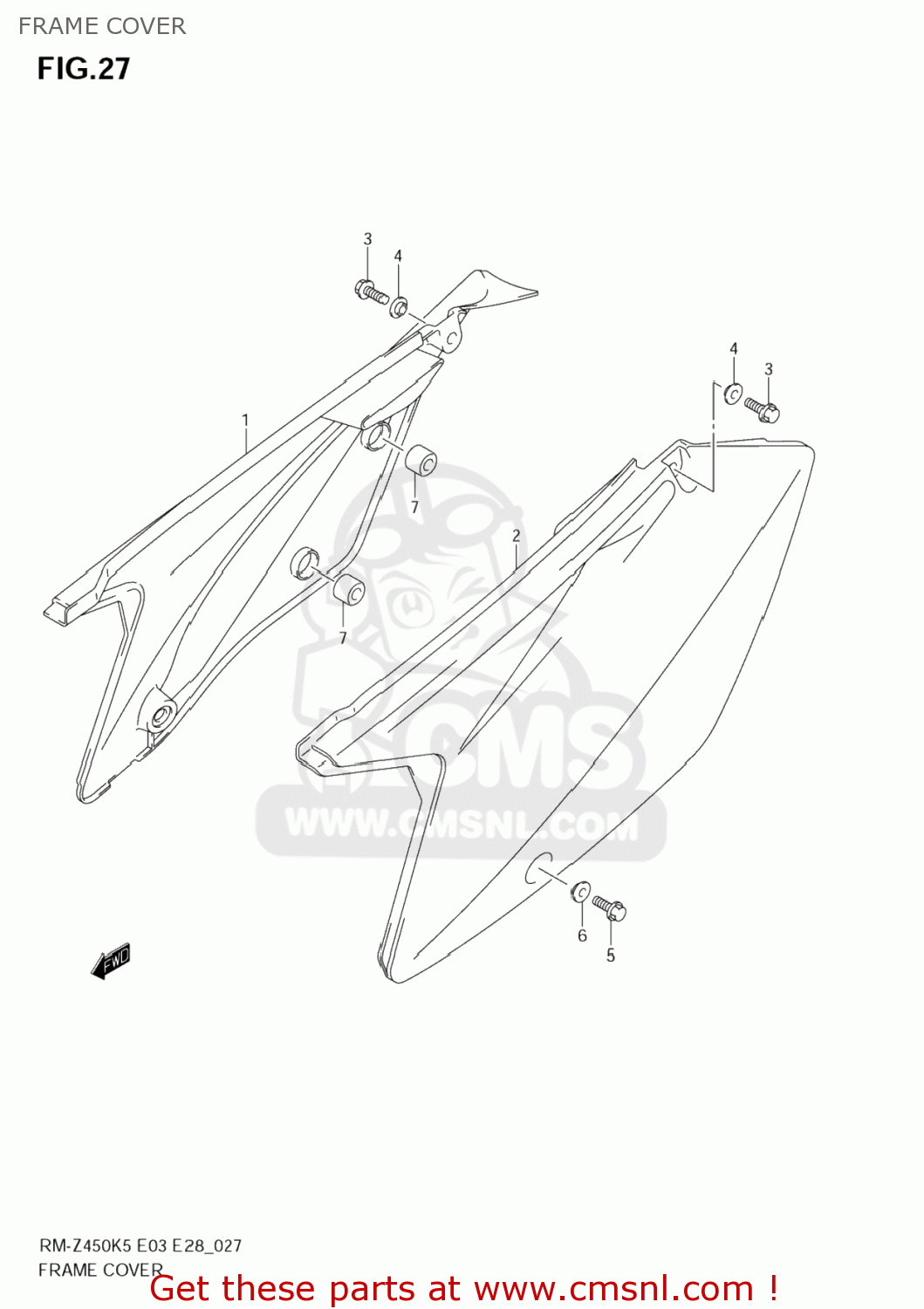

Frame cover diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

FRAME COVER RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

FRAME COVER RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1-1

4711135G0030H
ref: 1-1

COVER,FRAME,R(WHITE)

€ 35.00

1-2

4711135G1030H
ref: 1-2

COVER,FRAME,R(WHITE)

€ 76.00

2-1

4721135G0030H
ref: 2-1

COVER,FRAME,L(WHITE)

€ 37.50

2-2

4721135G1030H
ref: 2-2

COVER,FRAME,L(WHITE)

€ 76.00

3

0910306234
ref: 3

BOLT(6X16)

€ 2.50

4

6923237F00
ref: 4
69232-37F01

WASHER,RR BRAK

€ 7.50

5

0910306234
ref: 5

BOLT(6X16)

€ 2.50

6

6923237F00
ref: 6
69232-37F01

WASHER,RR BRAK

€ 7.50

7

4716137F00
ref: 7

CUSHION,FRAME COVER,R

€ 6.00
